F3 key "SWAP"
The F3 key "SWAP" switches the cursors back and forth
between
different channels.
After starting
up, in dual-
channel mode both cursors are in channel 1. The amplitude
display is set to DELTA measurement for this channel. By
pressing F3, the display mode can be changed for each
channel, referenced to the baseline. The cursors change
channel in a certain predefined sequence. SWAP can only
be used on the active cursor.

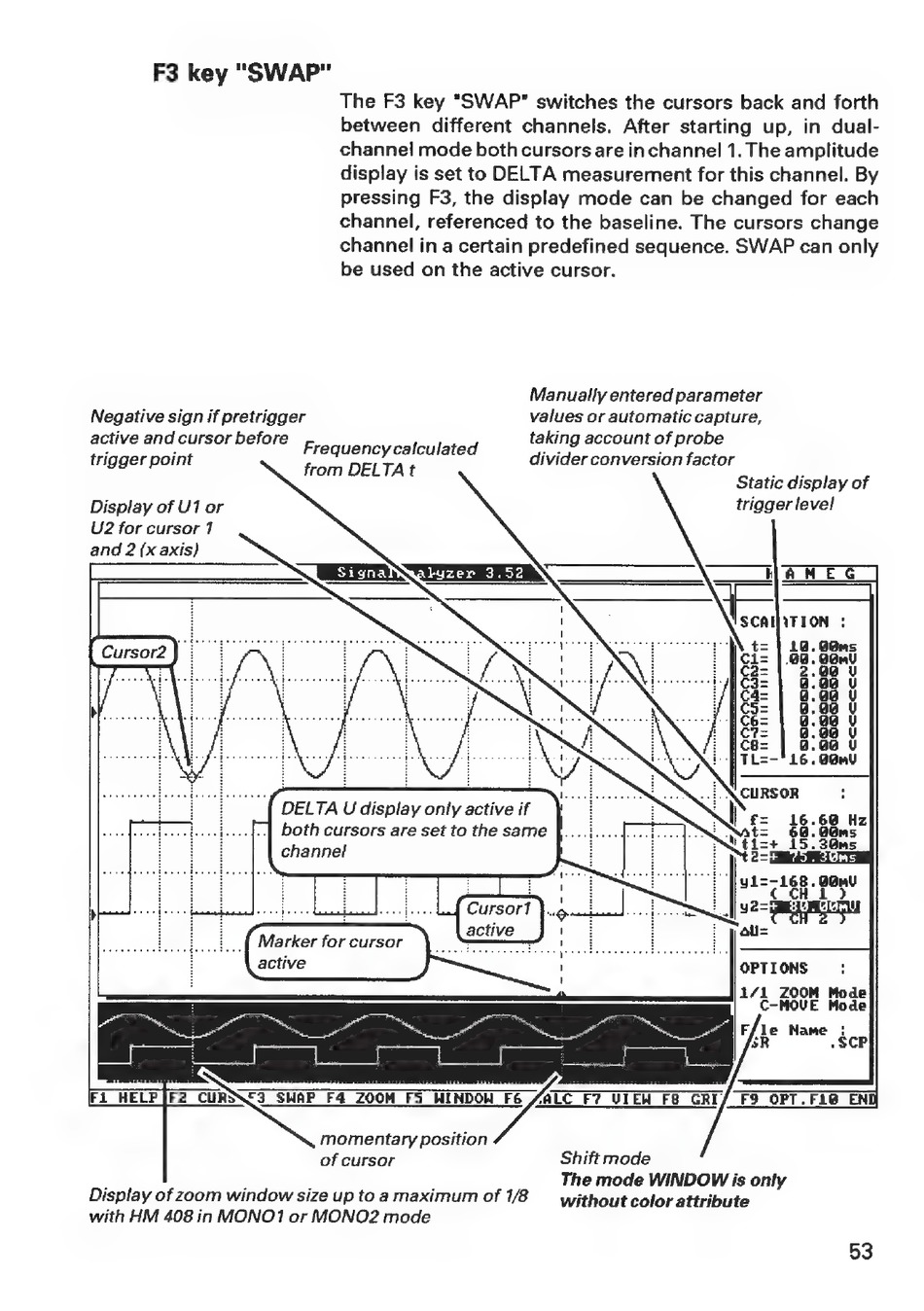

Manually entered parameter
Negative sign if pretrigger
values or automatic capture,
active and cursor before
taking account of probe
trigger point
Frequency calculated
divider conversion factor
ie
Static display of
Display of U7 or
trigger level
U2 for cursor 17
and 2 (x axis)
Cursor2
al
a
/ ~
DELTA U display only active if
both cursors are set to the same
channel
OPTIONS
1/1
ZOOM
Mode
C-MOVE
Mode
Fi
HELP
(F2 CURSNS3
SWAP
F4 200M
FS WINDOW
F6
AALC
F? VIEW
F8 GRI¥
momentary position
of cursor
Shift mode
.
;
;
The mode WINDOW is only
Display of zoom window size up to a maximum of 1/8
without color attribute
with HM 408 in MONO1 or MONO2 mode
53
