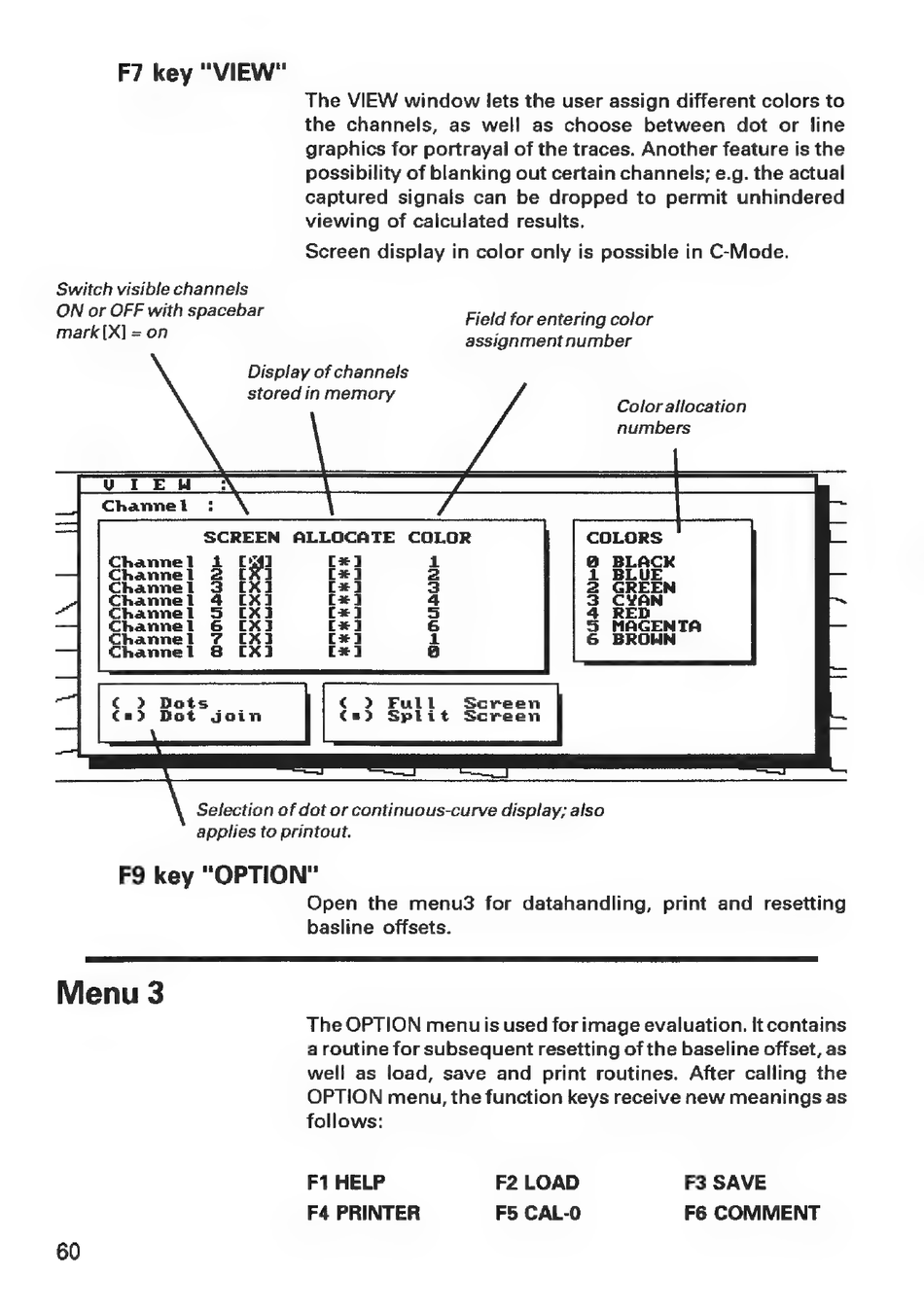

F7 key "VIEW"
The VIEW window lets the user assign different colors to
the channels, as well as choose between dot or line
graphics for portrayal of the traces. Another feature is the
possibility of blanking out certain channels; e.g. the actual
captured signals can be dropped to permit unhindered
viewing of calculated results.
Screen display in color only is possible in C-Mode.
Switch visible channels
ON or OFF with spacebar
AIM Son Field for entering color
assignment number
Display of channels
stored in memory
Color allocation
Channel
SCREEN ALLOCATE COLOR
Channel
Channel
Channel
Channel
Channel
Channel
Channel
Channel
CONUS ARARRRAR KKM KK RES Need a dl hl le RIMmimemcim
Ooi OK ee oo eal
al ad ed Lad
SeuviawNe
Screen
Screen
Selection of dot or continuous-curve display; also
applies to printout.
F9 key "OPTION"
Open the menu3 for datahandling, print and resetting
basline offsets.
Menu 3
The OPTION menu is used for image evaluation. It contains
a routine for subsequent resetting of the baseline offset, as
well as load, save and print routines. After calling the
OPTION menu, the function keys receive new meanings as
follows:
F1 HELP F2 LOAD F3 SAVE
F4 PRINTER F5 CAL-0 F6 COMMENT
