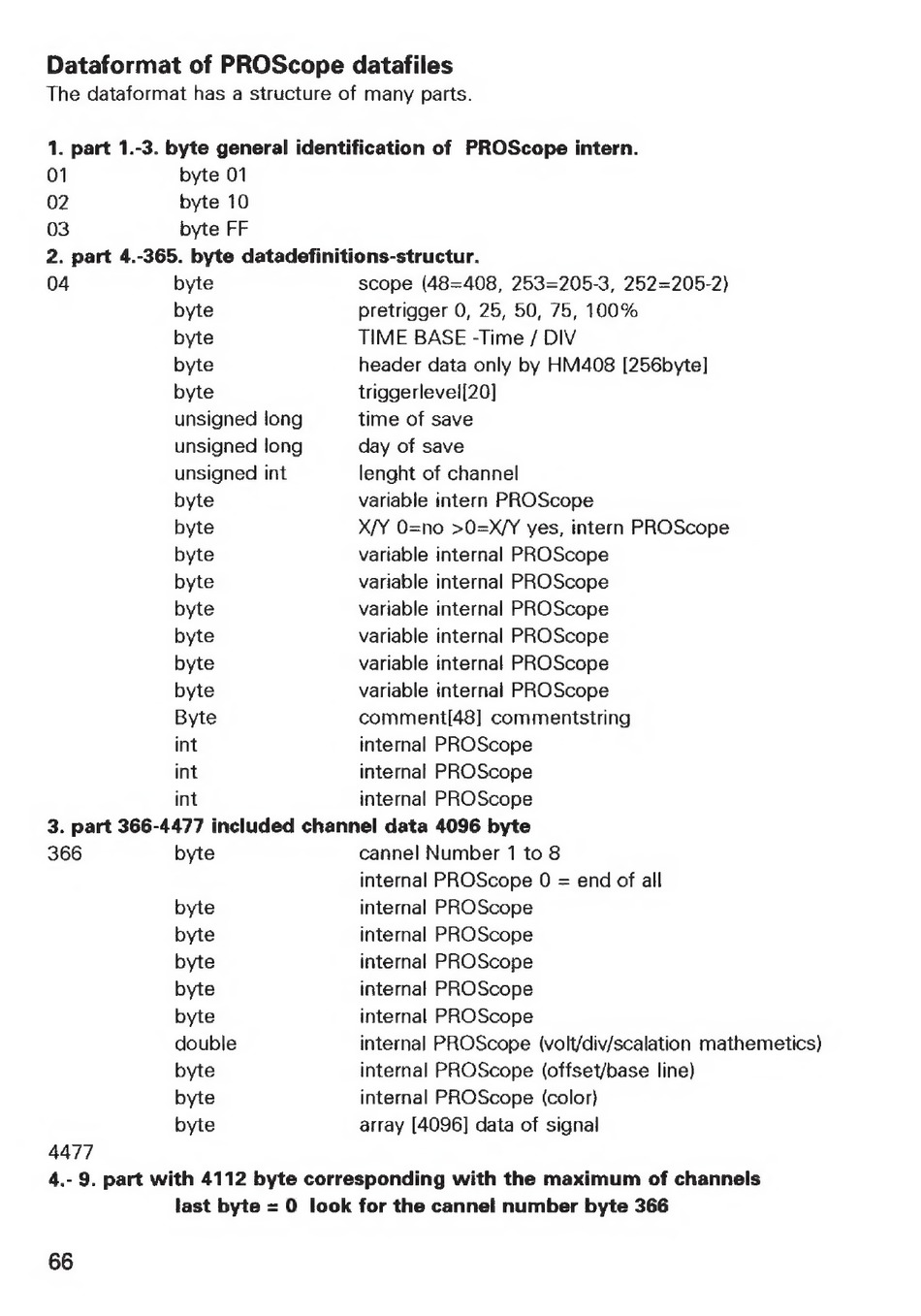

Dataformat of PROScope datafiles
The dataformat has a structure of many parts.
1. part 1.-3. byte general identification of PROScope intern.
2. part 4.-365. byte datadefinitions-structur.
01 byte 01
02 byte 10
03 byte FF
04 byte
byte
byte
byte
byte
unsigned long
unsigned long
unsigned int
byte
byte
byte
byte
byte
byte
byte
byte
Byte
int
int
int
scope (48=408, 253=205-3, 252=205-2)
pretrigger 0, 25, 50, 75, 100%
TIME BASE -Time / DIV
header data only by HM408 [256byte]
triggerlevel[20]
time of save
day of save
lenght of channel
variable intern PROScope
X/Y 0=no >0=X/Y yes, intern PROScope
variable internal PROScope
variable internal PROScope
variable internal PROScope
variable internal PROScope
variable internal PROScope
variable internal PROScope
comment[48] commentstring
internal PROScope
internal PROScope
internal PROScope
3. part 366-4477 included channel data 4096 byte
366 byte
byte
byte
byte
byte
byte
double
byte
byte
byte
4477
cannel Number 1 to 8
internal PROScope 0 = end of all
internal PROScope
internal PROScope
internal PROScope
internal PROScope
internal PROScope
internal PROScope (volt/div/scalation mathemetics)
internal PROScope (offset/base line)
internal PROScope (color)
array [4096] data of signal
4.- 9. part with 4112 byte corresponding with the maximum of channels
last byte = 0 look for the cannel number byte 366
