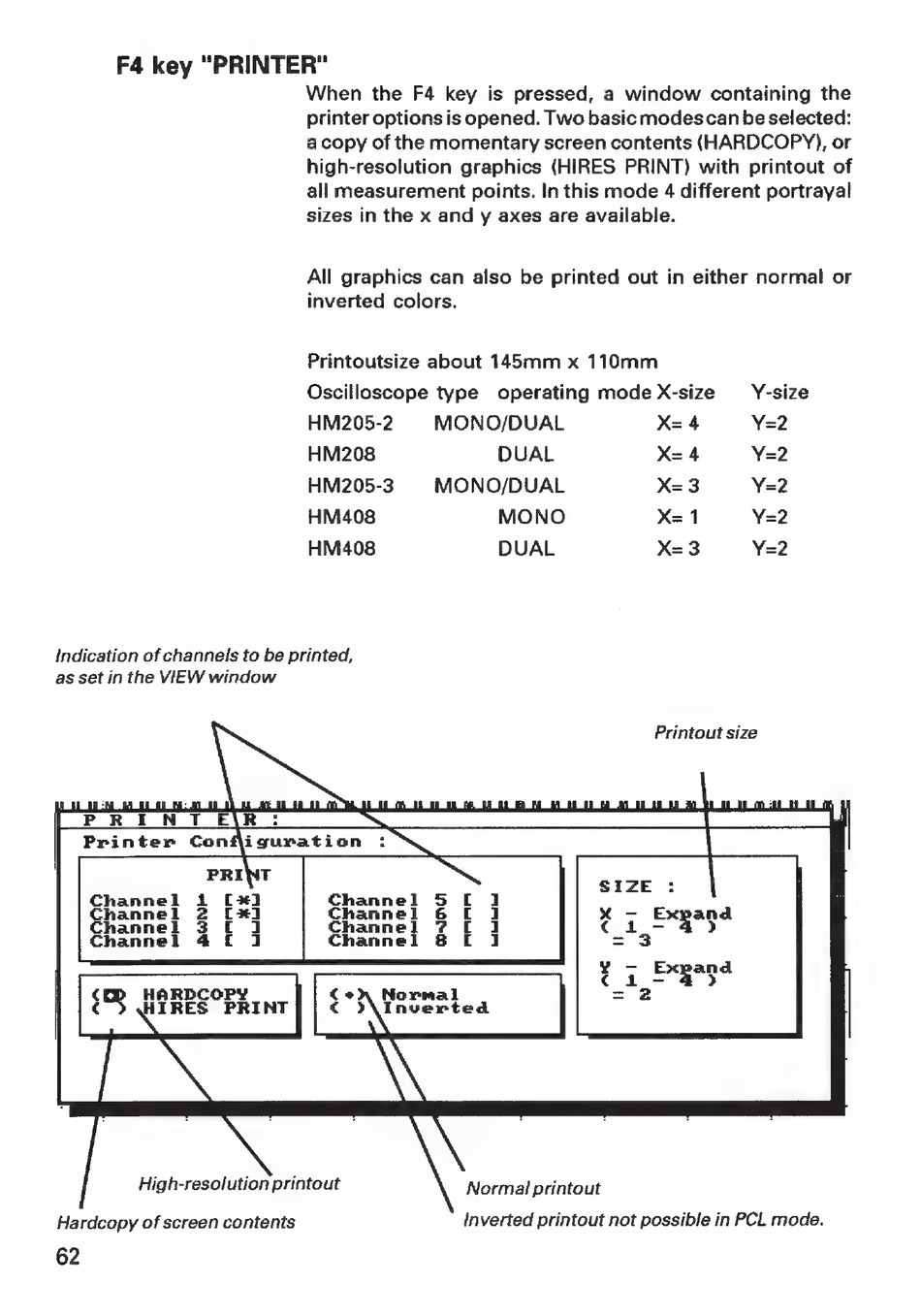

F4 key "PRINTER"
When the F4 key is pressed, a window containing the
printer options is opened. Two basic modescan be selected:
a copy of the momentary screen contents (HARDCOPY), or
high-resolution graphics (HIRES PRINT) with printout of
all measurement points. In this mode 4 different portrayal
sizes in the x and y axes are available.
All graphics can also be printed out in either normal or
inverted colors.
Printoutsize about 145mm x 110mm
Oscilloscope type
operating mode X-size
_Y-size
HM205-2
MONO/DUAL
X= 4
Y=2
HM208
DUAL
X= 4
Y=2
HM205-3
MONO/DUAL
X=3
Y=2
HM408
MONO
X= 1
Y=2
HM408
DUAL
X= 3
Y=2
Indication of channels to be printed,
as set in the VIEW window
Printout size
I
pe
aed
Z
A
on
ur
ie
ae
wi
TE.
(ni
ul
igqguration
:
\
High-resolution printout
Normal printout
Hardcopy of screen contents
Inverted printout not possible in PCL mode.
