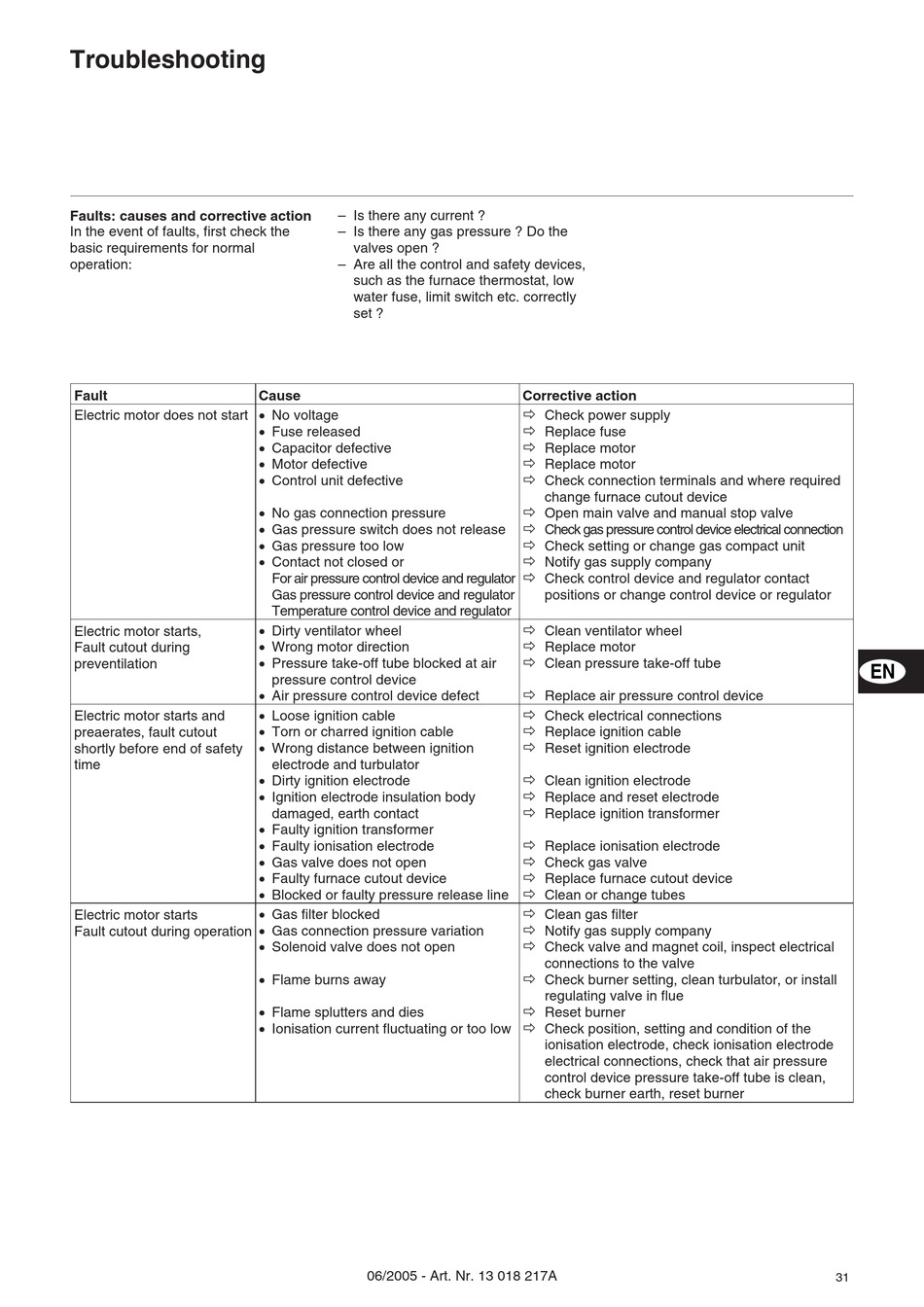

Troubleshooting
Faults: causes and corrective action
In the event of faults, first check the
basic requirements for normal
operation:
Fault
Electric motor does not start · No voltage
Electric motor starts,
Fault cutout during
preventilation
Electric motor starts and
preaerates, fault cutout
shortly before end of safety
time
Electric motor starts
Fault cutout during operation
– Is there any current ?
– Is there any gas pressure ? Do the
valves open ?
– Are all the control and safety devices,
such as the furnace thermostat, low
water fuse, limit switch etc. correctly
set ?
Cause
· Fuse released
· Capacitor defective
· Motor defective
· Control unit defective
· No gas connection pressure
· Gas pressure switch does not release
· Gas pressure too low
· Contact not closed or
For air pressure control device and regulator
Gas pressure control device and regulator
Temperature control device and regulator
· Dirty ventilator wheel
· Wrong motor direction
· Pressure take-off tube blocked at air
pressure control device
· Air pressure control device defect
· Loose ignition cable
· Torn or charred ignition cable
· Wrong distance between ignition
electrode and turbulator
· Dirty ignition electrode
· Ignition electrode insulation body
damaged, earth contact
· Faulty ignition transformer
· Faulty ionisation electrode
· Gas valve does not open
· Faulty furnace cutout device
· Blocked or faulty pressure release line
· Gas filter blocked
· Gas connection pressure variation
· Solenoid valve does not open
· Flame burns away
· Flame splutters and dies
· Ionisation current fluctuating or too low
06/2005 - Art. Nr. 13 018 217A
Corrective action
ð
Check power supply
ð
Replace fuse
ð
Replace motor
ð
Replace motor
ð
Check connection terminals and where required
change furnace cutout device
ð
Open main valve and manual stop valve
ð
Check gas pressure control device electrical connection
ð
Check setting or change gas compact unit
ð
Notify gas supply company
ð
Check control device and regulator contact
positions or change control device or regulator
ð
Clean ventilator wheel
ð
Replace motor
ð
Clean pressure take-off tube
ð
Replace air pressure control device
ð
Check electrical connections
ð
Replace ignition cable
ð
Reset ignition electrode
ð
Clean ignition electrode
ð
Replace and reset electrode
ð
Replace ignition transformer
ð
Replace ionisation electrode
ð
Check gas valve
ð
Replace furnace cutout device
ð
Clean or change tubes
ð
Clean gas filter
ð
Notify gas supply company
ð
Check valve and magnet coil, inspect electrical
connections to the valve
ð
Check burner setting, clean turbulator, or install
regulating valve in flue
ð
Reset burner
ð
Check position, setting and condition of the
ionisation electrode, check ionisation electrode
electrical connections, check that air pressure
control device pressure take-off tube is clean,
check burner earth, reset burner
EN
31
