HANDLING AND INSTALLATION
: Before doing any work,
WARNING
cut off the mains electricity supply.
The manufacturer has tested the appliance
with its own mains gas, identifi ed by the sticker
applied to the nameplate.
If the type of gas to be connected is diff erent
from that used for testing, proceed as follows.
Turn off the gas supply tap (A).
)
) Disconnect the electricity supply.
) Replace the burner nozzle (see page 15).
) Replace the pilot light injector (see page 16).
) Adjust the minimum setting on the gas con-
trol valves (see page 13-14).
)
If necessary, adjust the burner primary air
(see page 14).

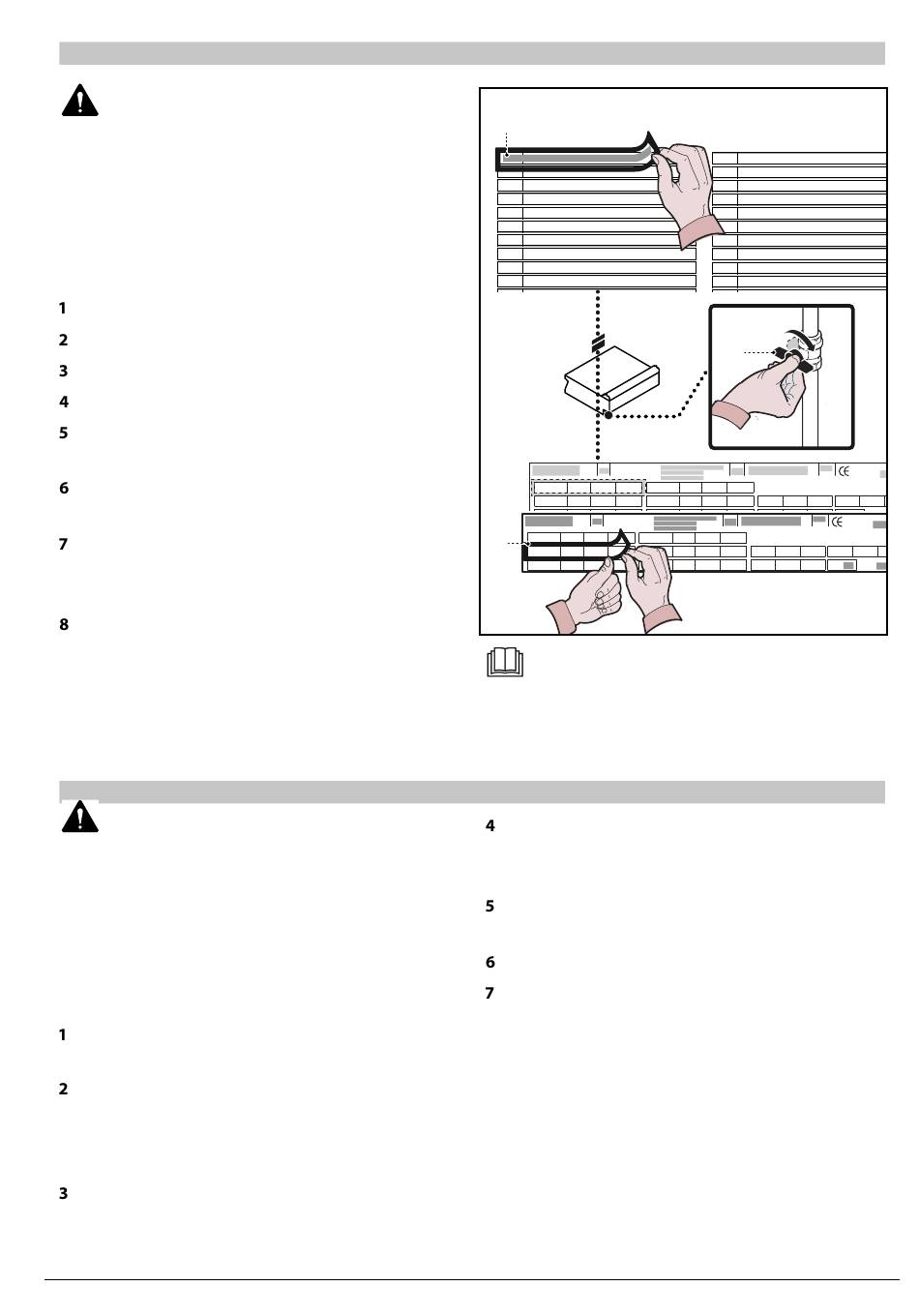

) Remove the testing gas sticker from the
nameplate (B) and apply the new one to iden-
tify the gas being used.
) Remove the sticker from the appliance and
apply the new one (C) with the category of
the country of installation.
: Before it is put into ser-
WARNING
vice, the system must be tested to check the
operating conditions of every single compo-
nent and identify any malfunctions. In this
stage, it is important to check that all health
and safety requirements have been com-
plied with in full.
To test the system, make the following checks:
) Turn on the gas supply tap and check that
the connections are right;
) Check that the mains gas is the same as that
used for commissioning of the appliance,
and carry out the conversion procedure if
necessary (see page12).
) Check that the plate, top and oven burners
are lighting and burning correctly;
3320091_inst_GB
CONVERSION OF GAS SUPPLY
tion, make sure that there are no gas leaks
or malfunctions.
TESTING OF THE APPLIANCE
After testing, if necessary instruct the user in all
the skills necessary for putting the appliance
into operation in conditions of safety, in accor-
dance with legal requirements
C
AL II2H3B/P: G20/20mbar, G30/30mbar
AL II2H3+: G20/20mbar, G30-G31/28_30-37mbar
3P
AT II2H3B/P: G20/20mbar, G30/50mbar
AT II2H3P: G20/20mbar, G31/50mbar
BE II2E+3+: G20-G25/20-25mbar, G30-G31/28_30-37mbar
BE II2E+3B/P: G20-G25/20-25mbar, G30/30mbar
BE II2E+3P: G20-G25/20-25mbar, G31/37mbar
BE II2E+3B: G20-G25/20-25mbar, G30/30mbar
BG II2H3B/P: G20/20mbar, G30/30mbar
BG II2H3+: G20/20mbar, G30-G31/28_30-37mbar
CH II2H3+: G20/20mbar, G30-G31/28_30-37mbar
G20 kW m3/h mbar G31
G25 kW m3/h mbar
G30 kW Kg/h mbar
G20 m3/h mbar G31
kW
B
G25 m3/h mbar
kW
G30 kW mbar
Kg/h
: On completion of the opera-
NOTE
)
Check the gas pressure and fl ow-rate at mini-
mum and maximum settings and adjust if
necessary (see page 6 );
)
Check that the safety thermocouple is work-
ing correctly;
) Check that there are no gas leaks;
) Check that the nameplates specify the cor-
rect gas for the country of use.
ENGLISH
IS II2H3B/P: G20/20mbar, G30/30mbar
IS II2H3+: G20/20mbar, G30-G31/28_30-37mba
IT II2H3+: G20/20mbar, G30-G31/28_30-37mba
IT II2H3B/P: G20/20mbar, G30/30mbar
IT II2H3P: G20/20mbar, G31/37mbar
LT II2H3+: G20/20mbar, G30-G31/28_30-37mba
LT II2H3B/P: G20/20mbar, G30/30mbar
LT II2H3P: G20/20mbar, G31/37mbar
LU II2H3B/P: G20/20mbar, G30/30mbar
LU II2H3+: G20/20mbar, G30-G31/28_30-37mba
LV II2H3B/P: G20/20mbar, G30/30mbar
A
01
0051
kW mbar
Kg/h
~
~
TYPE
01
0051
mbar
kW Kg/h
~ ~
~
TYPE
13
