Fitting The Panels - Wellsystem Relax Montageanweisung

Assembly
10/2017
6.14

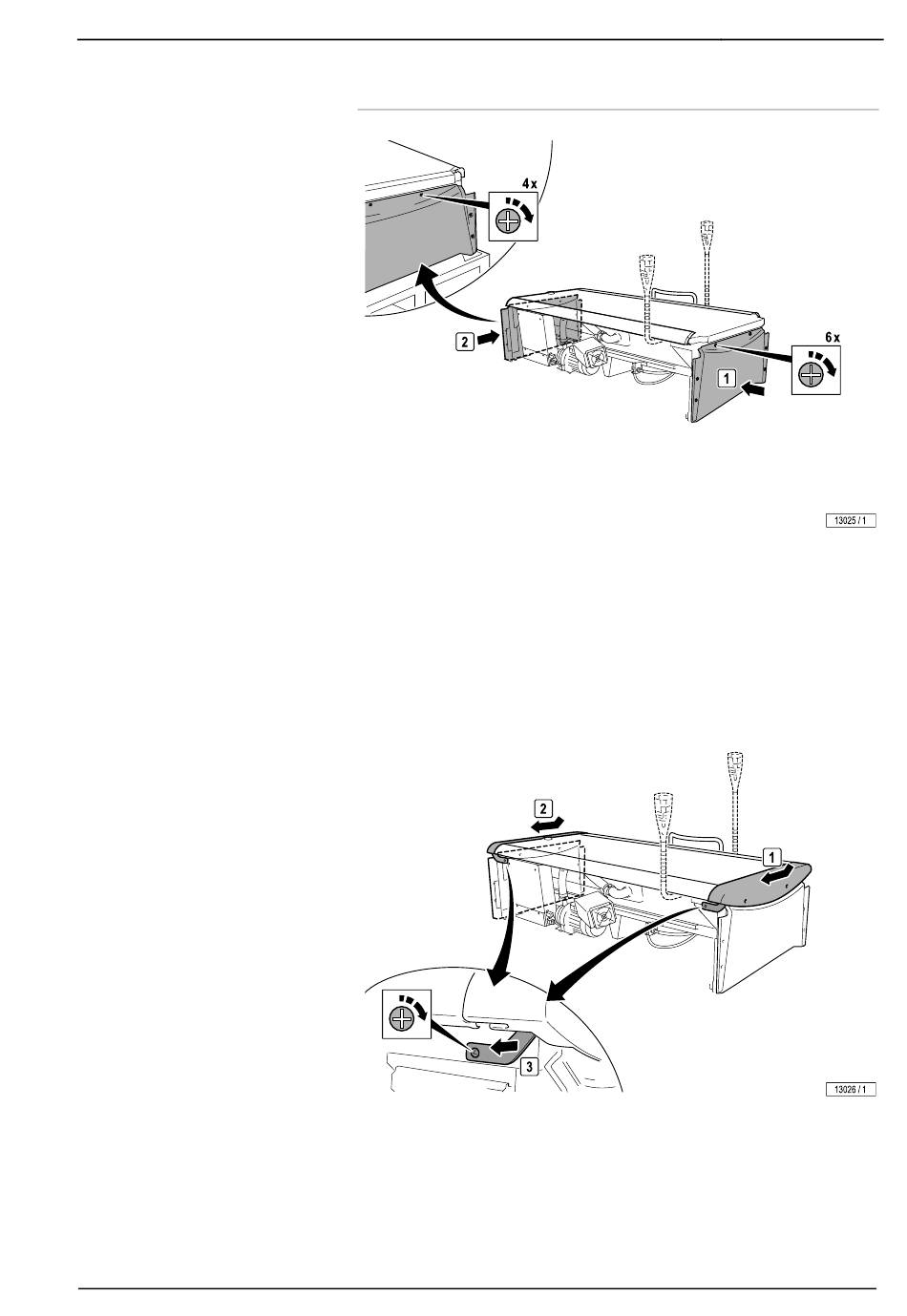

Fitting the panels

– Fit the panel at the head end and insert and tighten up the 6 x screws
(M6 x 16).
– Slide the panel in sideways in the guides at the feet end. Insert and
tighten up the 4 x screws (M6 x 16).
Tool: No. 2 Philips screwdriver or battery-powered screwdriver with PHZ-bit 2
– Fit the panels.
– Fit the 2 x screws (M6 x 16) plus locking washers and tighten up.
Tool: No. 2 Philips screwdriver or battery-powered screwdriver with PHZ-bit 2
Installation instructions 51/68
