44/68
1009892-04
6.8

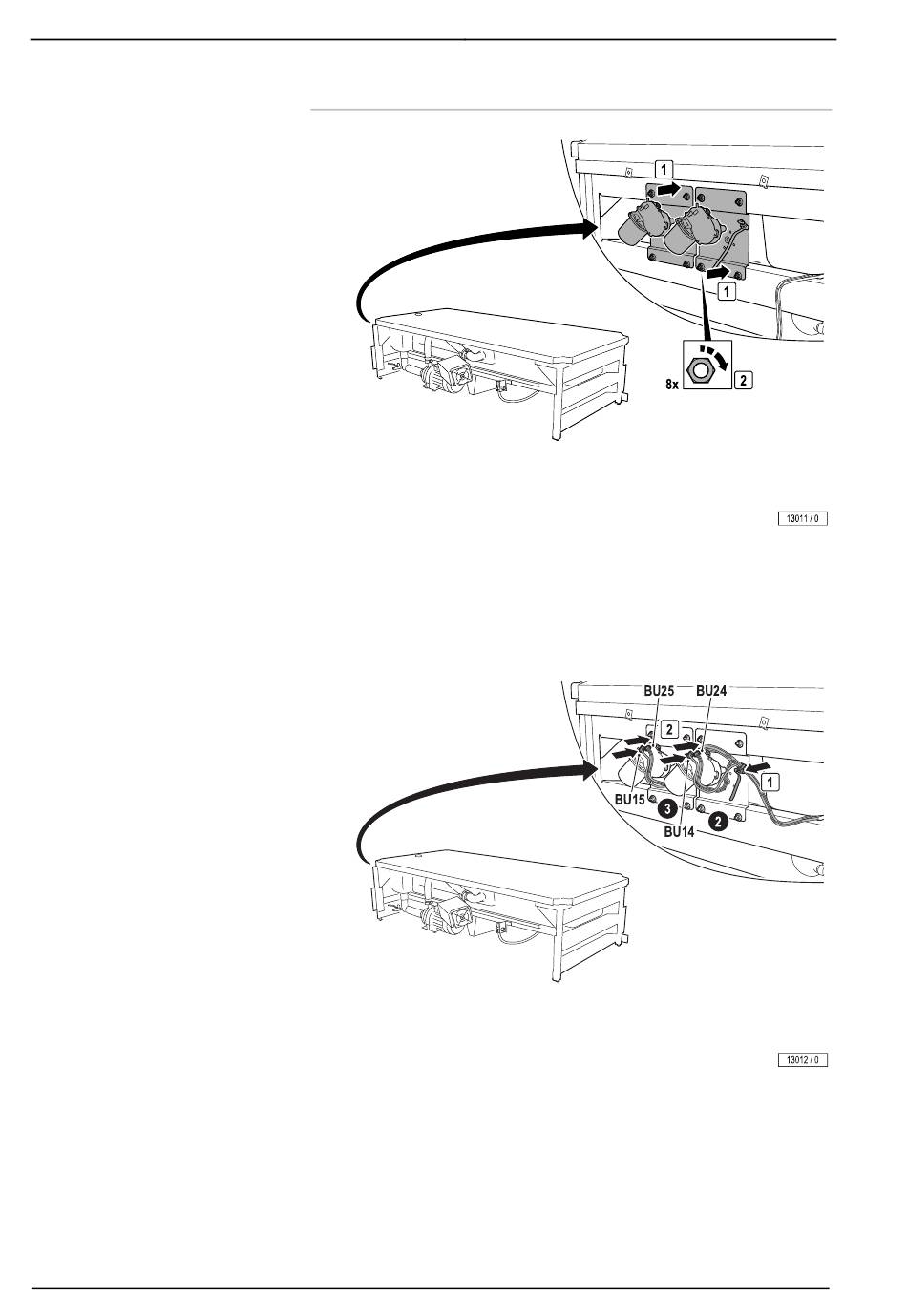

Fitting the drive motors
–
Fit the drive motors.
–
Tighten up the 8 x nuts (M6).
Tool: Ratchet-wrench with 10 mm hexagonal socket wrench or 10 mm open-
ended wrench
–
Use the cable ties to secure the cable in place.
Insert the plugs:
Drive motor 2
–
2-pin BU14
–
4-pin BU24
Drive motor 3
–
2-pin BU15
–
4-pin BU25
Assembly
10/2017
