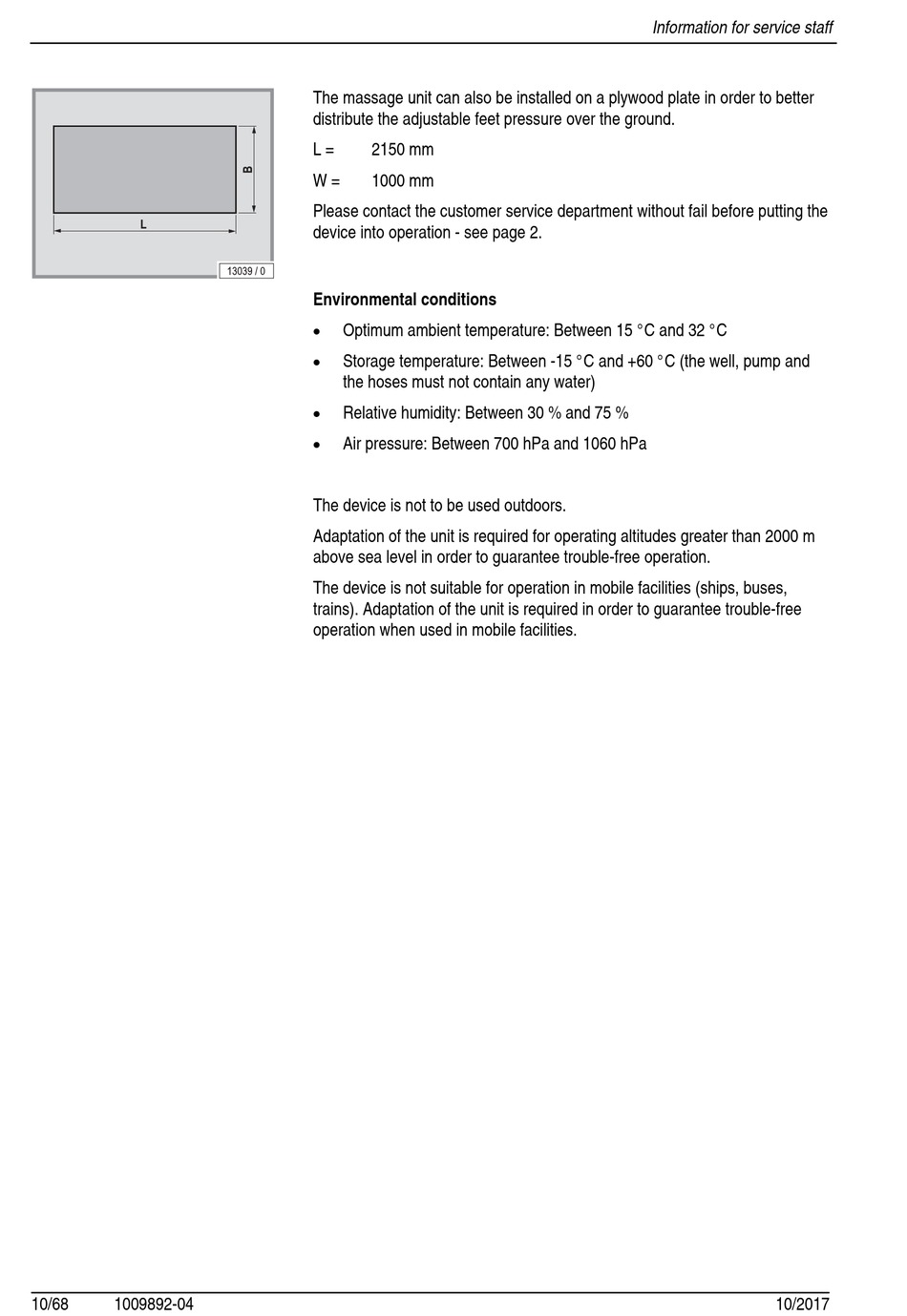

The massage unit can also be installed on a plywood plate in order to better
distribute the adjustable feet pressure over the ground.
L = 2150 mm
W = 1000 mm
Please contact the customer service department without fail before putting the
device into operation - see page 2.
Environmental conditions
 Optimum ambient temperature: Between 15 °C and 32 °C
 Storage temperature: Between -15 °C and +60 °C (the well, pump and
the hoses must not contain any water)
 Relative humidity: Between 30 % and 75 %
 Air pressure: Between 700 hPa and 1060 hPa
The device is not to be used outdoors.
Adaptation of the unit is required for operating altitudes greater than 2000 m
above sea level in order to guarantee trouble-free operation.
The device is not suitable for operation in mobile facilities (ships, buses,
trains). Adaptation of the unit is required in order to guarantee trouble-free
operation when used in mobile facilities.
