Fitting the panels

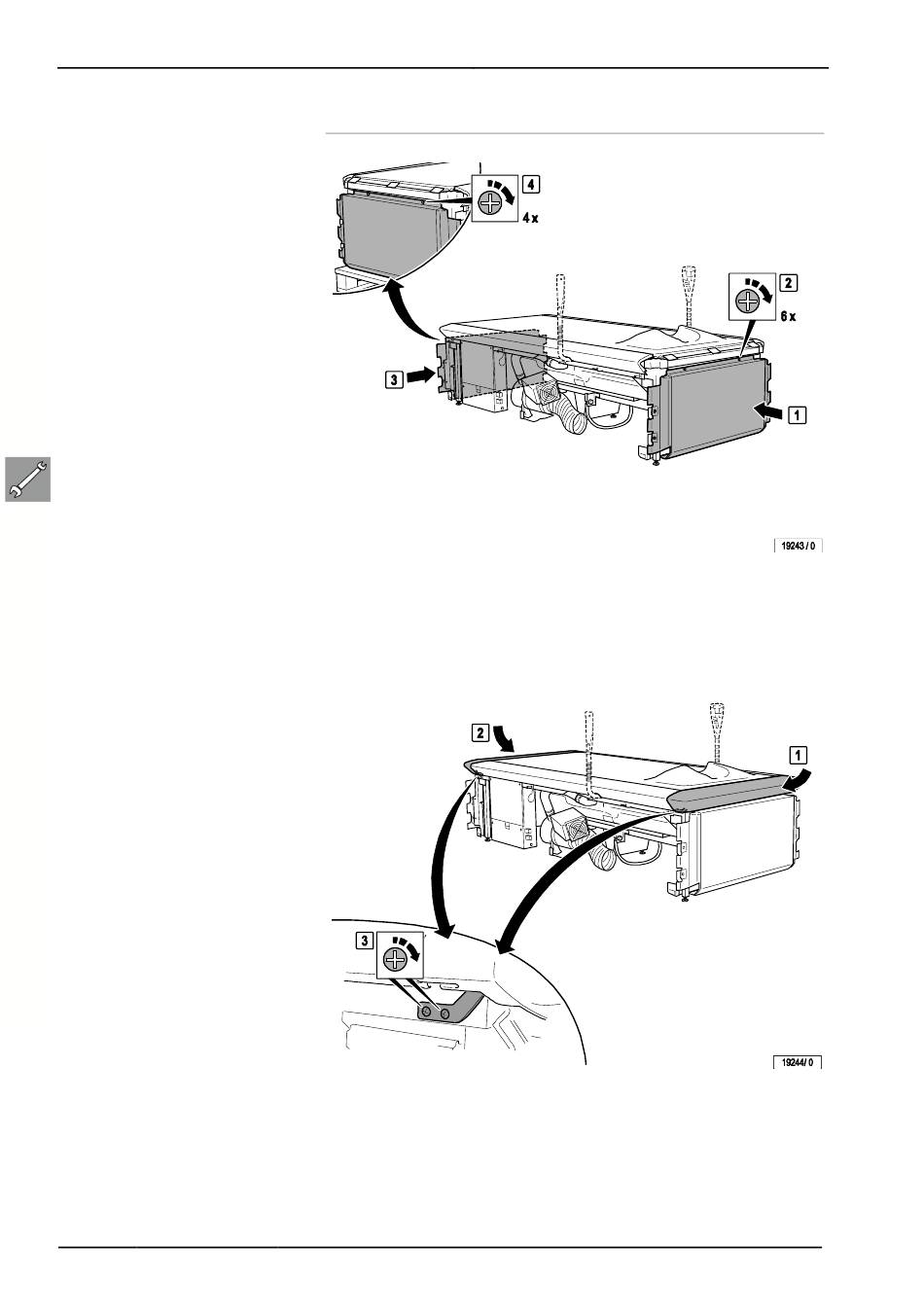

– Fit the panel at the head end and insert and tighten up the 6 x screws
(M6 x 16).
– Slide the panel in sideways in the guides at the feet end. Insert and
tighten up the 4 x screws (M6 x 16).
Tool: Phillips screwdriver No. 2 and ratchet wrench with PHZ bit 2
– Fit the panels.
– Fit the 2 x screws (M6 x 16) plus locking washers and tighten up.
Tool: Phillips screwdriver No. 2 and ratchet wrench with PHZ bit 2
