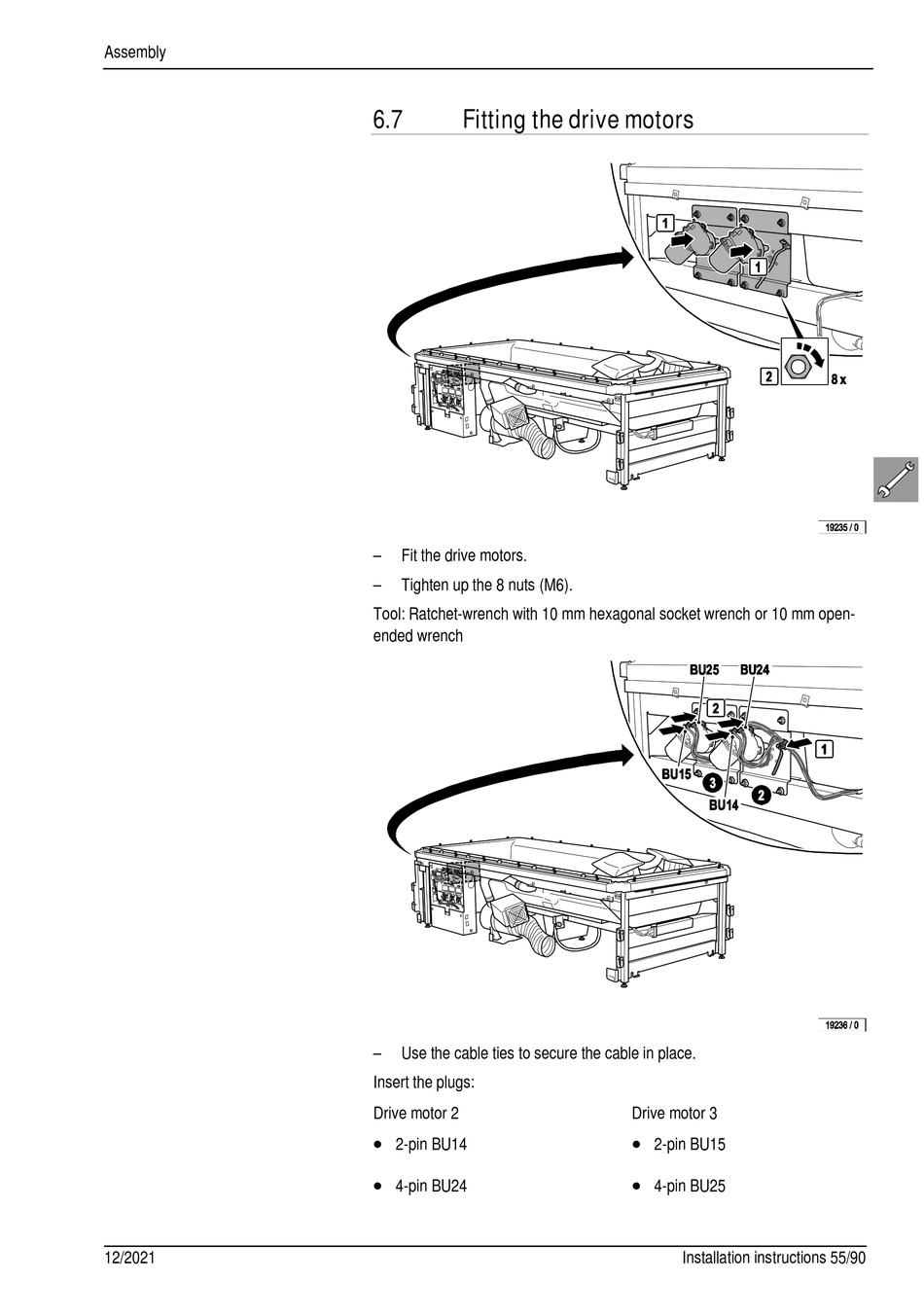

Fitting the drive motors

– Fit the drive motors.
– Tighten up the 8 nuts (M6).
Tool: Ratchet-wrench with 10 mm hexagonal socket wrench or 10 mm open-
ended wrench
– Use the cable ties to secure the cable in place.
Insert the plugs:
Drive motor 2

2-pin BU14

4-pin BU24
Drive motor 3

2-pin BU15

4-pin BU25
