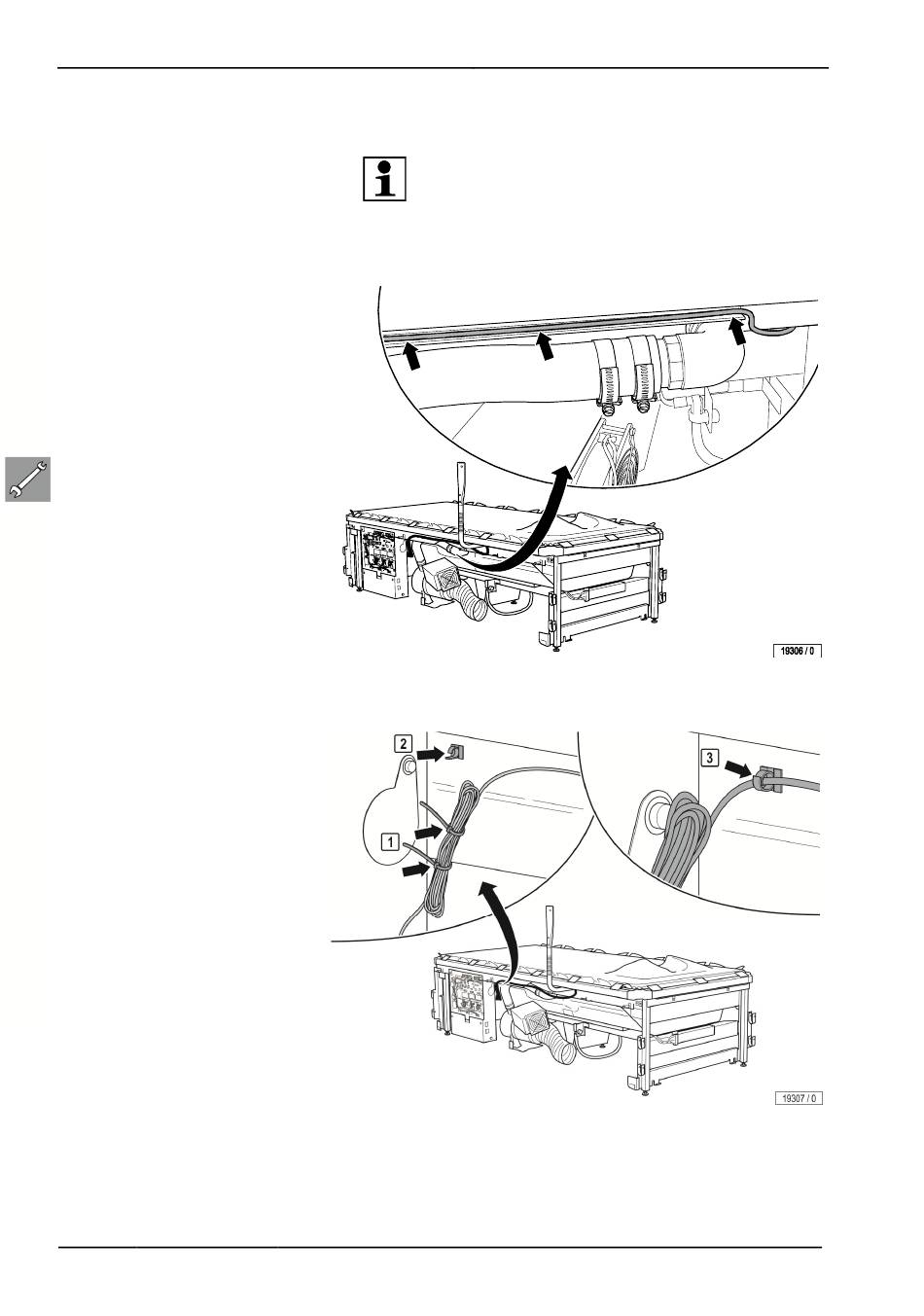

Cable laying WAVE/ MEDWAVE
NOTE:
The control panel cable of the wellsystem WAVE must be
previously pulled along under the device onto the side of the
control panel. The further cable routing takes place as for the
wellsystem MEDWAVE.
– Guide the control panel cable above the hose.
– Bundle and bind the cables together using two cable ties (1).
– Fix the cable as closely as possible to the control panel using an
adhesive clip (2).
– Clamp the bundled cables into the adhesive clip (3).
