6.3

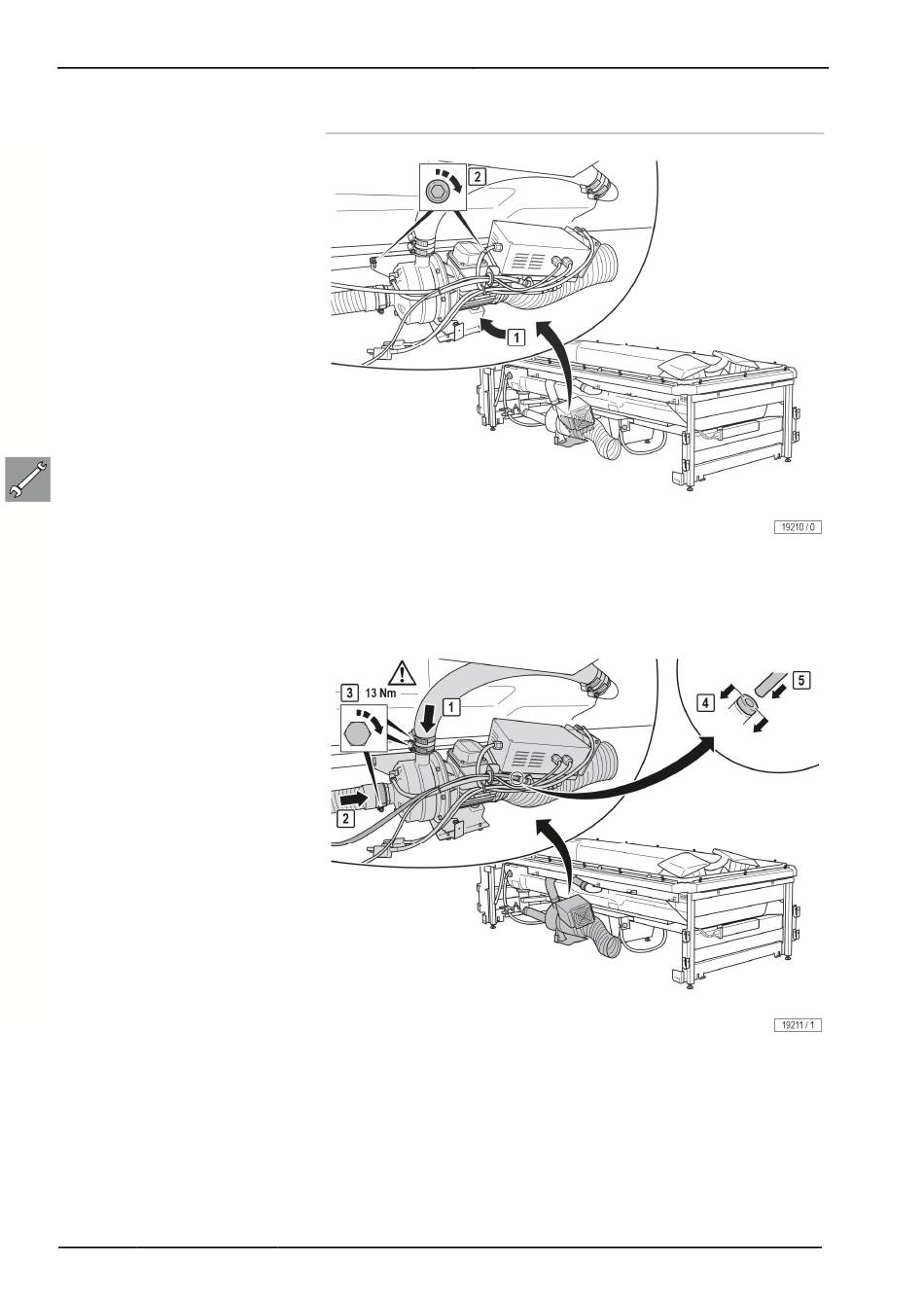

Installing and connecting up the pump

– Put the pump with plate (1) in the device.
– Fit the screws (M6 x 20), spring rings and washers and then tighten up.
Tool: Ratchet wrench with 7 mm hexagonal socket wrench,
7 mm Allen key and torque wrench (15720612)
– Fit the hoses (1) and tighten the hose clips (2) with 10 Nm (3).
– Press down the blue ring (4), then insert the hose (5).
– Mount the transport safety, see chapter 3.1.
Tool: Ratchet wrench with 8 mm hexagonal socket wrench, 5 mm Allen key
