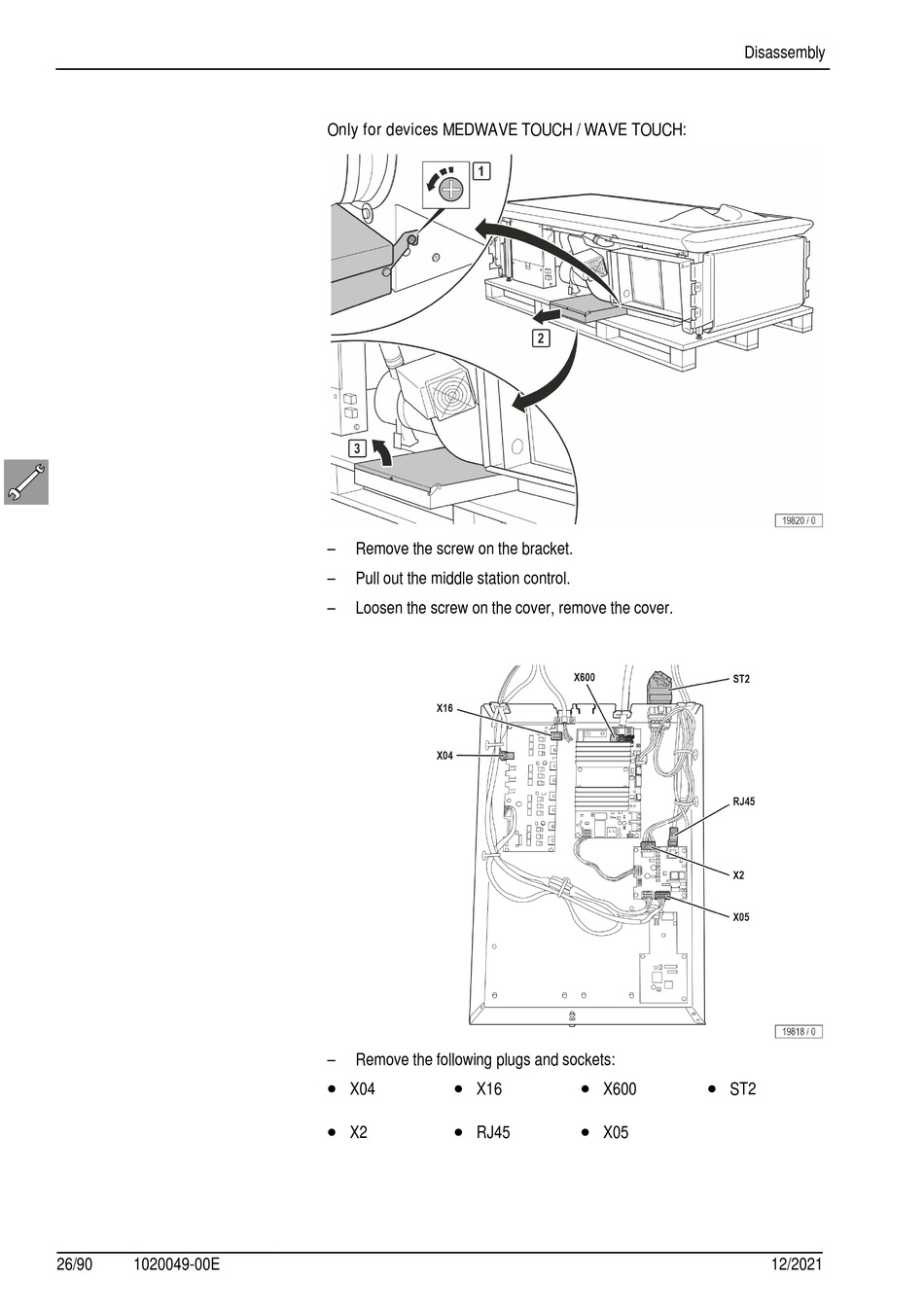

Only for devices MEDWAVE TOUCH / WAVE TOUCH:
– Remove the screw on the bracket.
– Pull out the middle station control.
– Loosen the screw on the cover, remove the cover.
– Remove the following plugs and sockets:
 
X04 X16
 
X2 RJ45
Disassembly
 
X600 ST2

X05
