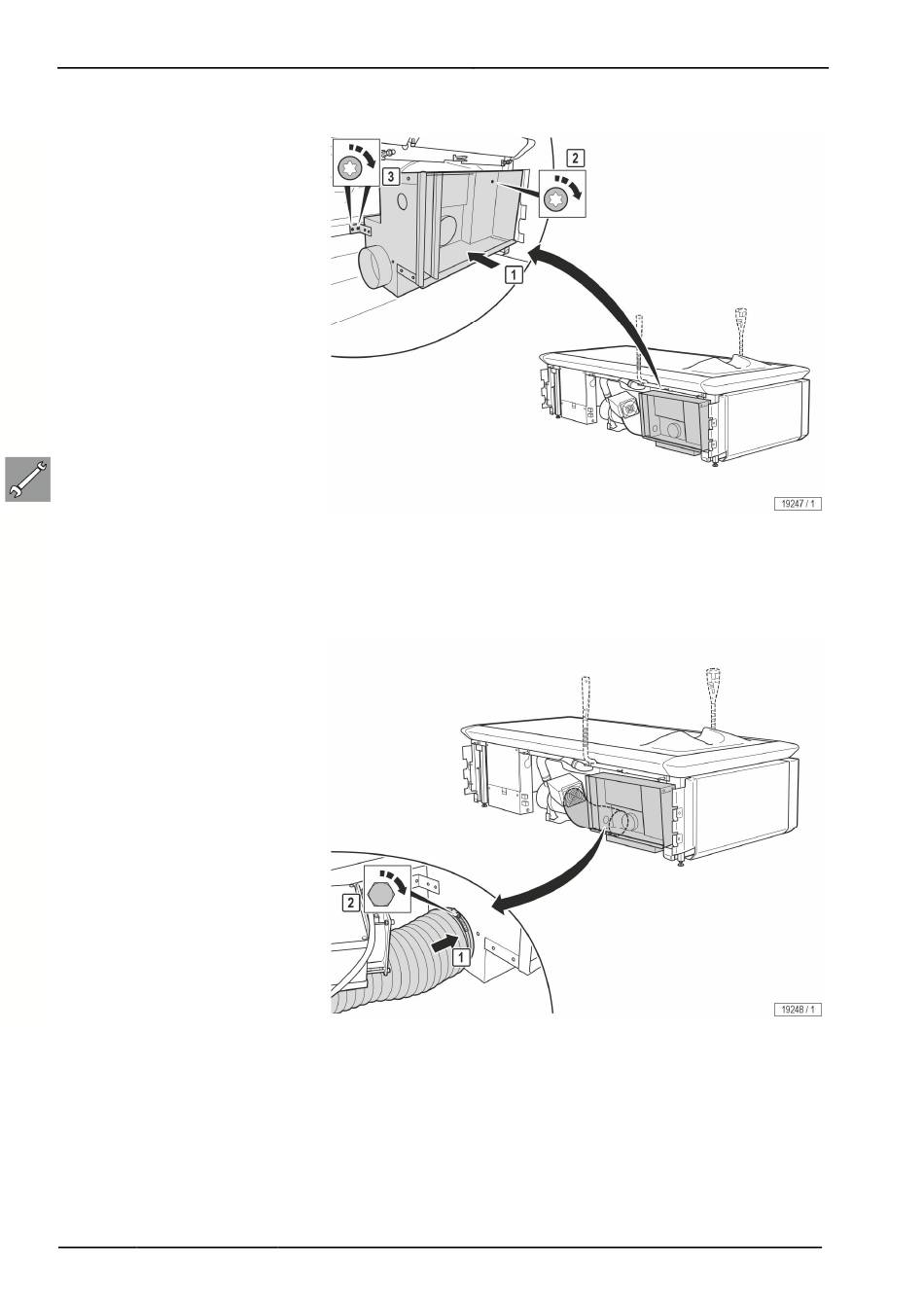

Installing the fan casing
– Attach the fan casing to the device.
– Tighten the screw (2) in the fan casing.
– Tighten the two screws (3) on the retaining bracket.
Tool: Ratchet wrench with T20 Torx® bits
– Mount air hose onto the fan casing (1).
– Tighten the screw on the hose clip (2).
Tool: Allen key 7 mm
