Assembly and disassembly instructions

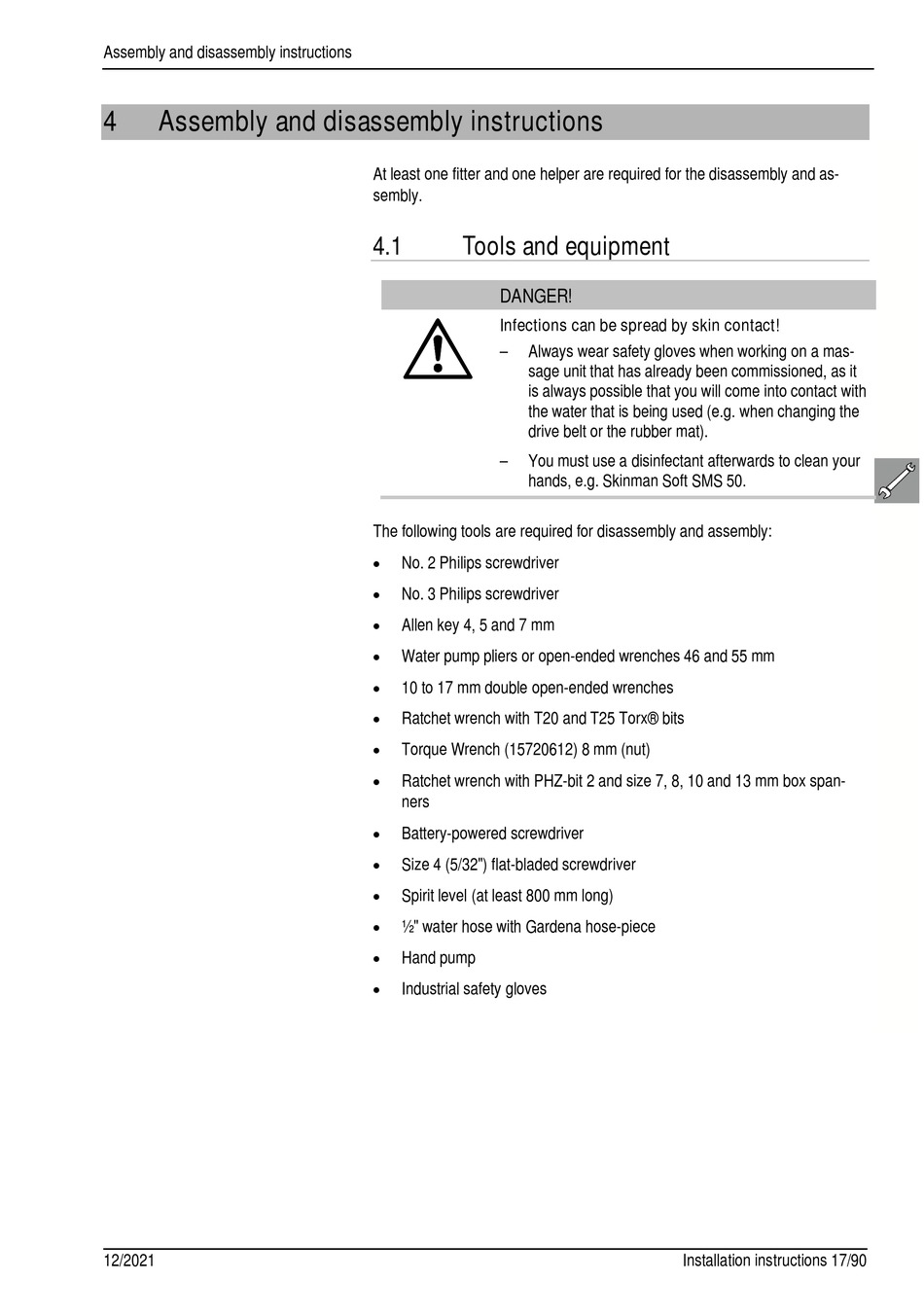

4 Assembly and disassembly instructions
12/2021
At least one fitter and one helper are required for the disassembly and as-
sembly.
4.1

Tools and equipment

DANGER!
Infections can be spread by skin contact!
– Always wear safety gloves when working on a mas-
sage unit that has already been commissioned, as it
is always possible that you will come into contact with
the water that is being used (e.g. when changing the
drive belt or the rubber mat).
– You must use a disinfectant afterwards to clean your
hands, e.g. Skinman Soft SMS 50.
The following tools are required for disassembly and assembly:
No. 2 Philips screwdriver

 No. 3 Philips screwdriver
 Allen key 4, 5 and 7 mm
 Water pump pliers or open-ended wrenches 46 and 55 mm
 10 to 17 mm double open-ended wrenches
 Ratchet wrench with T20 and T25 Torx® bits
 Torque Wrench (15720612) 8 mm (nut)
 Ratchet wrench with PHZ-bit 2 and size 7, 8, 10 and 13 mm box span-
ners
 Battery-powered screwdriver
 Size 4 (5/32") flat-bladed screwdriver
 Spirit level (at least 800 mm long)
 ½" water hose with Gardena hose-piece
 Hand pump
 Industrial safety gloves
Installation instructions 17/90
