Conel FLOW Montage- Und Betriebsanleitung Seite 9

EN
1. Description and range of application
Fully automatic condensate removal pump designed to remove condensate from furnace burners, gas or oil condensing
boilers, air conditioners, refrigeration display cabinets and de-humidifiers where drainage by gravity is not possible.
WARNING: Regulations of water authorities or other relevant authorities must be complied with when
condensate is being disposed of. Condensate from condensing boilers being operated with standard
heating oil (not low on sulphur) may not be disposed of into the sewer system without being
neutralised. This is also true for condensing boiler systems exceeding 200 KW.
2. Technical Data
Motor power output: P2 = 80 Watt
Voltage: 230 V – 50 Hz
Nominal current: 0.6 A
Operational voltage: 230 V – 50 Hz
Protection: IP 44
RPM: 2900
3. Scope of delivery
Ready to plug in pump with 2 metre power cable and signalling cable, inlet adapter 40-25 and 50 mm, check valve and
instruction manual. The pump also comes with discharge tubing (6 m) which is to be connected to the outlet side (check
valve) which is supplied. Connect to the drainage pipe with the adapter 50 mm/8 mm.
4. Installation and start up
WARNING: Read instructions completely prior to installing, operating or servicing the pump! The
installation may only be performed by a qualified person.
Check content for completeness and eventual damage prior to operation. Inform your dealer immediately in case of any
deficiency.
Never transport or remove the pump from the packaging by holding on to the cable!
An orderly grounded mains supply and residual current circuit-breaker of max. 30 mA disconnecting all
phases is required for the operation of the pump.
Already existing outlets are to be checked for the existence of a residual current circuit-breaker. Ensure
that power cord is NOT plugged in when performing any type of work on the pump.
4.1 Installation and inlet connection
The pump must be level (either on the floor or mounted on the wall) to ensure a proper operation.
The pump must be installed ensuring that it can not tilt and that it is properly mounted!
The pump should be mounted close to the condensate drainage of the unit to be drained. The connections from the unit
to the pump are not included. Please be sure to use corrosion-resistant and acid-resistant material when choosing the
drainage pipes (e.g. PVC, PE, stainless-steel).
Condensate from condensing boilers is very aggressive and corrosive!
A standard high-temperature plastic wastewater tube (50 mm) may directly be connected to one of the two inlets by
means of the supplied inlet adapter (see Figure 1). Other pipes or tubing with a smaller diameter may be safely fixed by
running cable straps through the two holes in the adapter and firmly tightening them. A special adapter for 50 mm pipe is
provided.

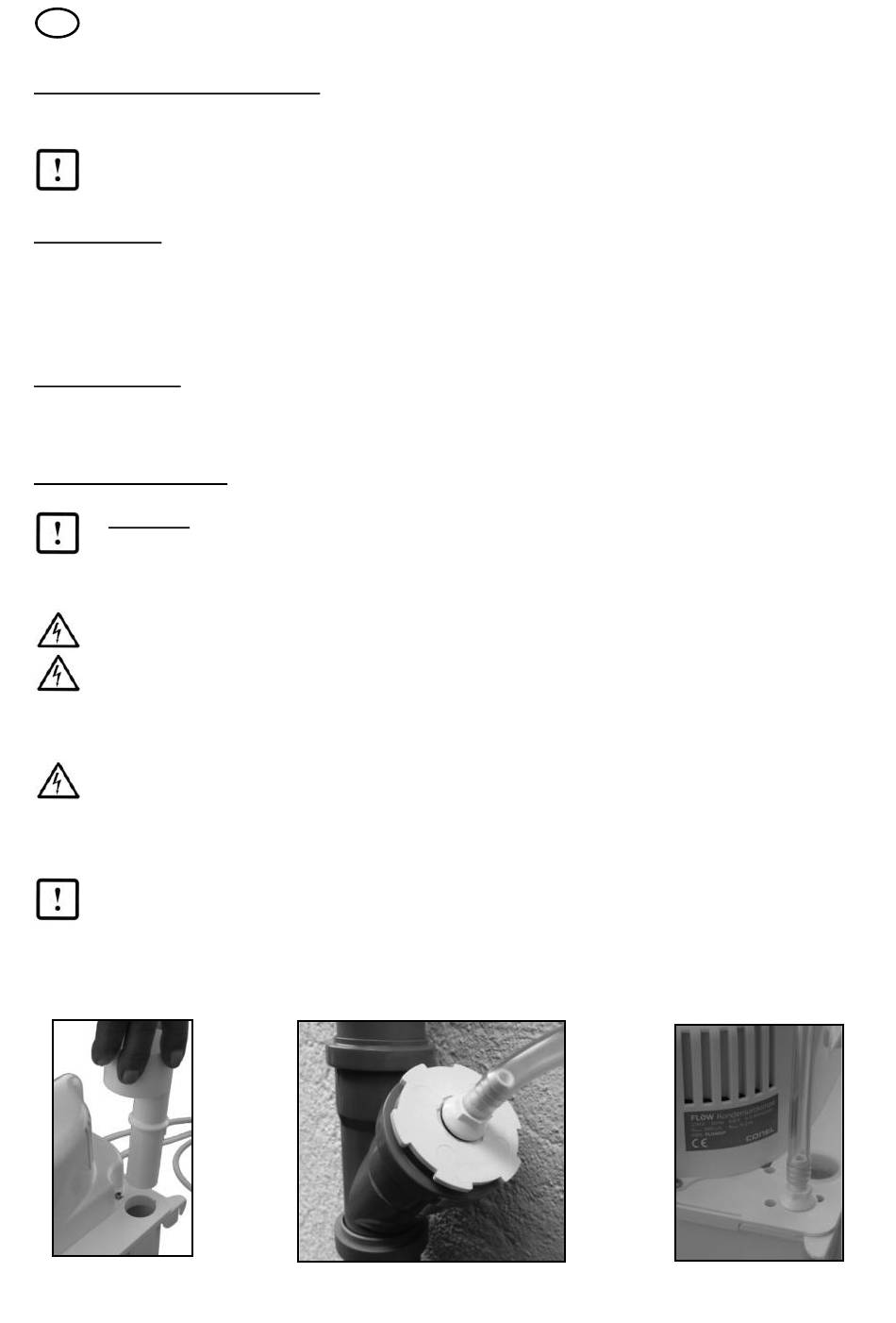

Figure 1 - Inlet adapter
Max. flow: 360 l/h
Max. head: 5.2 m WS
Max. liquid temperature: 50° C
3/8" connection with 8 mm hose connector
Weight: ca. 2.5 kg
Cable with plug: Length 2.0 m
Figure 2: Adapter 50 mm
9
Figure 3
