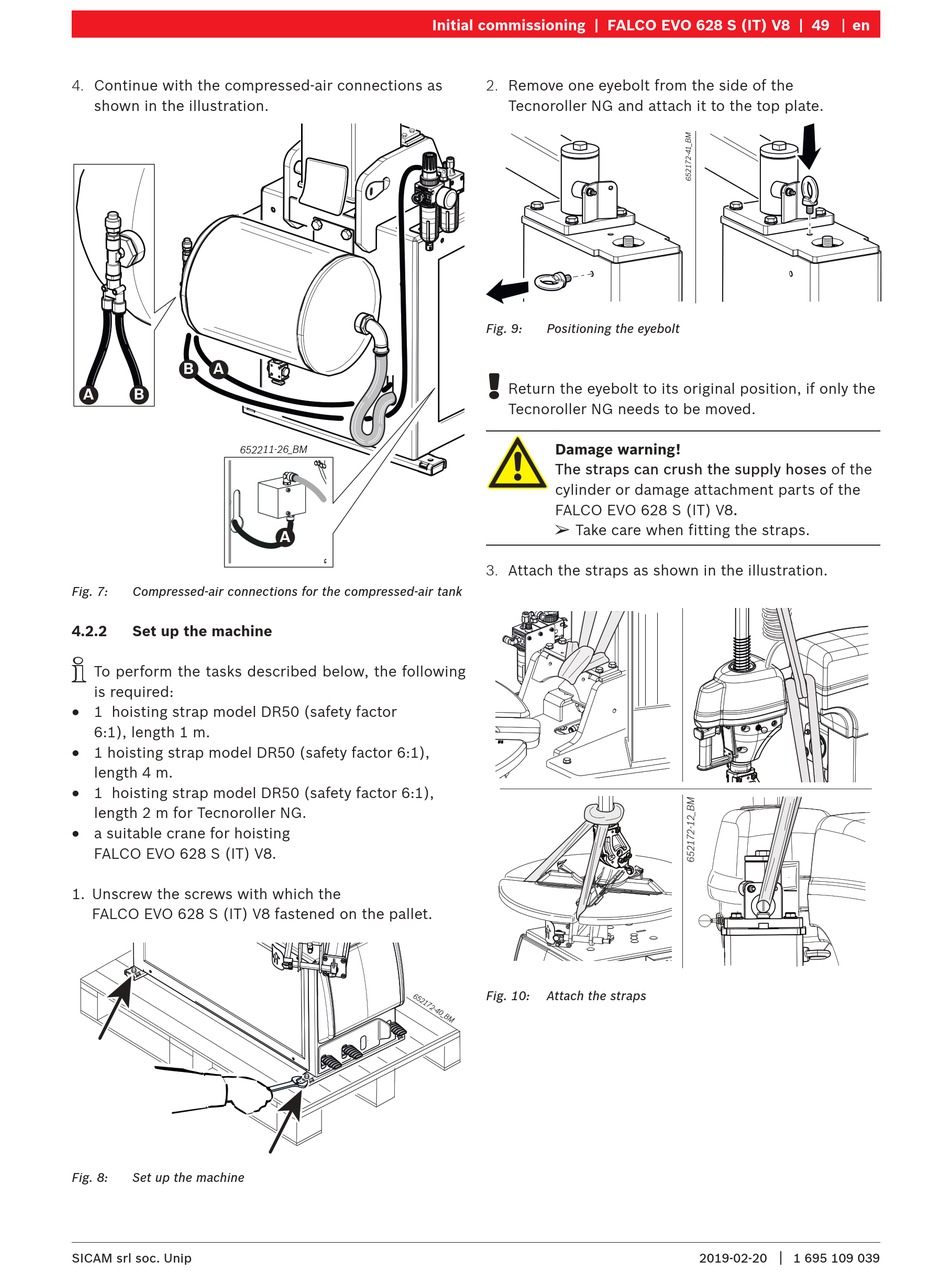

4. Continue with the compressed-air connections as
shown in the illustration.
B A
A B
Fig. 7: Compressed-air connections for the compressed-air tank
4.2.2 Set up the machine
i
To perform the tasks described below, the following
is required:
R
1 hoisting strap model DR50 (safety factor
6:1), length 1 m.
R
1 hoisting strap model DR50 (safety factor 6:1),
length 4 m.
R
1 hoisting strap model DR50 (safety factor 6:1),
length 2 m for Tecnoroller NG.
R
a suitable crane for hoisting
FALCO EVO 628 S (IT) V8.
1. Unscrew the screws with which the
FALCO EVO 628 S (IT) V8 fastened on the pallet.
Fig. 8: Set up the machine
SICAM srl soc. Unip
Initial commissioning | FALCO EVO 628 S (IT) V8 | 49
A
2. Remove one eyebolt from the side of the
Tecnoroller NG and attach it to the top plate.
Fig. 9: Positioning the eyebolt
!
Return the eyebolt to its original position, if only the
Tecnoroller NG needs to be moved.
Damage warning!
The straps can crush the supply hoses of the
cylinder or damage attachment parts of the
FALCO EVO 628 S (IT) V8.
¶
Take care when fitting the straps.
3. Attach the straps as shown in the illustration.
Fig. 10: Attach the straps
en
|
2019-02-20 1 695 109 039
