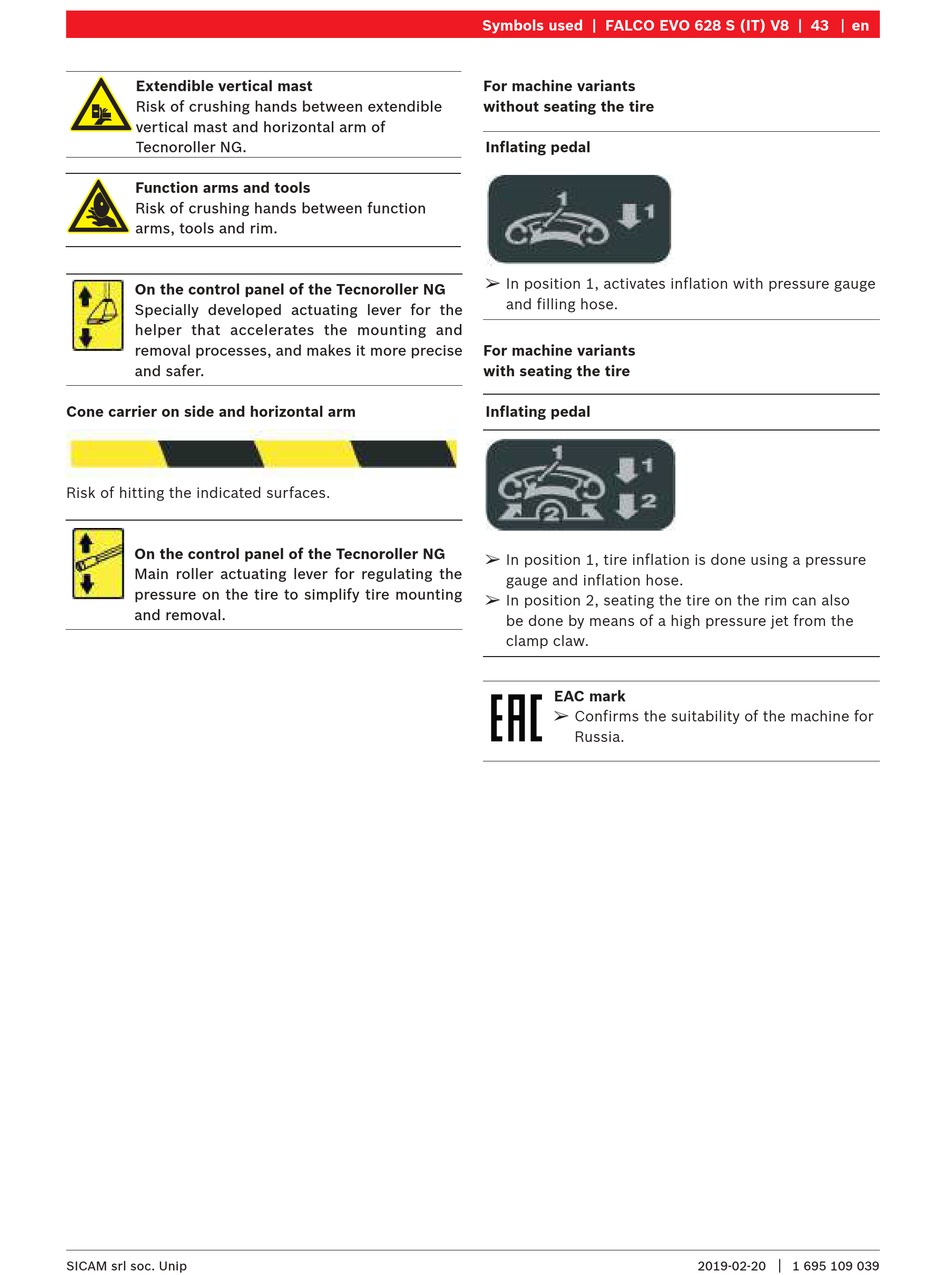

Sicam FALCO EVO 628 S V8 Originalbetriebsanleitung Seite 43

Extendible vertical mast
Risk of crushing hands between extendible
vertical mast and horizontal arm of
Tecnoroller NG.
Function arms and tools
Risk of crushing hands between function
arms, tools and rim.
On the control panel of the Tecnoroller NG
Specially developed actuating lever for the
helper that accelerates the mounting and
removal processes, and makes it more precise
and safer.
Cone carrier on side and horizontal arm
Risk of hitting the indicated surfaces.
On the control panel of the Tecnoroller NG
Main roller actuating lever for regulating the
pressure on the tire to simplify tire mounting
and removal.
SICAM srl soc. Unip
Symbols used | FALCO EVO 628 S (IT) V8 | 43
For machine variants
without seating the tire
Inflating pedal
¶
In position 1, activates inflation with pressure gauge
and filling hose.
For machine variants
with seating the tire
Inflating pedal
¶
In position 1, tire inflation is done using a pressure
gauge and inflation hose.
¶
In position 2, seating the tire on the rim can also
be done by means of a high pressure jet from the
clamp claw.
EAC mark
¶
Confirms the suitability of the machine for
Russia.
