4.7. Switch on hybrid intercom station operating as a/b intercom station

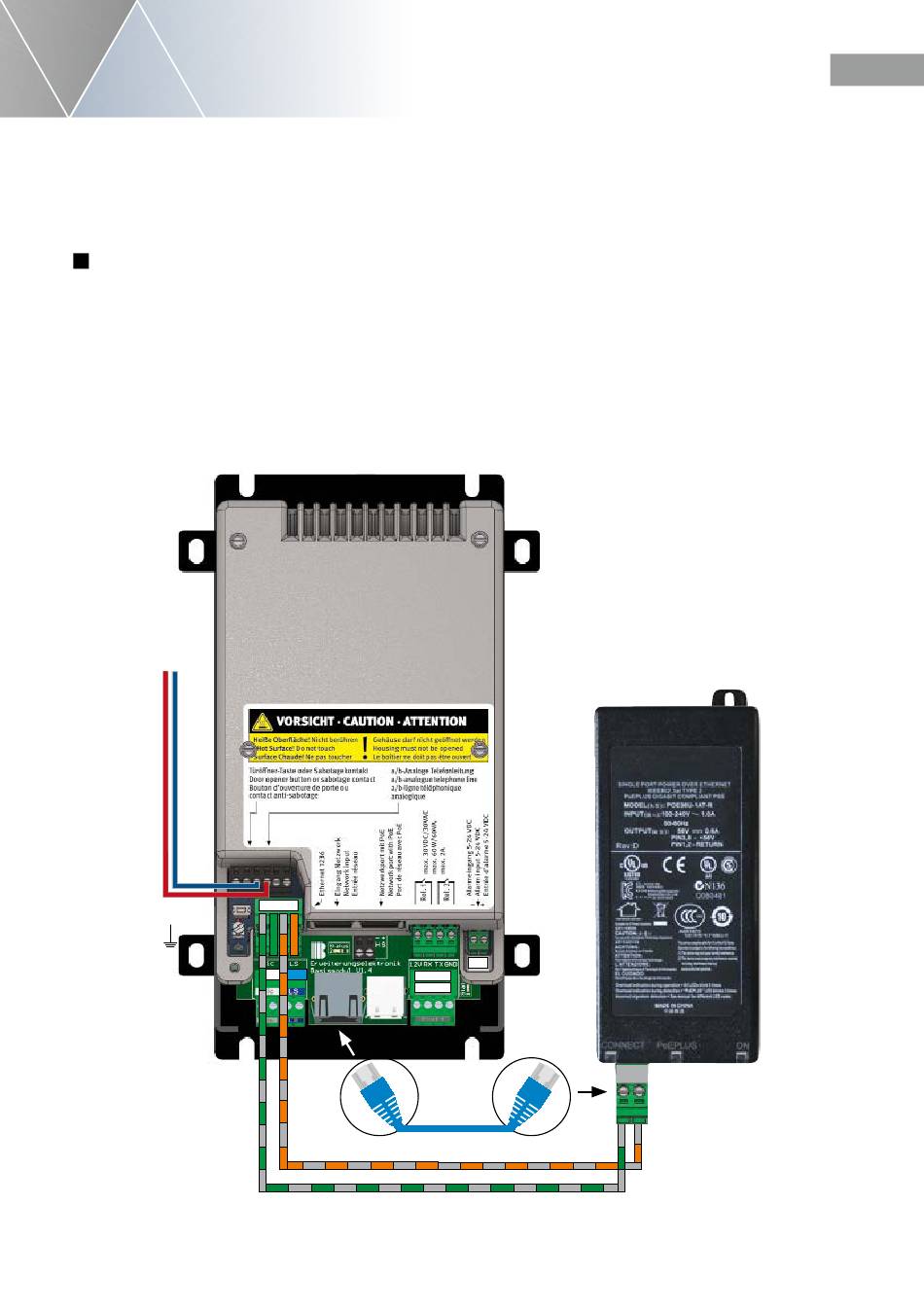

Connect to the on-site infrastructure (a/b port, power supply)
1
Preparation
▸
Mount the intercom station as described earlier in this manual
▸ Power up the intercom station (Behnke PoE injector)
▸ Connect the intercom station to the free a/b port
▸
Wait until the intercom station is started, the red then LED flashes continuously. See also page
76, Status LED.
a/b port
twisted pair of wires
Configuration key
Status LED
The connection of the
earth is required if it
is a TNV-1/ES1 circuit,
e.g. if the device is
installed in a column
and there is no fixed
connection to the
building.
