6.4.3 Configuring the outputs
Menu structure:

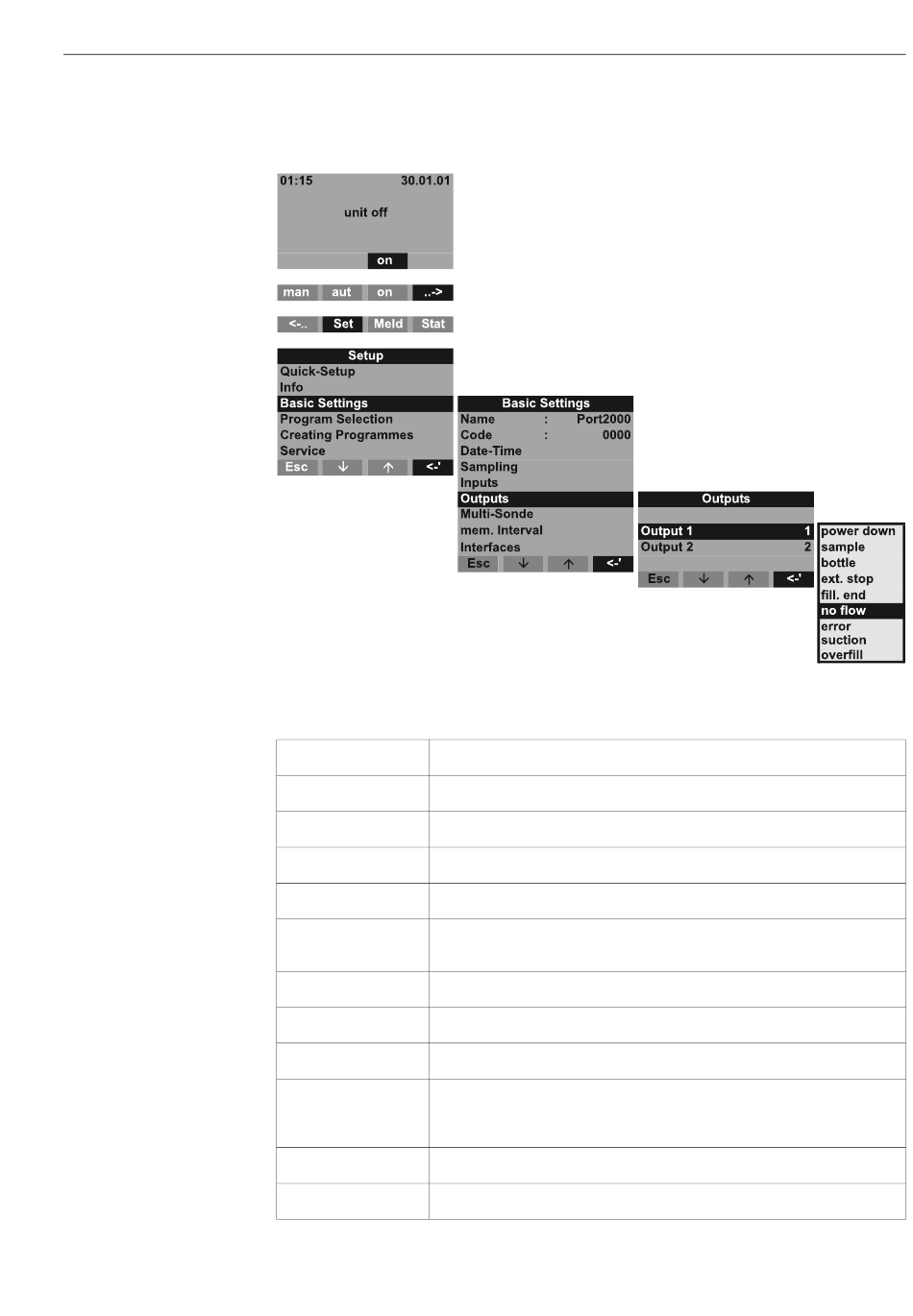

Fig. 41: Outputs menu structure
Power down The output is switched when the controller is shut down (battery voltage < 10 V)
Sample The output is switched on a sample.
Bottle The output is switched on bottle replacement.
Ext. Stop The output is switched on an external stop.
Fill. end The output is switched on exiting the sampling program.
No Flow The output is switched if the device was unable to draw in any sampling medium (e.g.
blocked suction hose).
Error The output is switched on error.
Suction The output is switched on a sample during intake.
Overfill The output is switched when a bottle is overfull.
Quantity Imp The output passes on the digital quantity signal applied via a digital input. If the analog
input is used to measure the quantity, the quantity measured is converted to digital pulses.
The value of a pulse can be specified.
Event Prog The output is switched if the event program has been activated
Switch Prog The output is switched if a switching program has been activated
