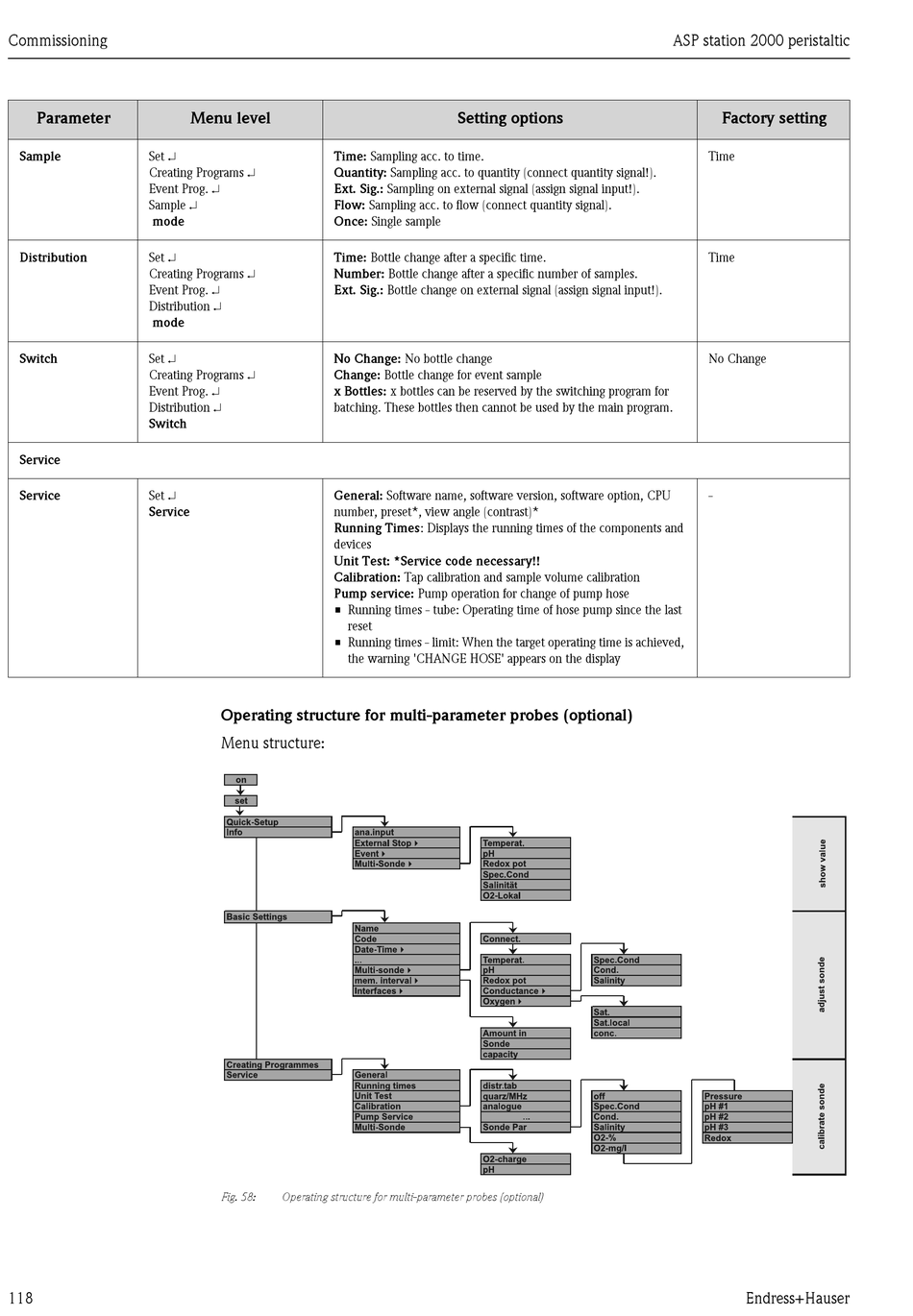

Endress+Hauser ASP Station 2000 Peristaltik Betriebsanleitung Seite 118

Commissioning
Parameter
Set 
Sample
Creating Programs 
Event Prog. 
Sample 
mode
Set 
Distribution
Creating Programs 
Event Prog. 
Distribution 
mode
Set 
Switch
Creating Programs 
Event Prog. 
Distribution 
Switch
Service
Set 
Service
Service
118
Menu level
Time: Sampling acc. to time.
Quantity: Sampling acc. to quantity (connect quantity signal!).
Ext. Sig.: Sampling on external signal (assign signal input!).
Flow: Sampling acc. to flow (connect quantity signal).
Once: Single sample
Time: Bottle change after a specific time.
Number: Bottle change after a specific number of samples.
Ext. Sig.: Bottle change on external signal (assign signal input!).
No Change: No bottle change
Change: Bottle change for event sample
x Bottles: x bottles can be reserved by the switching program for
batching. These bottles then cannot be used by the main program.
General: Software name, software version, software option, CPU
number, preset*, view angle (contrast)*
Running Times: Displays the running times of the components and
devices
Unit Test: *Service code necessary!!
Calibration: Tap calibration and sample volume calibration
Pump service: Pump operation for change of pump hose
• Running times - tube: Operating time of hose pump since the last
reset
• Running times - limit: When the target operating time is achieved,
the warning 'CHANGE HOSE' appears on the display
Operating structure for multi-parameter probes (optional)
Menu structure:
Fig. 58: Operating structure for multi-parameter probes (optional)
Setting options
ASP station 2000 peristaltic
Factory setting
Time
Time
No Change
-
