Operation
90
5.2 Display and operating elements

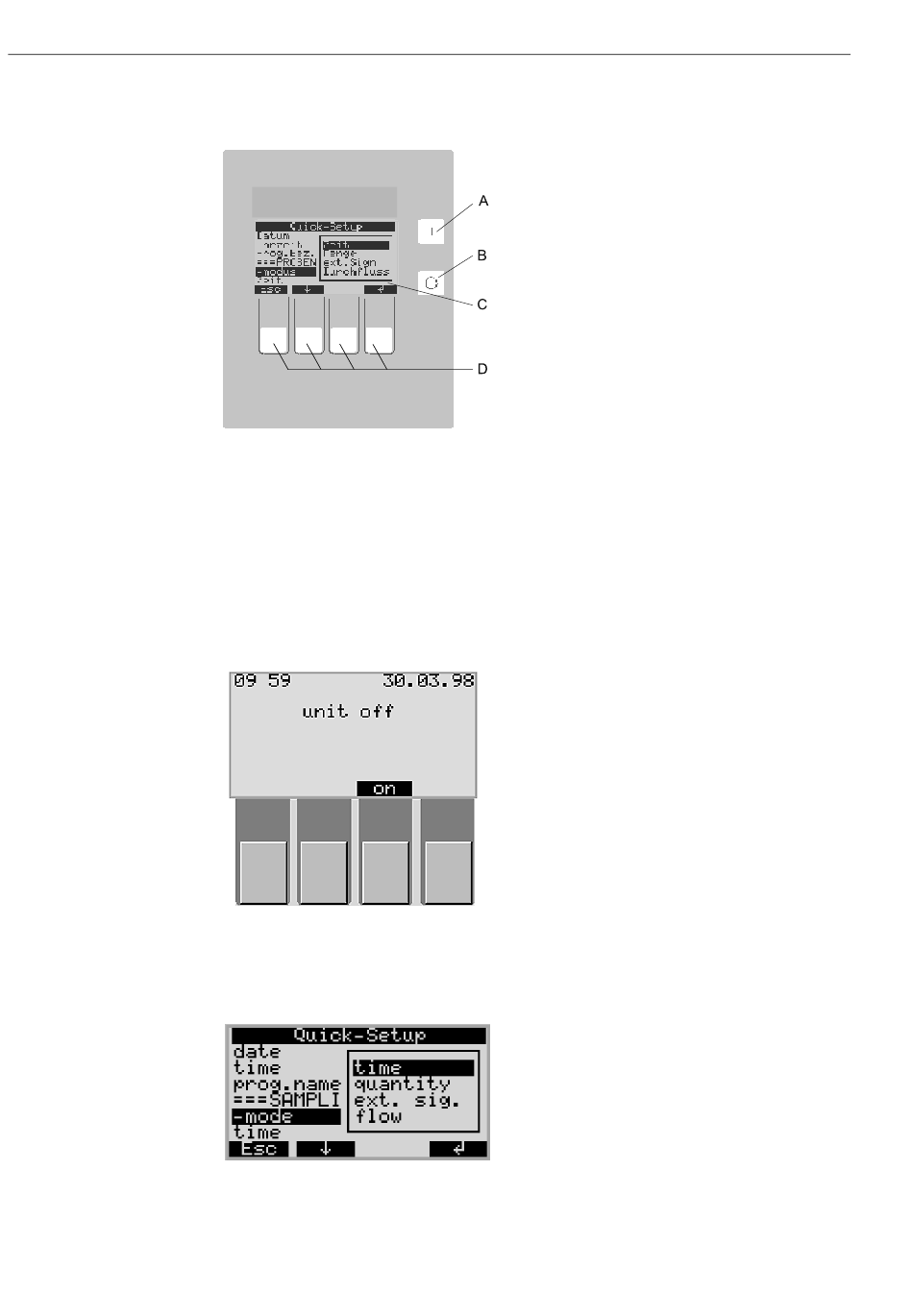

Fig. 18: Display and operating elements
A = "ON" switch
B = "OFF" switch
C = LC display: 32 characters, 8 lines
D = Operating keys
5.2.1 Display
Set the sampler using four operating keys. The function of the keys is shown on the display.
Operation is menu-guided.
Fig. 19: Display
Picklists automatically display the possible settings. The picklist selected (e.g. Time, Quantity, Ext.
sig., Flow) is highlighted by a black bar ('-mode' in the graphic).
Fig. 20: Picklists (example: 'Quick Setup')
