Commissioning
100

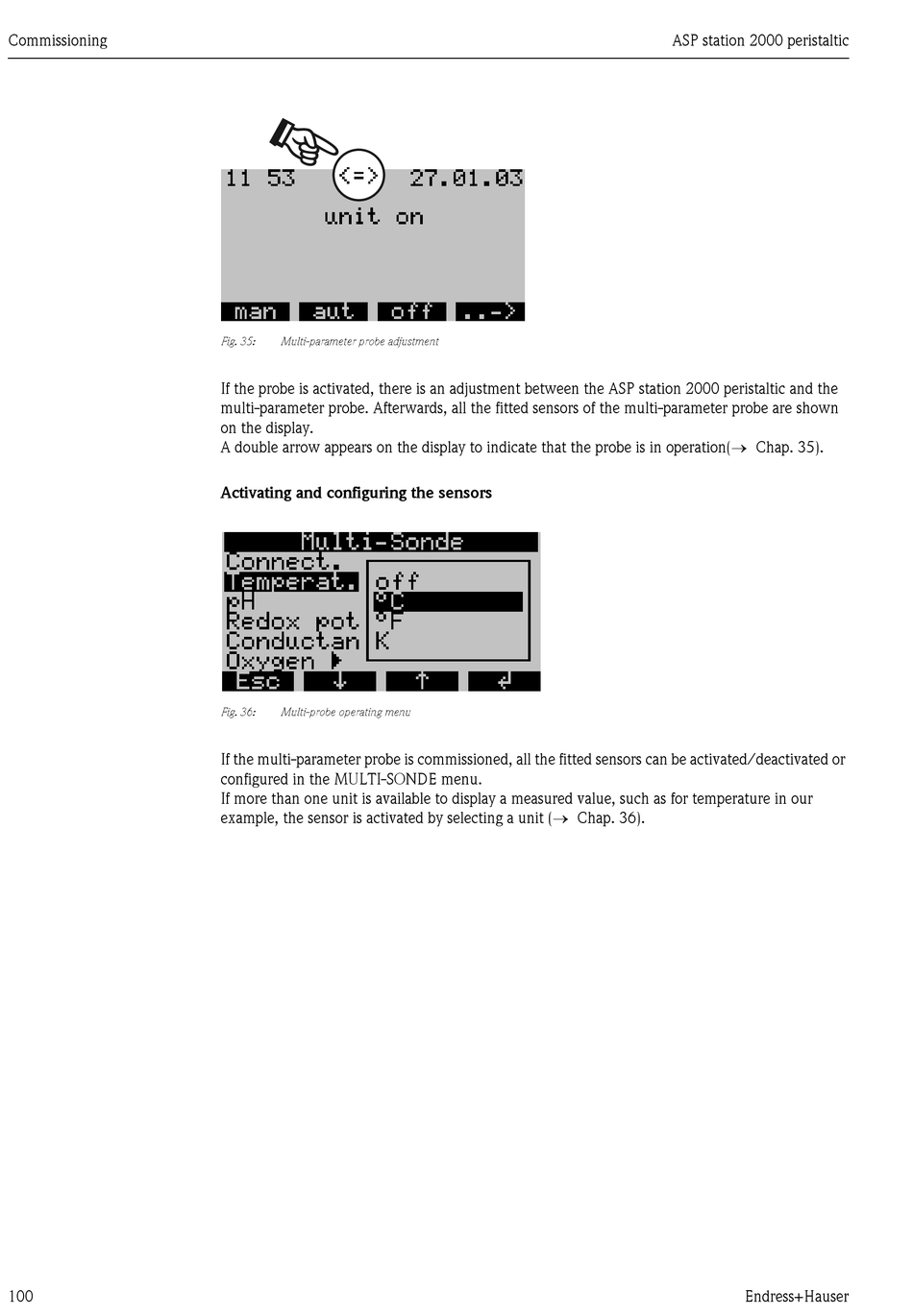

Fig. 35: Multi-parameter probe adjustment
If the probe is activated, there is an adjustment between the ASP station 2000 peristaltic and the
multi-parameter probe. Afterwards, all the fitted sensors of the multi-parameter probe are shown
on the display.
A double arrow appears on the display to indicate that the probe is in operation( Chap. 35).
Activating and configuring the sensors
Fig. 36: Multi-probe operating menu
If the multi-parameter probe is commissioned, all the fitted sensors can be activated/deactivated or
configured in the MULTI-SONDE menu.
If more than one unit is available to display a measured value, such as for temperature in our
example, the sensor is activated by selecting a unit ( Chap. 36).
