Product description

6.1

Description of the system

6.2

Technical data

64
NOTICE
Observe recommendations for maintaining drinking water hy-
giene in accordance with VDI/DVGW 6023 Sheet 1!
• Ensure a water temperature of ≤ 20 °C to max. 25 °C.
• Exchange all the water at least every 72 hours.
Wilo-SiFresh is a potable water cold-circulation (Trinkkaltwasser-Zirkulation) system with
integrated circulator and water exchange device. Circulation serves to even out temper-
ature peaks within the drinking water installation and to flow through the pipe strands to
avoid stagnation. The system performs continuous monitoring of the operating parameters
and the water temperature.
The solenoid valve (see Item 9) triggers manually or automatically via temperature or time
control: temperature control to maintain a temperature reduction in the drinking water in-
stallation and time control in order to maintain the intended operation.

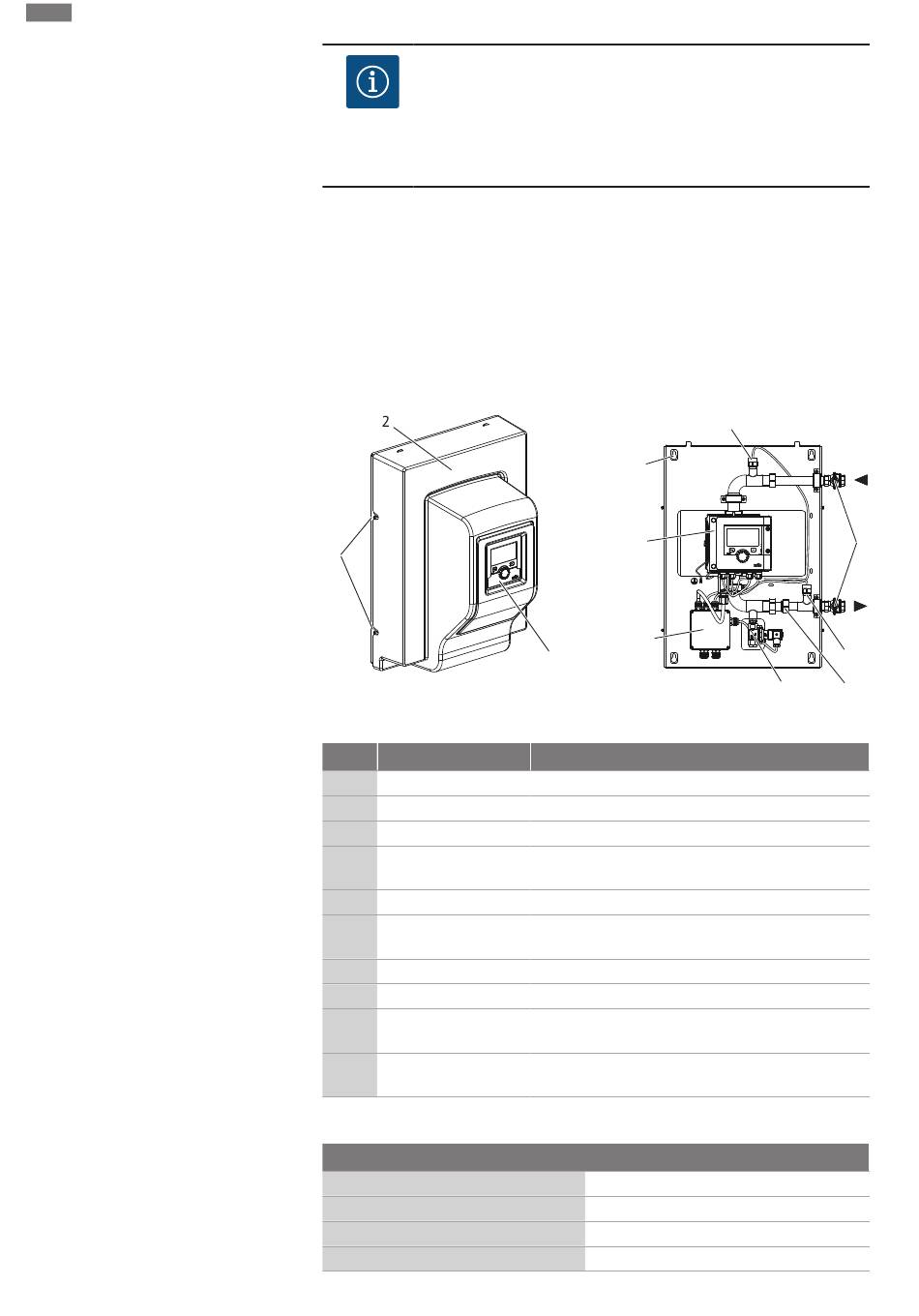

1
Table 1: Overview of the system
Item Name
1 Fastening screws
2 Front cover
3 Operating unit
4 Electronic module
5 Keyholes
6 Temperature sensor
PT1000
7 Ball valve
8 Non-return valve
9 Solenoid valve
10 Junction box
Table 2: Description of operating elements
Technical data
Permissible fluid temperature
Permissible ambient temperature
Maximum relative humidity
Mains voltage
Installation and operating instructions • Wilo-SiFresh • Ed.02/2023-08
5
4
10
3
Explanation
Fastening screws on front cover
System protection
Used to set the system and to read values
Electronic unit of the high-efficiency pump with
graphic display
For wall fixation
For measuring/controlling the water temperature at
the inlet/outlet
For shutting off the water to perform maintenance
Prevents a possible reversal of the flow direction
Enables a central water exchange to reduce the tem-
perature and maintain the intended operation
Serves as power supply for the integrated high-effi-
ciency pump, the solenoid valve and the system
+2 ... +80 °C
0 ... +40 °C
95% (non-condensing)
1~ 230 V +/-10% 50/60 Hz
6
7
6
9 8
