13 Closing/Opening the Fireplace Door

13.1 Axinit Front S & Larimar Front S
1/4
7/10
3/9
2/8
B
A
6
5
13.2 ECO 720
A
B
2/7
1
3/6
Instruction Manual
A: Door locked
B: Door unlocked

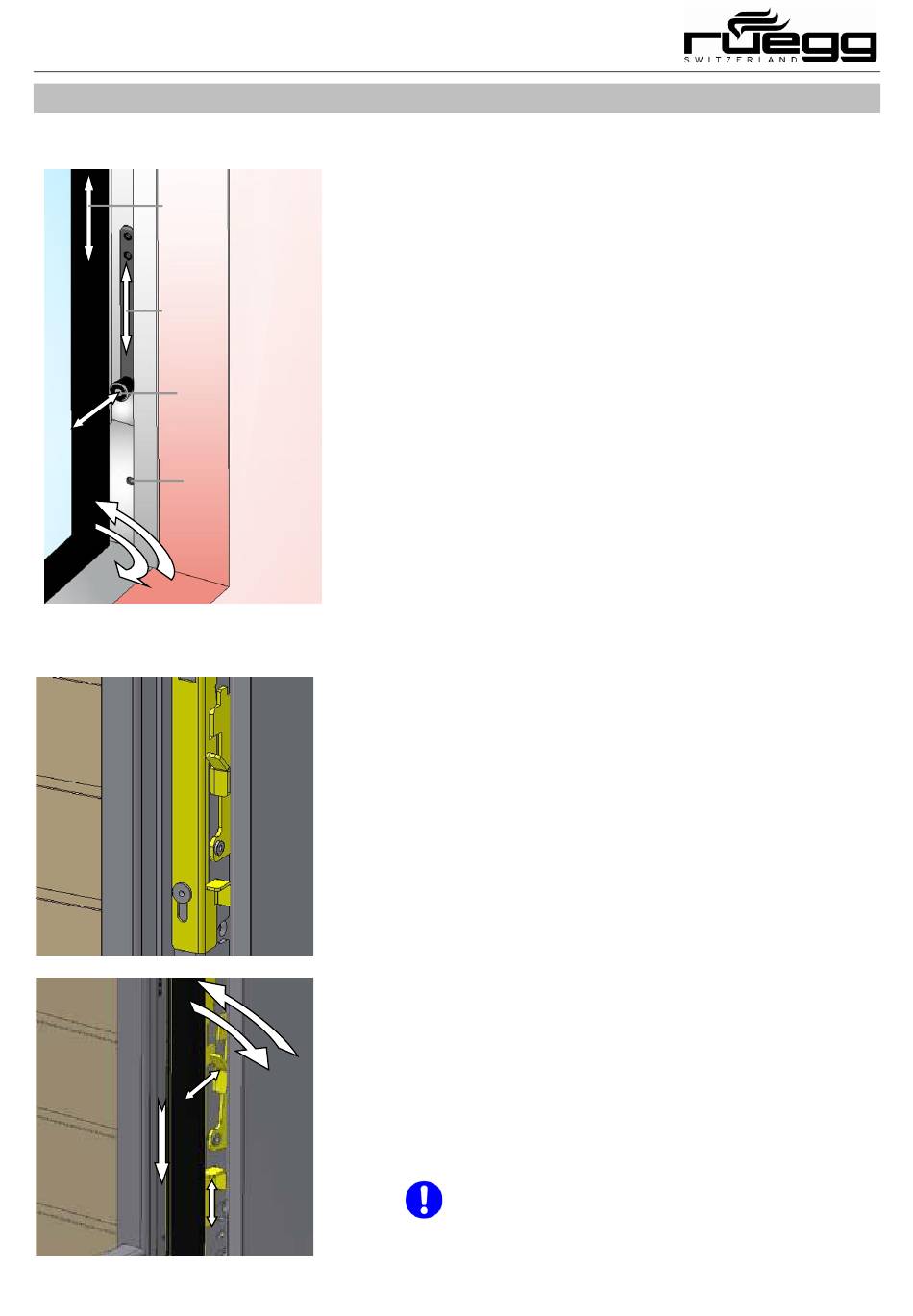

Unlocking
1 Raise the fireplace door a minimum of 20 cm
2 Pull the locking knob out
3 Slide the knob upwards until it slots into the upper hole
4 Lower the door to its original position
Opening/Closing
5 Pull the door gently open
6 Push the door gently closed
Locking
7 Raise the fireplace door a minimum of 20 cm
8 Pull the lock knob out
9 Slide the knob downwards until it slots into the lower
10 Lower the door to its original position
Situation A:
→ Drawn without the appliance door
→ Appliance door locked
→ Swinging the door open is NOT possible
Situation B:
→ Drawn with appliance door
→ Appliance door unlocked
→ Swinging the door open is possible
Close
1 → Slide the appliances door completely downwards
Unlocking (short glassside)
2 → press upper lever backwards
5
3 → press lower lever upwards
Swinginig open and closing
4 → swing door slowly open
5 → close door slowly
4
Locking (short glasside)
6 → Press down lower lever
7 → Pull upper lever forward
→ Cannot be swung open
→ Can be swung open
hole
The lower lever can only be operated after secur-
ing with the upper lever
