Description of a Convection Fireplace

9
Instruction Manual

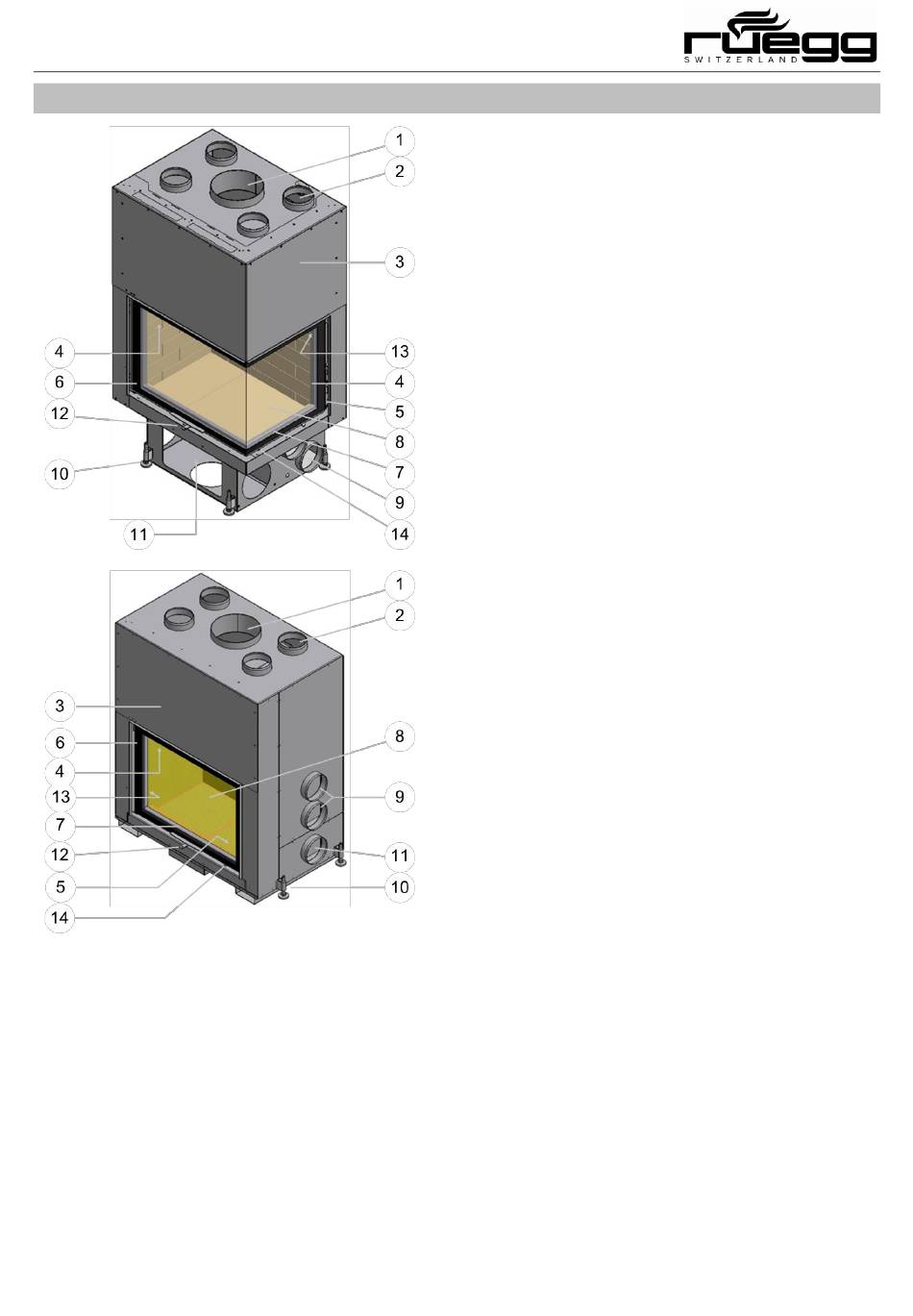

1 Flue gas exhaust outlet
2 Hot air outlet
3 Door fairing
4 Airwash system (for cleaning the glass)
5 Door locking latch
6 Fireplace door (retractable, sliding)
7 Combustion air supply
8 Fireplace (firebrick or steel, without cast-iron
grate, with vermiculite baffle on certain models)
9 Ambient air inlet
Fresh air intake (external air)
10 Height-adjustable foot
11 Combustion air intake
12 Combustion air intake control
13 Nameplate
14 Grate securing socket
