21 Dismantling, Recycling and/or Disposal

At the end of the life cycle, observe the following information for the disassembly, recycling and/or dis-
posal of your device.
Damaged components!
Damaged components can cause cuts.
•
Wear protective gloves !

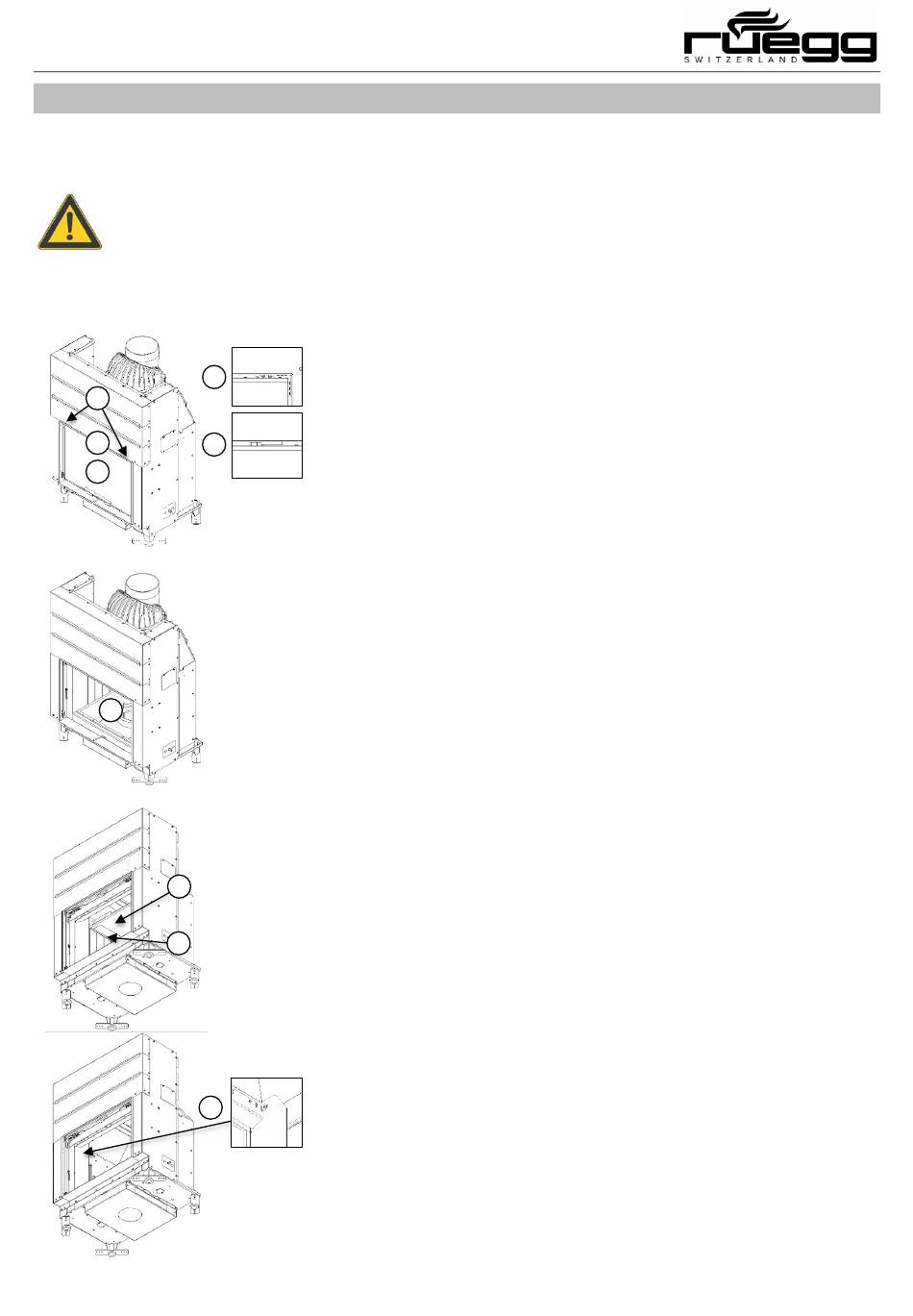

21.1 Dismantling Axinit Front S / Larimar Front S
1
2
3
4
5
6
7
Instruction Manual
1
2
1. Unscrew the lever on both sides.
→ this prevents the counterweight from falling.
2. Release the lever for opening the door.
3. Tilt the door forward with the handle and lift it off the
hinges.
4. Remove the flue pipe support plate, the support and
the firebox floor from the interior.
5. Remove all the baffle plates.
6. Unscrew the fireclay retaining brackets and then re-
move the inserted fireclay bricks from the furnace
chamber.
7. Unscrew the screws connecting the airwash ducts to
the air duct on both sides. Then remove the airwash
channels on both sides.
