10 Adjustment and Regulation

3
1,2
5/6/7
Instruction Manual
4
8
5/6/7

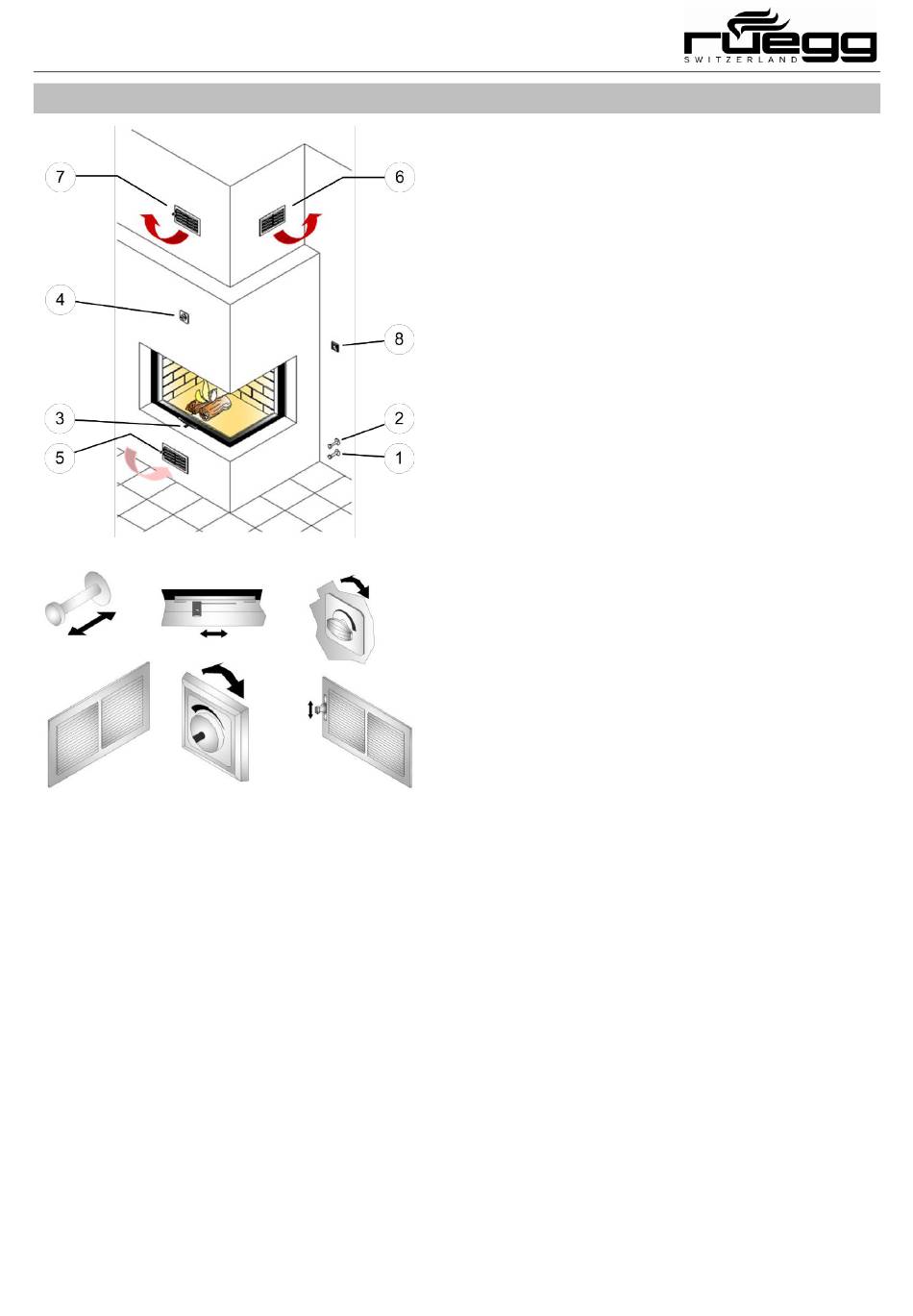

1 Fresh-air regulator (external convection air)
2 Fresh-air regulator (AIR-Direct; external combus-
tion air)
3 Combustion-air intake control
4 Smoke regulator control button
5 Ambiant convection air intake vent
6/7 Hot convection air outlet vent
(at least 1 of the outlet vents must be non-closa-
ble)
8 Convection-air fan speed-control (optional)
