AXINIT, LARIMAR
& ECO 720

11 Convection Air System Operation

D
Ventilator
(optional)
E
B
C
Instruction Manual

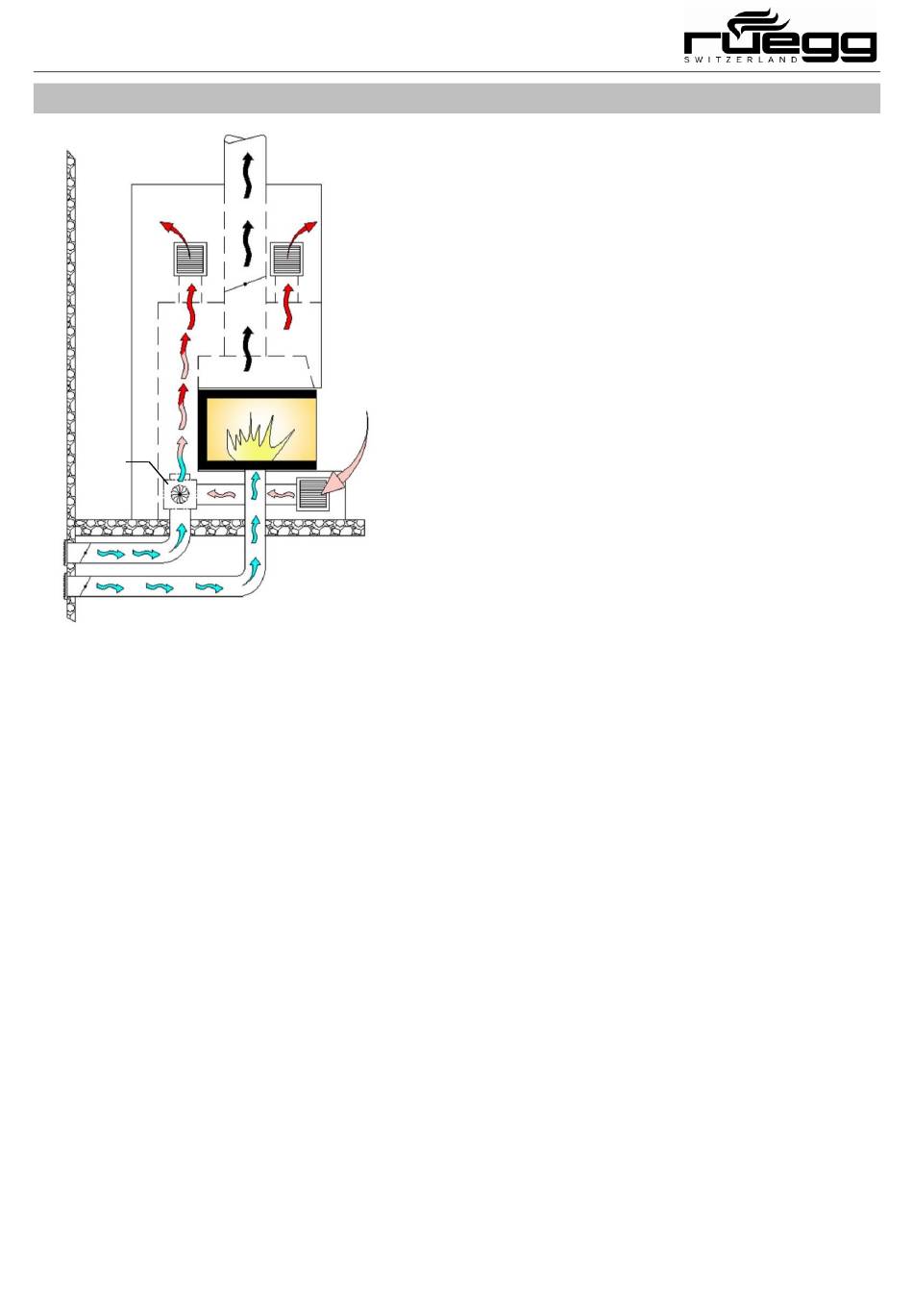

In convection air systems, part of the heat produced by com-
bustion is blown into the room by the air flow moving through
the convection jacket, the ducts and the convection-air
grates. Depending on needs, fireplaces are designed either
for operation using natural convection (S fireplaces) or by
D
fan-driven convection (V fireplaces).
A: Convection air inlet (ambient air)
B: AIR-Direct combustion air entry (external air)
C: Sealable fresh air regulators (external air)
D: Convection air vent (hot air)
E: Convection air inlet (external air)
A
33
→
feeds fresh air directly into the fireplace
→
At least 1 outlet vent must be unclosable
→
Required for open-hearth operation
