AXINIT, LARIMAR
& ECO 720

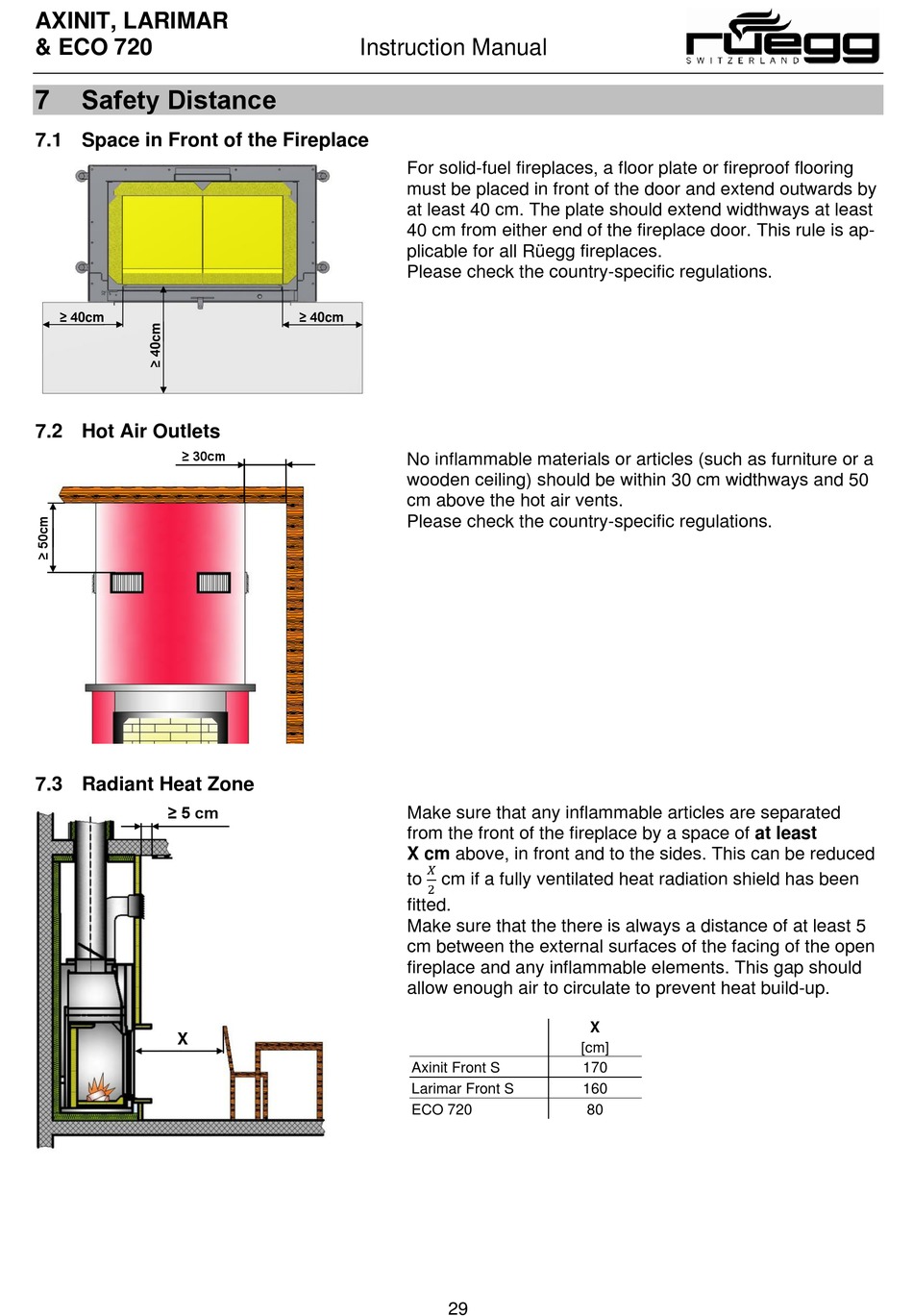

Safety Distance

7

7.1 Space in Front of the Fireplace

≥ 40cm
7.2 Hot Air Outlets
≥ 30cm
7.3 Radiant Heat Zone
≥ 5 cm
X
Instruction Manual
For solid-fuel fireplaces, a floor plate or fireproof flooring
must be placed in front of the door and extend outwards by
at least 40 cm. The plate should extend widthways at least
40 cm from either end of the fireplace door. This rule is ap-
plicable for all Rüegg fireplaces.
Please check the country-specific regulations.
≥ 40cm
No inflammable materials or articles (such as furniture or a
wooden ceiling) should be within 30 cm widthways and 50
cm above the hot air vents.
Please check the country-specific regulations.
Make sure that any inflammable articles are separated
from the front of the fireplace by a space of at least
X cm above, in front and to the sides. This can be reduced
��
to cm if a fully ventilated heat radiation shield has been
2
fitted.
Make sure that the there is always a distance of at least 5
cm between the external surfaces of the facing of the open
fireplace and any inflammable elements. This gap should
allow enough air to circulate to prevent heat build-up.
Axinit Front S
Larimar Front S
ECO 720
29
X
[cm]
170
160
80
