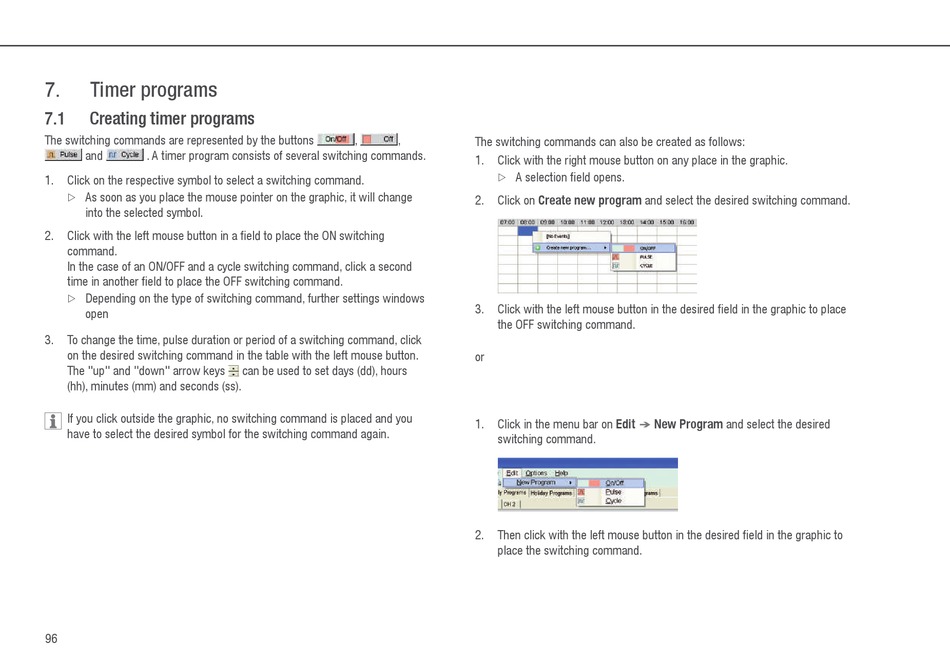

7.

Timer programs

7.1 Creating timer programs
The switching commands are represented by the buttons
and . A timer program consists of several switching commands.
1. Click on the respective symbol to select a switching command.
As soon as you place the mouse pointer on the graphic, it will change
 Z
into the selected symbol.
2. Click with the left mouse button in a field to place the ON switching
command.
In the case of an ON/OFF and a cycle switching command, click a second
time in another field to place the OFF switching command.
Depending on the type of switching command, further settings windows
 Z
open
3. To change the time, pulse duration or period of a switching command, click
on the desired switching command in the table with the left mouse button.
The "up" and "down" arrow keys
(hh), minutes (mm) and seconds (ss).
If you click outside the graphic, no switching command is placed and you
have to select the desired symbol for the switching command again.
96
, ,
can be used to set days (dd), hours
The switching commands can also be created as follows:
1. Click with the right mouse button on any place in the graphic.
A selection field opens.
 Z
2. Click on Create new program and select the desired switching command.
3. Click with the left mouse button in the desired field in the graphic to place
the OFF switching command.
or
1. Click in the menu bar on Edit

switching command.
2. Then click with the left mouse button in the desired field in the graphic to
place the switching command.
New Program and select the desired
