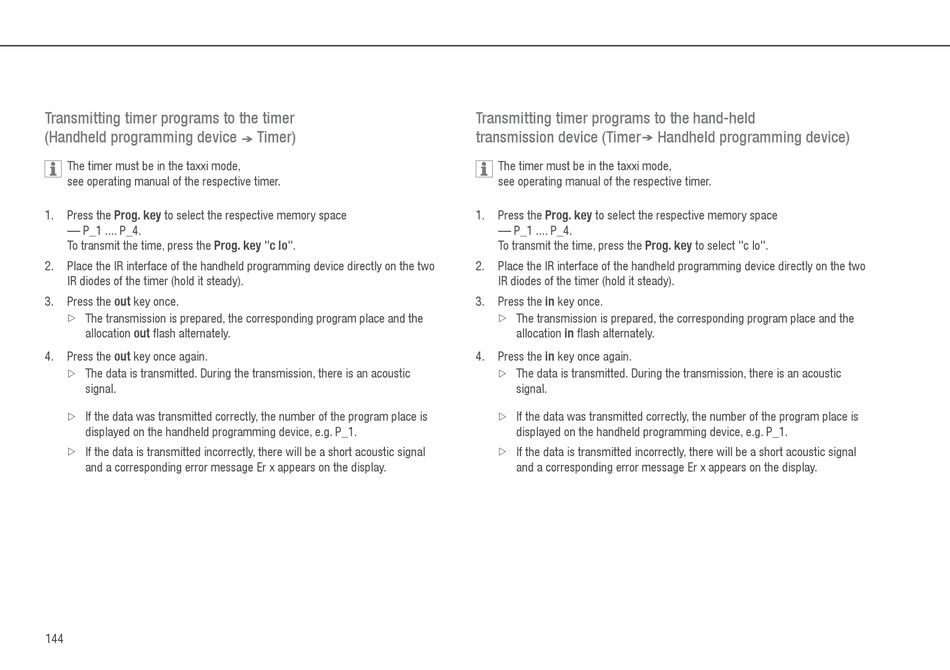

Transmitting timer programs to the timer
(Handheld programming device
The timer must be in the taxxi mode,
see operating manual of the respective timer.
1. Press the Prog. key to select the respective memory space
–– P_1 .... P_4.
To transmit the time, press the Prog. key "c lo".
2. Place the IR interface of the handheld programming device directly on the two
IR diodes of the timer (hold it steady).
Press the out key once.
3.
The transmission is prepared, the corresponding program place and the
 Z
allocation out flash alternately.
4. Press the out key once again.
The data is transmitted. During the transmission, there is an acoustic
 Z
signal.
If the data was transmitted correctly, the number of the program place is
 Z
displayed on the handheld programming device, e.g. P_1.
If the data is transmitted incorrectly, there will be a short acoustic signal
 Z
and a corresponding error message Er x appears on the display.
144
Timer)

Transmitting timer programs to the hand-held
transmission device (Timer Handheld programming device)

The timer must be in the taxxi mode,
see operating manual of the respective timer.
1. Press the Prog. key to select the respective memory space
–– P_1 .... P_4.
To transmit the time, press the Prog. key to select "c lo".
2. Place the IR interface of the handheld programming device directly on the two
IR diodes of the timer (hold it steady).
Press the in key once.
3.
The transmission is prepared, the corresponding program place and the
 Z
allocation in flash alternately.
4. Press the in key once again.
The data is transmitted. During the transmission, there is an acoustic
 Z
signal.
If the data was transmitted correctly, the number of the program place is
 Z
displayed on the handheld programming device, e.g. P_1.
If the data is transmitted incorrectly, there will be a short acoustic signal
 Z
and a corresponding error message Er x appears on the display.
