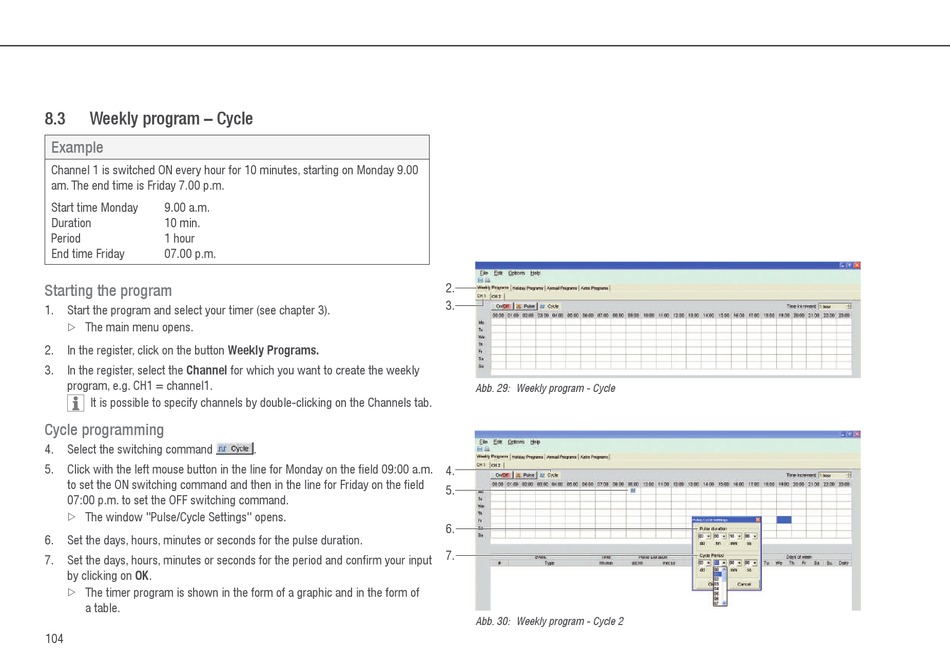

8.3 Weekly program – Cycle
Example
Channel 1 is switched ON every hour for 10 minutes, starting on Monday 9.00
am. The end time is Friday 7.00 p.m.
Start time Monday 9.00 a.m.
Duration 10 min.
Period 1 hour
End time Friday 07.00 p.m.
Starting the program
1. Start the program and select your timer (see chapter 3).
The main menu opens.
 Z
In the register, click on the button Weekly Programs.
2.
3. In the register, select the Channel for which you want to create the weekly
program, e.g. CH1 = channel1.
It is possible to specify channels by double-clicking on the Channels tab.
Cycle programming
4. Select the switching command
5. Click with the left mouse button in the line for Monday on the field 09:00 a.m.
to set the ON switching command and then in the line for Friday on the field
07:00 p.m. to set the OFF switching command.
The window "Pulse/Cycle Settings" opens.
 Z
6. Set the days, hours, minutes or seconds for the pulse duration.
7. Set the days, hours, minutes or seconds for the period and confirm your input
by clicking on OK.
The timer program is shown in the form of a graphic and in the form of
 Z
a table.
104
.
2.
3.
Abb. 29: Weekly program - Cycle
4.
5.
6.
7.
Abb. 30: Weekly program - Cycle 2
