8.

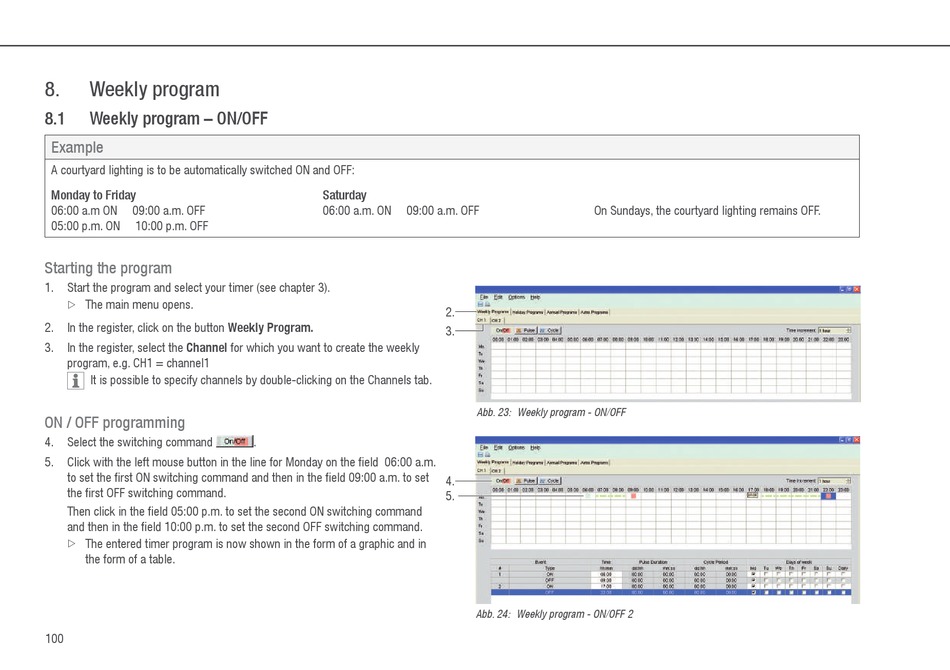

Weekly program

8.1 Weekly program – ON/OFF
Example
A courtyard lighting is to be automatically switched ON and OFF:
Monday to Friday
06:00 a.m ON 09:00 a.m. OFF
05:00 p.m. ON 10:00 p.m. OFF

Starting the program

1. Start the program and select your timer (see chapter 3).
The main menu opens.
 Z
2. In the register, click on the button Weekly Program.
3. In the register, select the Channel for which you want to create the weekly
program, e.g. CH1 = channel1
It is possible to specify channels by double-clicking on the Channels tab.
ON / OFF programming
4. Select the switching command
5. Click with the left mouse button in the line for Monday on the field 06:00 a.m.
to set the first ON switching command and then in the field 09:00 a.m. to set
the first OFF switching command.
Then click in the field 05:00 p.m. to set the second ON switching command
and then in the field 10:00 p.m. to set the second OFF switching command.
The entered timer program is now shown in the form of a graphic and in
 Z
the form of a table.
100
Saturday
06:00 a.m. ON 09:00 a.m. OFF
.
On Sundays, the courtyard lighting remains OFF.
2.
3.
Abb. 23: Weekly program - ON/OFF
4.
5.
Abb. 24: Weekly program - ON/OFF 2
