Load From File; Load From Handheld Programming Device - Grasslin Talento Dialog Bedienungsanleitung

3.2 Load from file
3. Click on , to open an already stored timer program.
This will open the window "Open".
 Z
4. Select the folder in which the file is stored.
5. Open the file by double-click or select the file and click on
The program is loaded and opened in the main window.
 Z
3.3

Load from handheld programming device

3. Click on , to load a timer program from a handheld
programming device.
4. In the Read from Port box, select the serial interface to which the handheld
programming device is connected.
5. In the Program place box, select the desired memory space to be loaded.
6. Confirm your input by pressing
The program is loaded and opened in the main window.
 Z
80
.
.

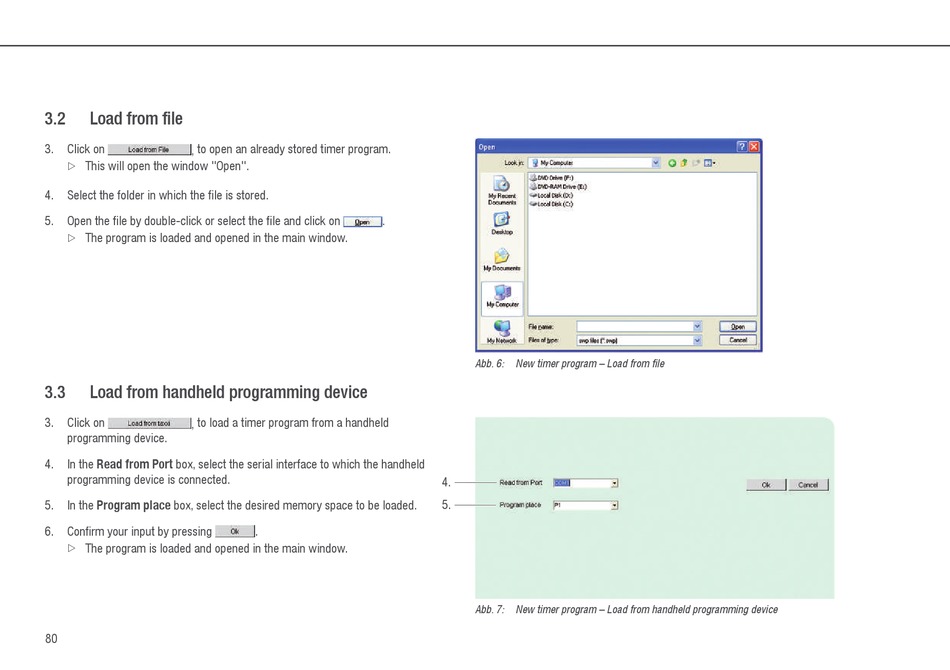

Abb. 6: New timer program – Load from file
4.
5.
Abb. 7: New timer program – Load from handheld programming device
