3.

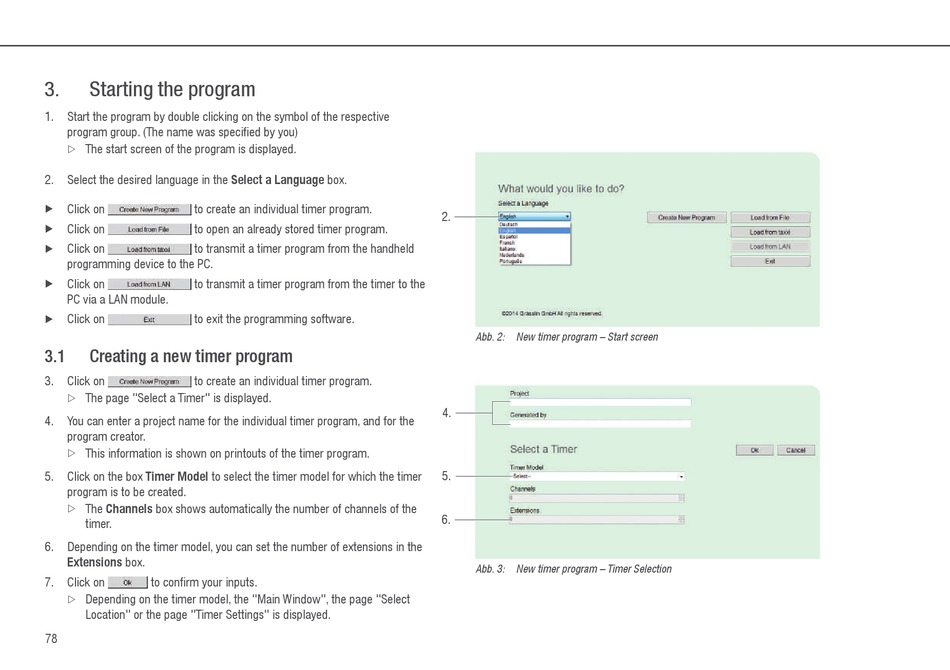

Starting the program

1. Start the program by double clicking on the symbol of the respective
program group. (The name was specified by you)
The start screen of the program is displayed.
 Z
2. Select the desired language in the Select a Language box.
Click on to create an individual timer program.
 Z
Click on to open an already stored timer program.
 Z
Click on to transmit a timer program from the handheld
 Z
programming device to the PC.
Click on to transmit a timer program from the timer to the
 Z
PC via a LAN module.
Click on to exit the programming software.
 Z
3.1 Creating a new timer program
3. Click on to create an individual timer program.
The page "Select a Timer" is displayed.
 Z
4. You can enter a project name for the individual timer program, and for the
program creator.
This information is shown on printouts of the timer program.
 Z
5. Click on the box Timer Model to select the timer model for which the timer
program is to be created.
The Channels box shows automatically the number of channels of the
 Z
timer.
6. Depending on the timer model, you can set the number of extensions in the
Extensions box.
7. Click on to confirm your inputs.
Depending on the timer model, the "Main Window", the page "Select
 Z
Location" or the page "Timer Settings" is displayed.
78
2.
Abb. 2: New timer program – Start screen
4.
5.
6.
Abb. 3: New timer program – Timer Selection
