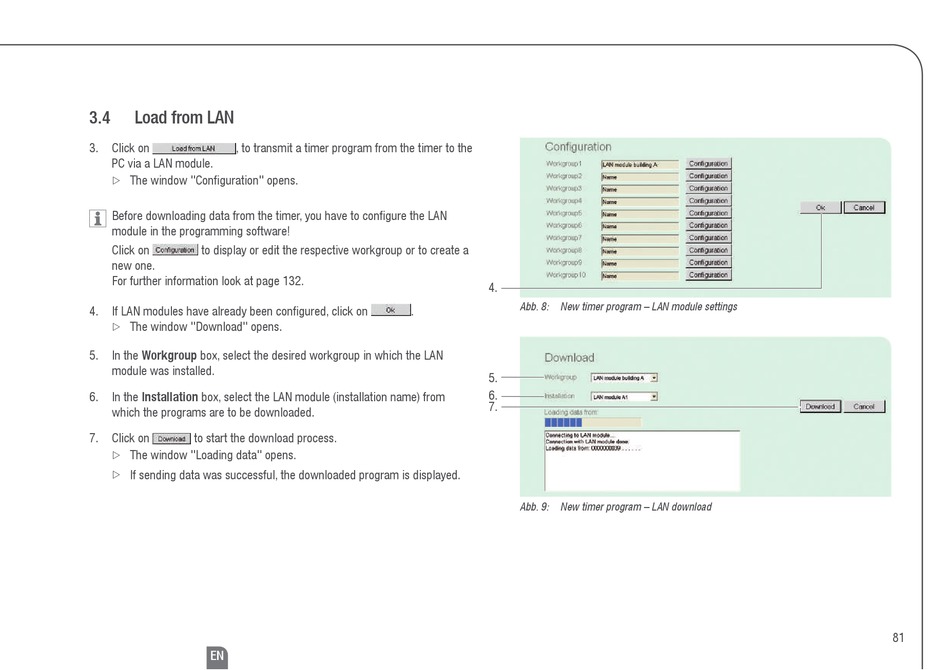

3.4

Load from LAN

3. Click on , to transmit a timer program from the timer to the
PC via a LAN module.
The window "Configuration" opens.
 Z
Before downloading data from the timer, you have to configure the LAN
module in the programming software!
Click on to display or edit the respective workgroup or to create a
new one.
For further information look at page 132.
4. If LAN modules have already been configured, click on
The window "Download" opens.
 Z
5. In the Workgroup box, select the desired workgroup in which the LAN
module was installed.
6. In the Installation box, select the LAN module (installation name) from
which the programs are to be downloaded.
7. Click on to start the download process.
The window "Loading data" opens.
 Z
If sending data was successful, the downloaded program is displayed.
 Z
EN
4.
Abb. 8: New timer program – LAN module settings
.
5.
6.
7.
Abb. 9: New timer program – LAN download
81
