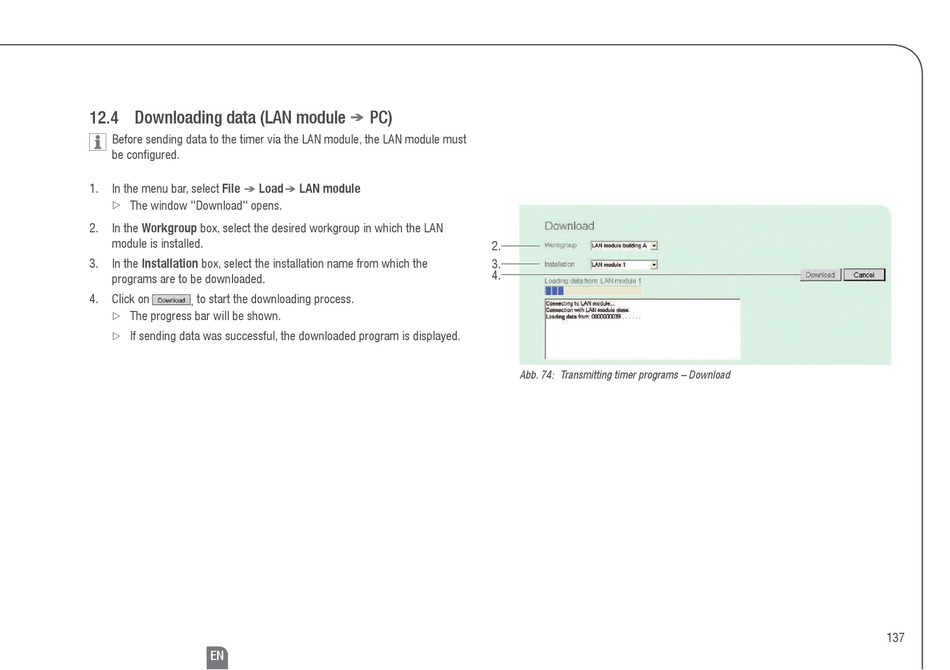

12.4 Downloading data (LAN module
Before sending data to the timer via the LAN module, the LAN module must
be configured.
1. In the menu bar, select File Load

The window "Download" opens.
 Z
2. In the Workgroup box, select the desired workgroup in which the LAN
module is installed.
3. In the Installation box, select the installation name from which the
programs are to be downloaded.
4. Click on , to start the downloading process.
The progress bar will be shown.
 Z
If sending data was successful, the downloaded program is displayed.
 Z
EN
PC)

LAN module

2.
3.
4.
Abb. 74: Transmitting timer programs – Download
137
