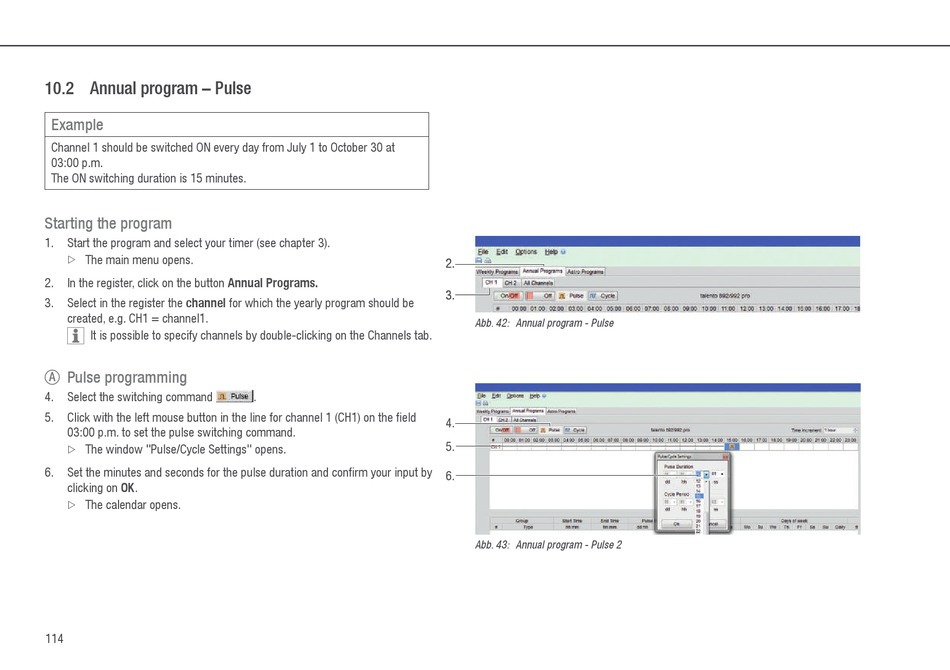

10.2 Annual program – Pulse
Example
Channel 1 should be switched ON every day from July 1 to October 30 at
03:00 p.m.
The ON switching duration is 15 minutes.
Starting the program
1. Start the program and select your timer (see chapter 3).
The main menu opens.
 Z
2. In the register, click on the button Annual Programs.
3. Select in the register the channel for which the yearly program should be
created, e.g. CH1 = channel1.
It is possible to specify channels by double-clicking on the Channels tab.
Pulse programming
A
4. Select the switching command
5. Click with the left mouse button in the line for channel 1 (CH1) on the field
03:00 p.m. to set the pulse switching command.
The window "Pulse/Cycle Settings" opens.
 Z
6. Set the minutes and seconds for the pulse duration and confirm your input by
clicking on OK.
The calendar opens.
 Z
114
.
2. 2.
3. 3.
Abb. 42: Annual program - Pulse
4.
5.
6.
Abb. 43: Annual program - Pulse 2
