3. Enter the name for your workgroup, e.g. LAN modules in building A.
4. If the LAN module and the PC are located in the same local network, activate
the LAN network box.
Then click on to search already existing LAN modules in the
network. (See page 134.)
or
Deactivate the LAN network
the Internet.
IP address, TCP port and HTTP port are provided by the Dynamic DNS server.
All parameters can also be entered in the table manually:
 Z
– Name of the installation, e.g. LAN module 1
– Serial number and MAC address of the LAN module
– IP address (only active if you have activated LAN network)
– TCP port (only active if you have activated LAN network)
– HTTP port (only active if you have activated LAN network)
The column "Internet access" is filled in automatically.
Double click with the left mouse button on web to open the start screen of
the administration zone of the LAN module.
Click on to save your settings.
 Z
Click on to leave the screen without saving the settings.
 Z
Click on to configure the Internet access. (See page 135.)
 Z
EN
3.
4.
box, if you use the LAN module via

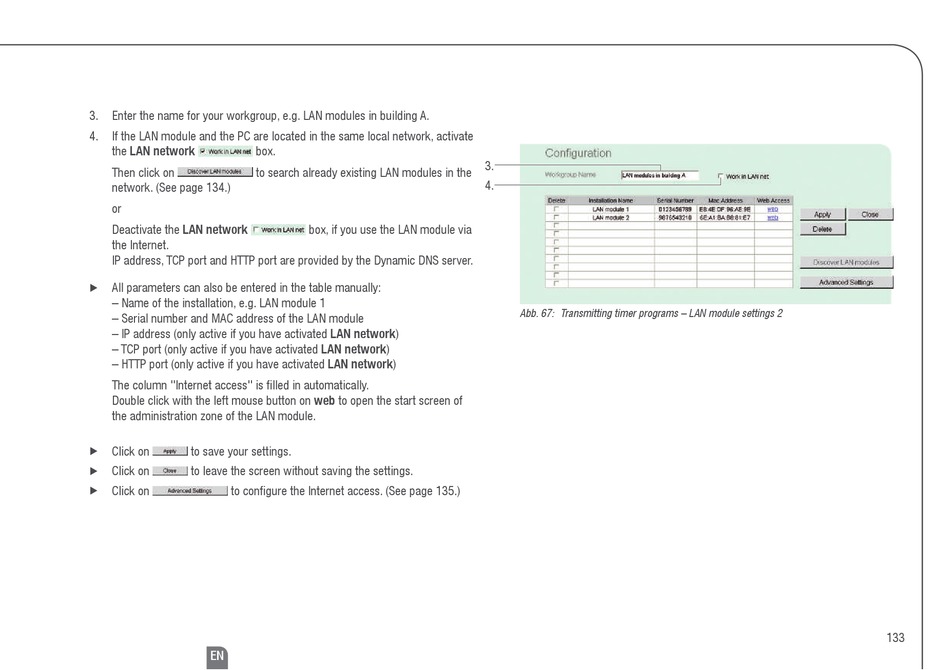

Abb. 67: Transmitting timer programs – LAN module settings 2
