14) Position the washer (E).
15) Tighten the wing bolt (B).
16) Fit the circlip.

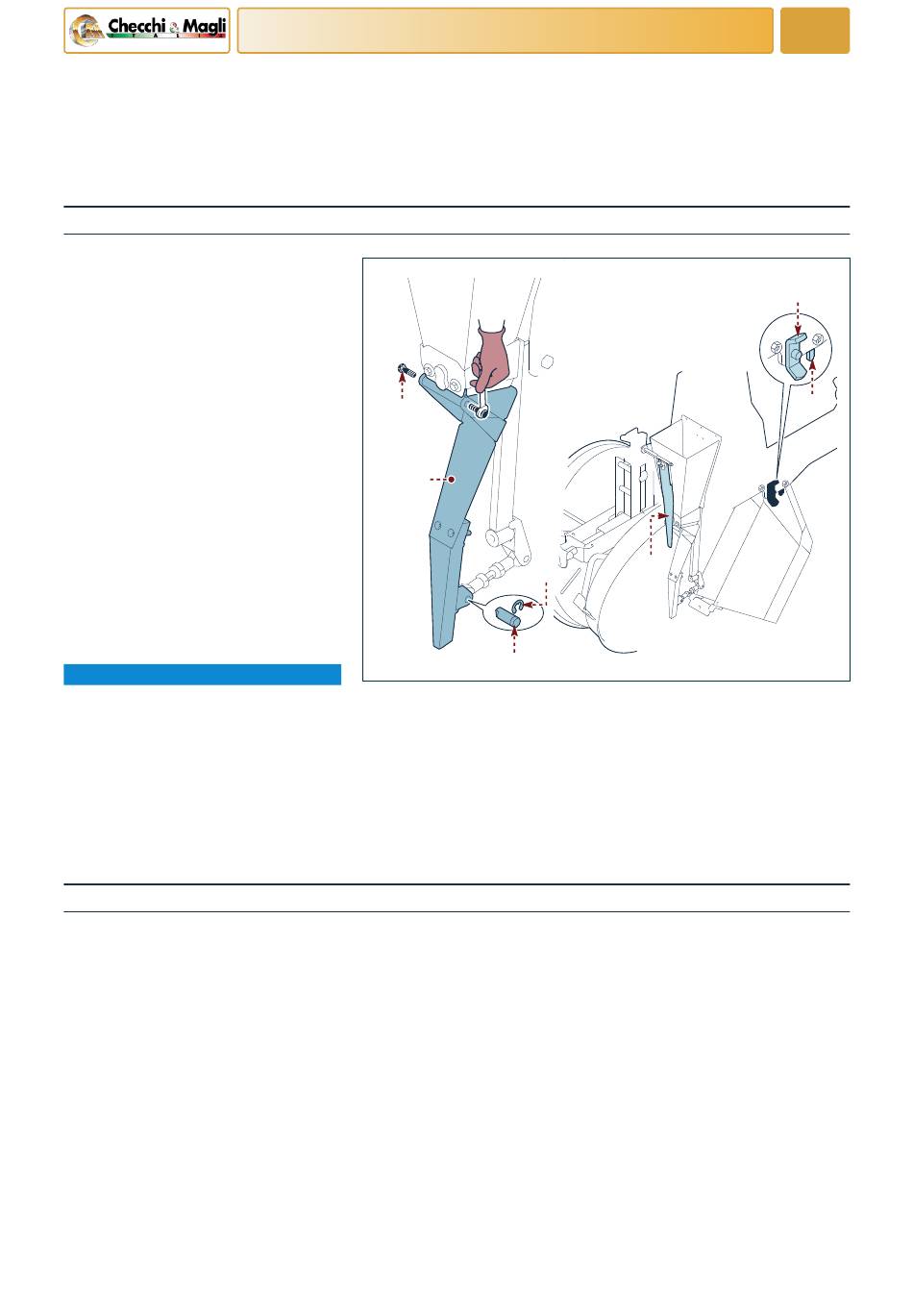

Replacing the flexible plate
Proceed as outlined below..
1)
Slightly loosen wing nut (A).
2)
Turn the lock lever (B).
3) Push the ploughshare forwards and
turn it so it is facing downwards.
4) Remove the circlip (C).
5) Slide out pin (D).
6) Undo the screws (E).
7)
Remove the flexible plate (F).
8)
Fit the new flexible plate in position.
9)
Tighten the screws (E).
10) Insert pin (D).
11) Fit the circlip.
12) Make sure the flexible plate is cen-
tred (see Adjusting the flexible plate
centring")"
NOTICE
When repositioning the ploughshare,
place the plant control device inside
the ploughshare.
13) Refit the share in the work position.
Scrapping the work vehicle
The machine scrapping procedure must be carried out
by competent personnel, who must (if necessary) carry
out a safety plan to ensure the safety of the people in-
volved in the procedure.
The components removed must be sorted according to
English language
INFORMATION CONCERNING REPLACEMENTS
- Carry out the same procedure to make the replace-
ment in the other planting units installed
E
F
UN41-0923UA
14) Check the position of the flexible plate with respect to the share
(see Adjusting the flexible plate position"). "
- Carry out the same procedure to make the replacement in the other
planting units installed
the type of materials they contain and in compliance
with the laws in force concerning "waste collection, sort-
ing and disposal".
Send the disassembled parts to authorised waste dis-
posal centres.
35
G
C
D
8
A
B
Use and maintenance
