When using two knuckle eyes, the following mounting dimensions apply:
Dimensions (in mm; 1 mm = 0.03937 inches)
Rigid force transfer
M = 15 Nm
B
M = 15 Nm
B

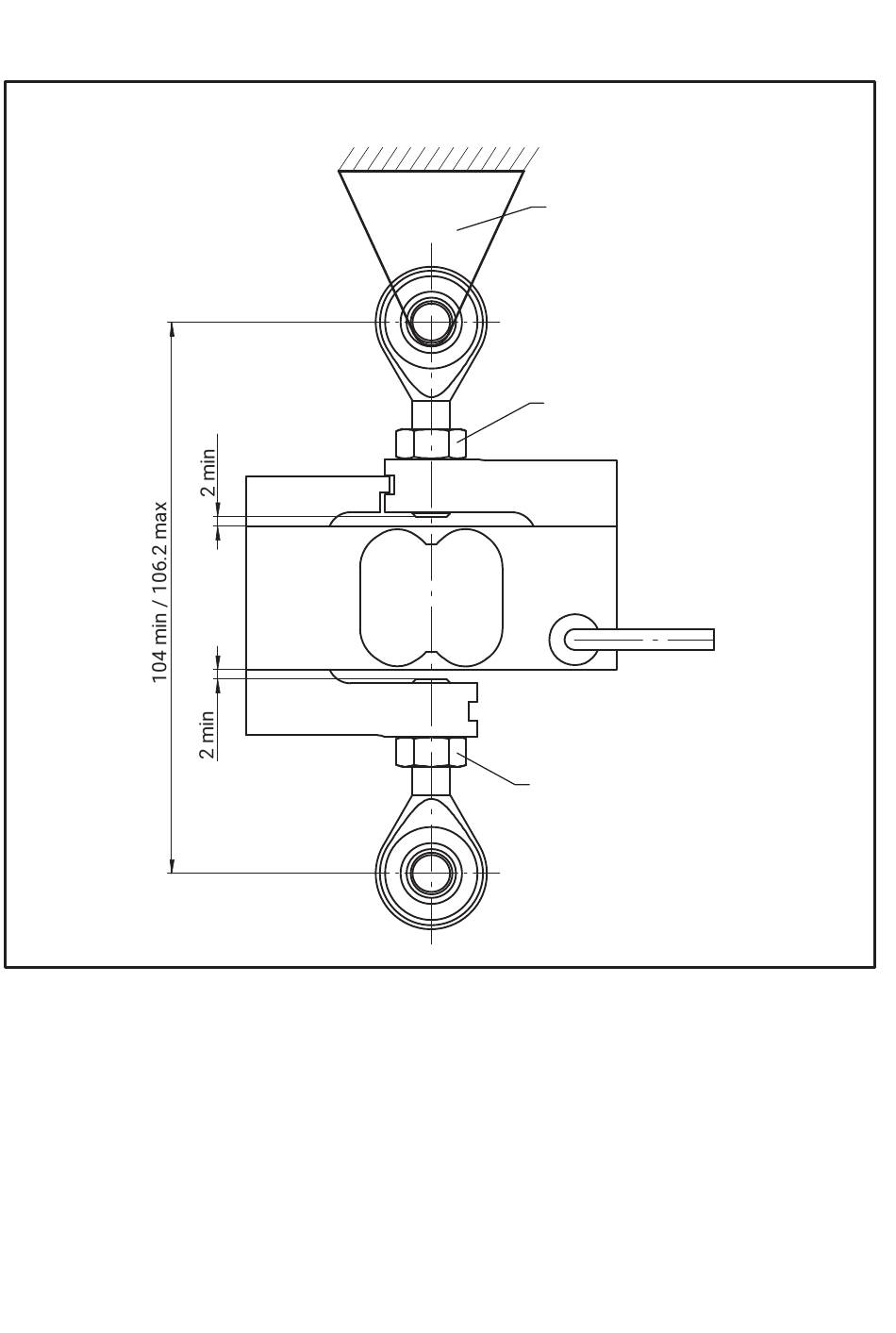

Fig. 7.5 Installation with two knuckle eyes
