Rigid force
transfer
correct

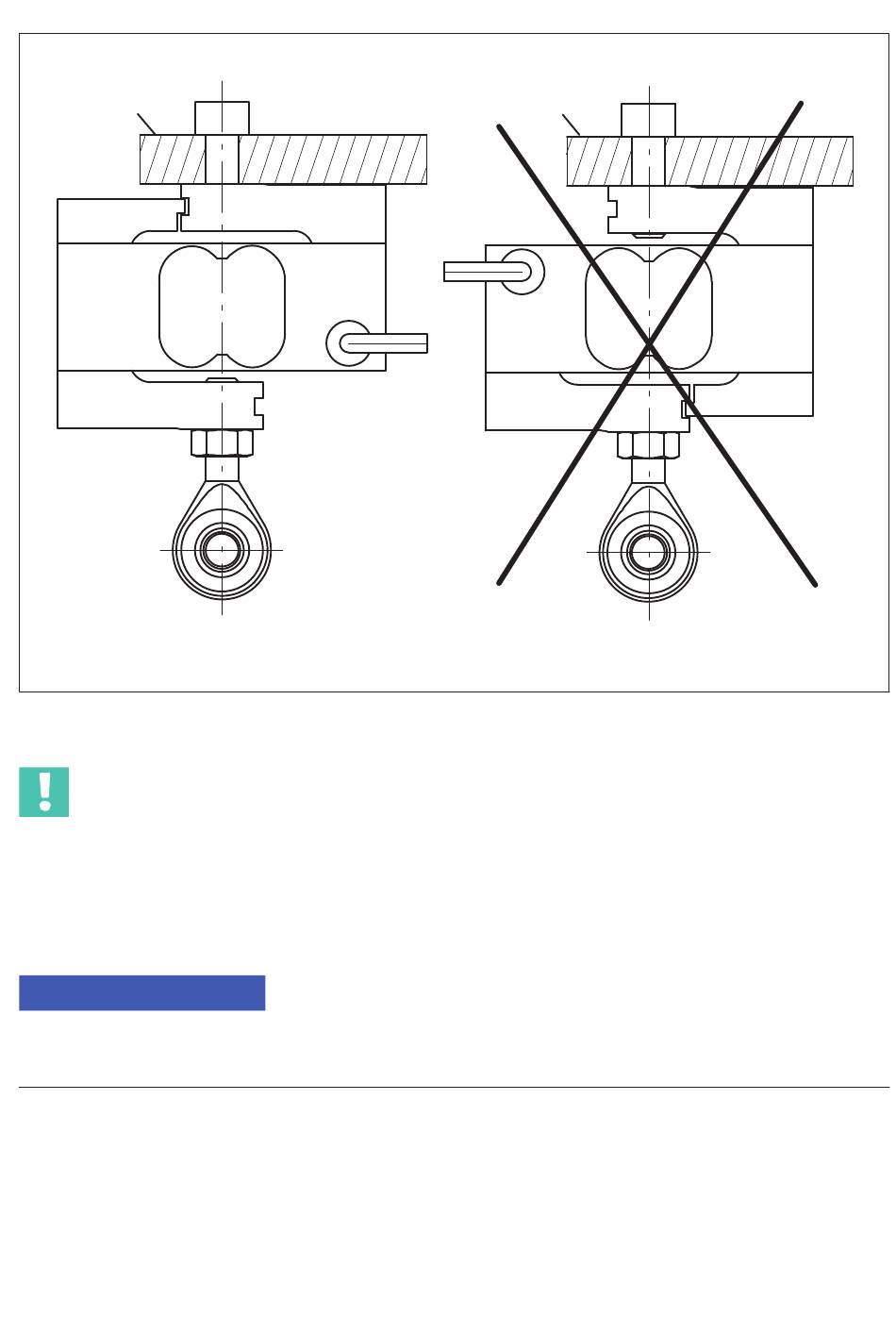

Fig. 7.1 Transducer orientation during installation
Important
The cable fastening side of the transducer should always be connected directly with the
rigid customer‐side force transfer areas. Ensure that the cable is laid so that, where pos­
sible, no force shunt is caused by the cable (e.g. through the weight or stiffness of the
cable), see Fig. 7.1.
Notice
Please note the maximum permissible load­carrying capacity of the loading fittings and of
the tension/compression bars, screws and knuckle eyes.
S2M
MECHANICAL INSTALLATION
Rigid force transfer
incorrect
