CAUTION
If there is too much distance between the knuckle eye and the shaft bearing, this generates
bending moments in the shaft, causing it to deform.
This deformation puts strain on points of the edges of the inner bearing shell, which can
cause the knuckle eye or shaft to suffer damage or break.
Select the play as recommended in the mounting instructions.
To determine the play between the knuckle eye and the shaft bearing, please use the
details from the following table:
Knuckle eye
1-U1R/200kg/ZGW
Tab. 7.2 Determining the play between knuckle eye and shaft bearing

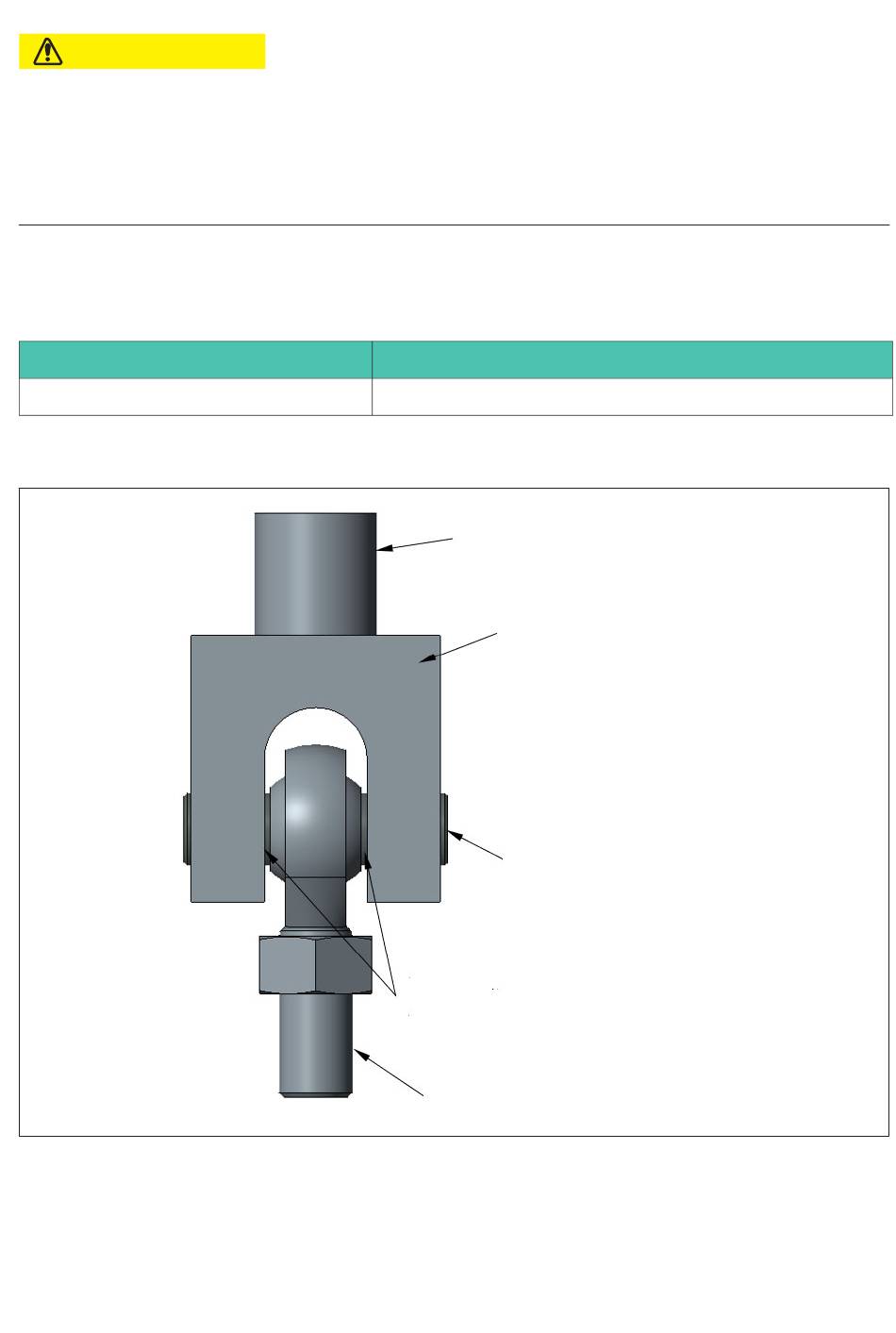

Fig. 7.3 Example diagram of installation with knuckle eye
S2M
MECHANICAL INSTALLATION
Play between knuckle eye and shaft bearing
Customer's construction
Customer's shaft holder
Shaft
Recommended play,
see Tab. 7.2, page 17
Threaded connector for mounting
on force transducers
0.8 mm
17
