11. Charging station configuration

No vehicle must be connected when the charging station is switched on.
If the key lock has been activated in the charging station configuration, then for any action on the station such as configuration, vehicle charging,
mode change, forcing the charge, charge release or switching to hotspot mode, the station must be in the unlocked position (key in the ON
position).

11.1. Charging station configuration procedure

On leaving the factory, the charging station is pre-configured to operate with its configuration. An example configuration with a detailed
description is provided in step 7 "Edit configuration".
To modify certain charging station operating parameters, according to the electrical installation and/or your customer requirements, a blank USB
flash drive must be used for each new installation (supplied with those stations with a TIC board). For charging stations that do not have a TIC
board, use a 1 to 4 GB USB flash drive in FAT32 format.
If, however, the factory settings comply with the customer's end use, please go directly to chapter 13. Charging station
closure.

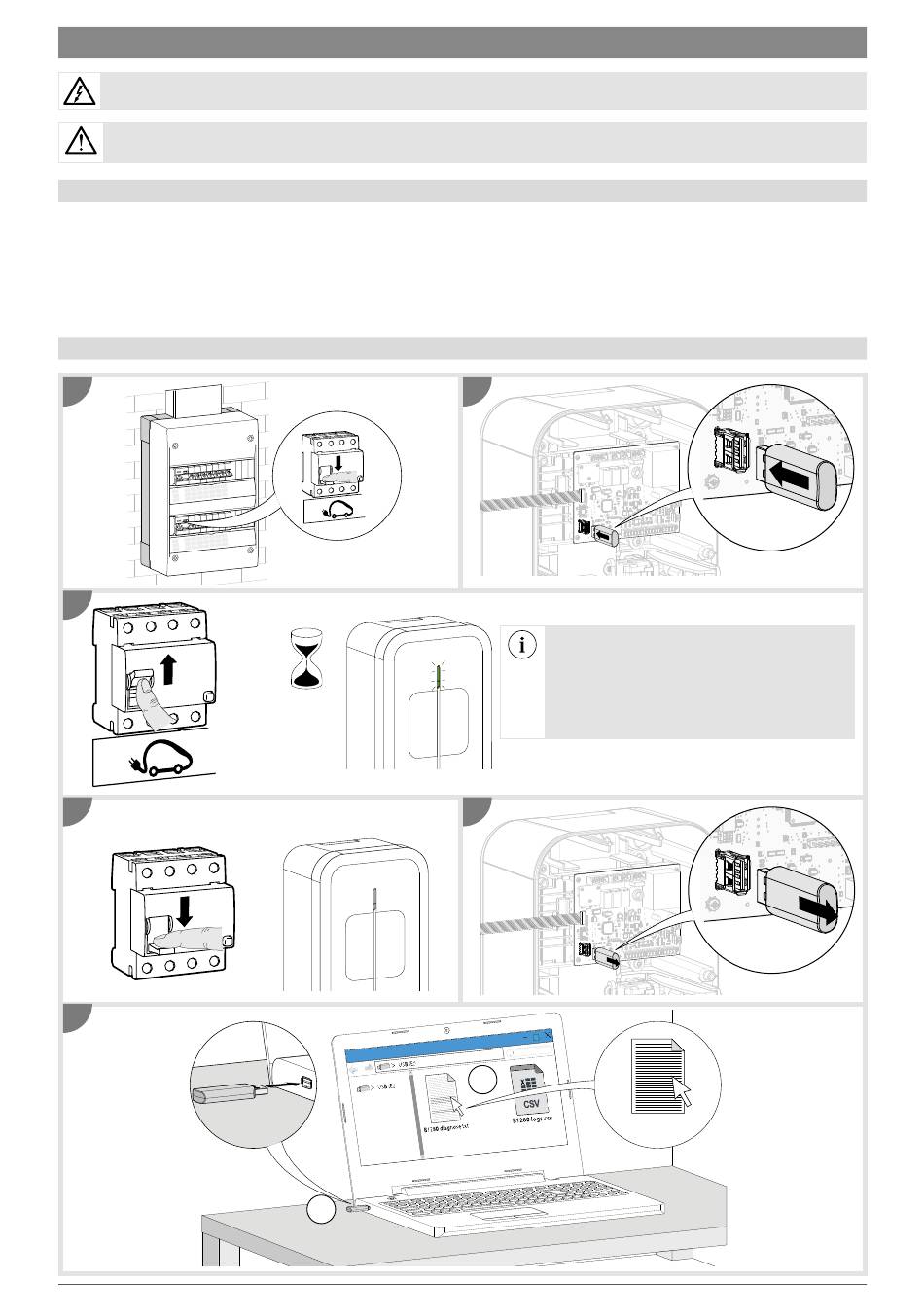

11.2. Modify the settings using a USB flash drive

1
3
ON
4
6
40
OFF
steady green
15 s
indicator light off
1
2
• If the charging station is equipped with a TIC board,
please wait 60 seconds for all of the parameters of the
electric meter to be taken into account.
• After a few seconds, the green LED on the controller
board lights up, flashes twice and then stays on. The
"B1280 diagnose.txt" configuration file was copied to
the flash drive as well as a "B1280 logs.csv" log file,
which traces all the events that have taken place on the
charging station. This file is empty at the first charge.
5
2
B1280 diagnose.txt
