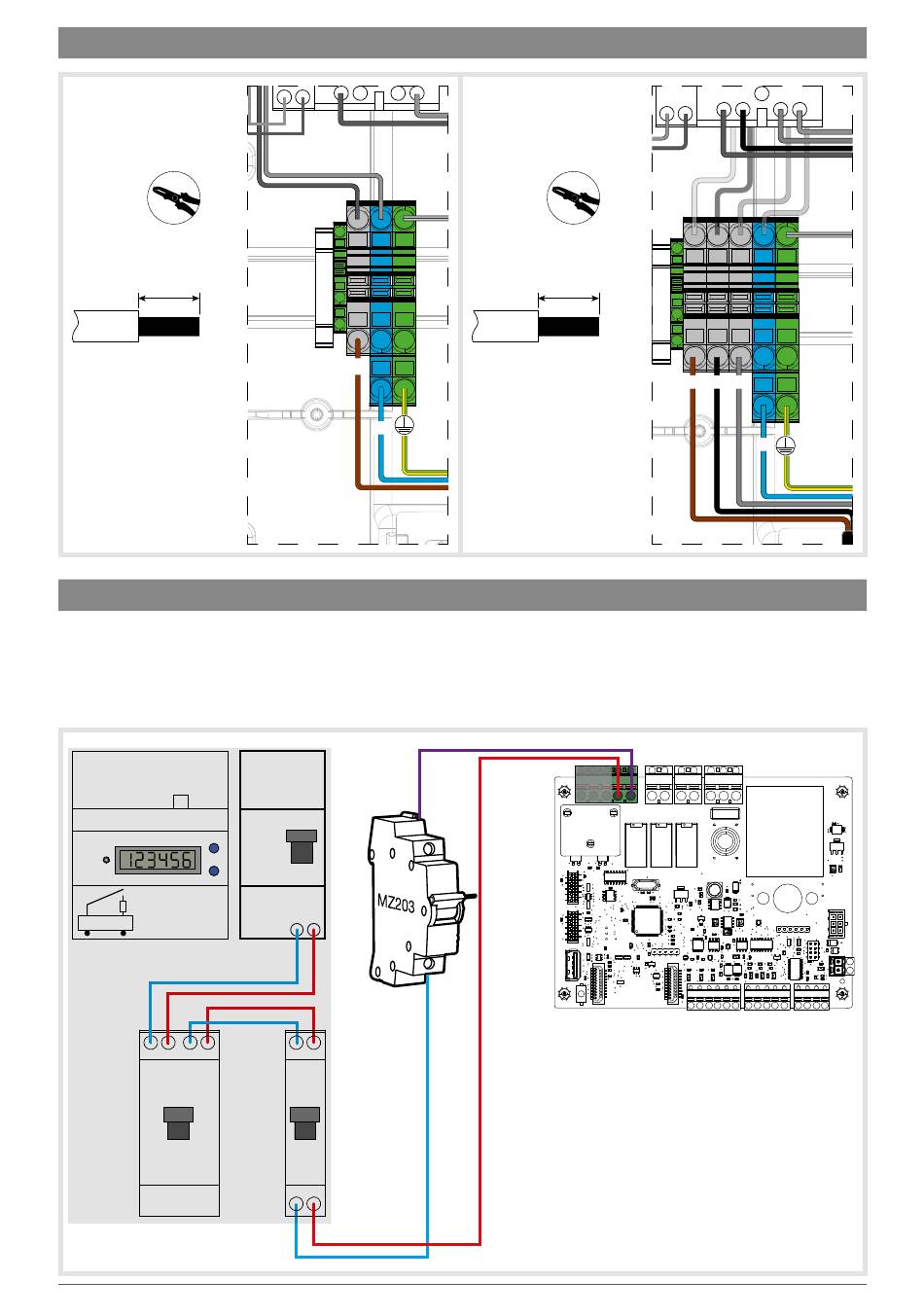

7. Power cabling

• Single-phase charging
station power cabling:
1 Ph + N + E
16,5 mm

8. Wiring the shunt coil MZ203 (Shunt Trip function)

The shunt coil - 230/415 V AC - HAGER MZ203 is an additional, non-compulsory safety mechanism that complements the mandatory differential
switch + circuit breaker pairing, in order to ensure the complete electrical protection of your charging station. It is implemented to cut the power to
the charging station in the event that the contactor of the T2/T2S socket becomes stuck.
The shunt coil must be present in order to obtain ZE Ready certification.
It couples to the circuit breaker, enabling it to be tripped remotely.
C1 C2
N N
ID 30 mA
L1
N
C1
N
C2
N L
N
The circuit
breaker (ref.
MFN702)
2 A is not
2A
supplied with
the charging
N
station
• Three-phase charging
station power cabling:
3 Ph + N + E
16,5 mm
ST ST
Shunt trip wire
diameter:
2 x 1.5 mm
2
ESC440
L1 L2 L3
N
