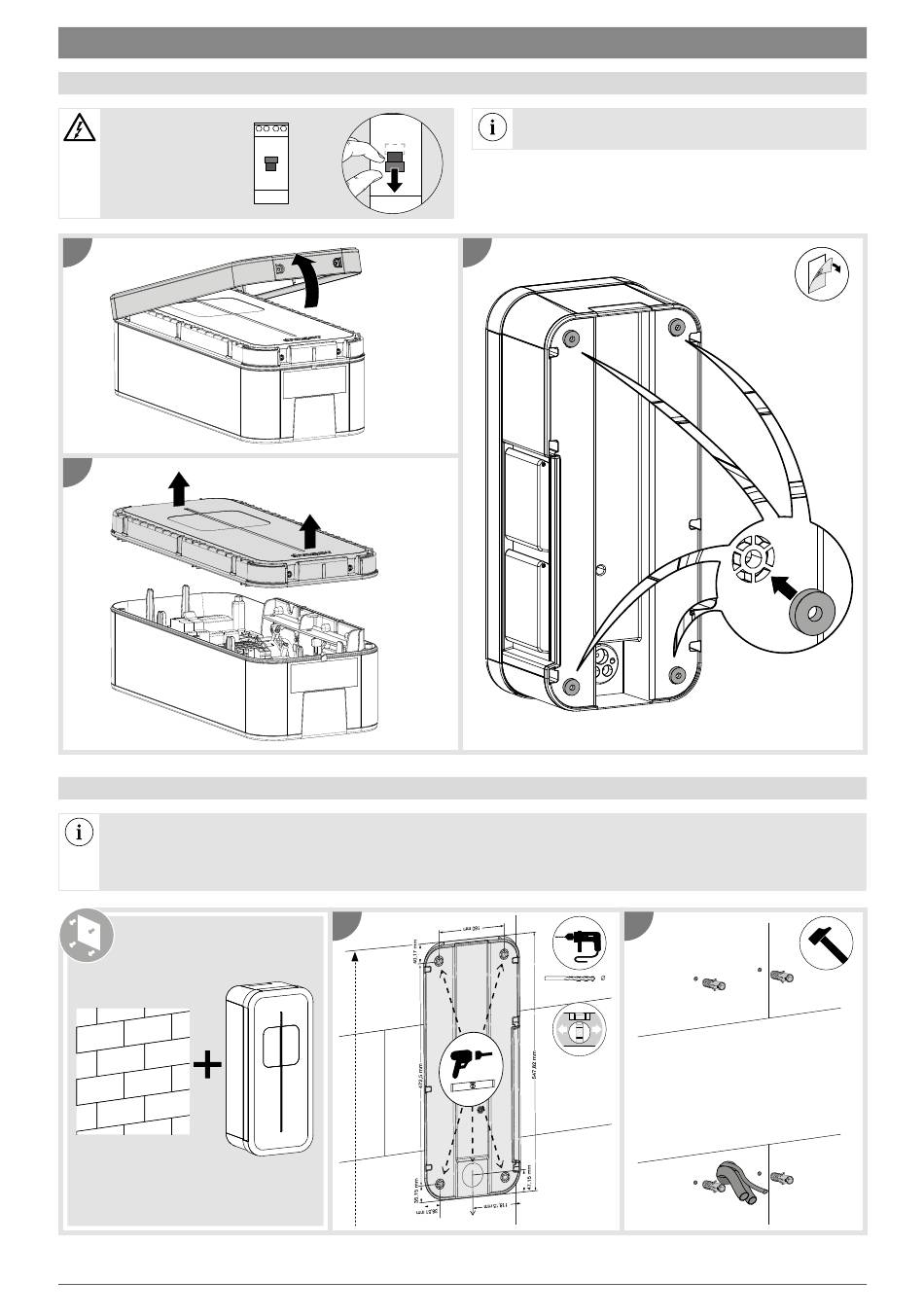

6. Installation

6.1. Opening

The charging station
must be switched off
before opening.
1
2

6.2. Mounting

Before mounting the charging station, please ensure that all of the cables are present:
• 3 Ph + N + Earth for a three-phase charging station, wire diameter: 5G10 or 5G16 flexible or rigid or 1Ph + N + Earth for a single-phase charging
station, wire diameter: 3G10 or 3G16 flexible or rigid,
• an SYT2 remote reading cable, or failing that, a cable with 1 twisted pair (wired connection) with a TIC board,
• a 2-wire cable (2 x 1.5 mm
• the minimum wire diameter for a charging station with a current rated at 32 A is 10 mm².
N N
N N
ID 30 mA
ID 30 mA
) for the "Shunt Trip" function and/or the Day/Night (D/N) function (optional),
2
1
1.3 m
from
the
floor
When leaving the factory, the frame and the front panel are not
screwed on, and the cable of the front LED electronic board is not
connected.
3
2
8
