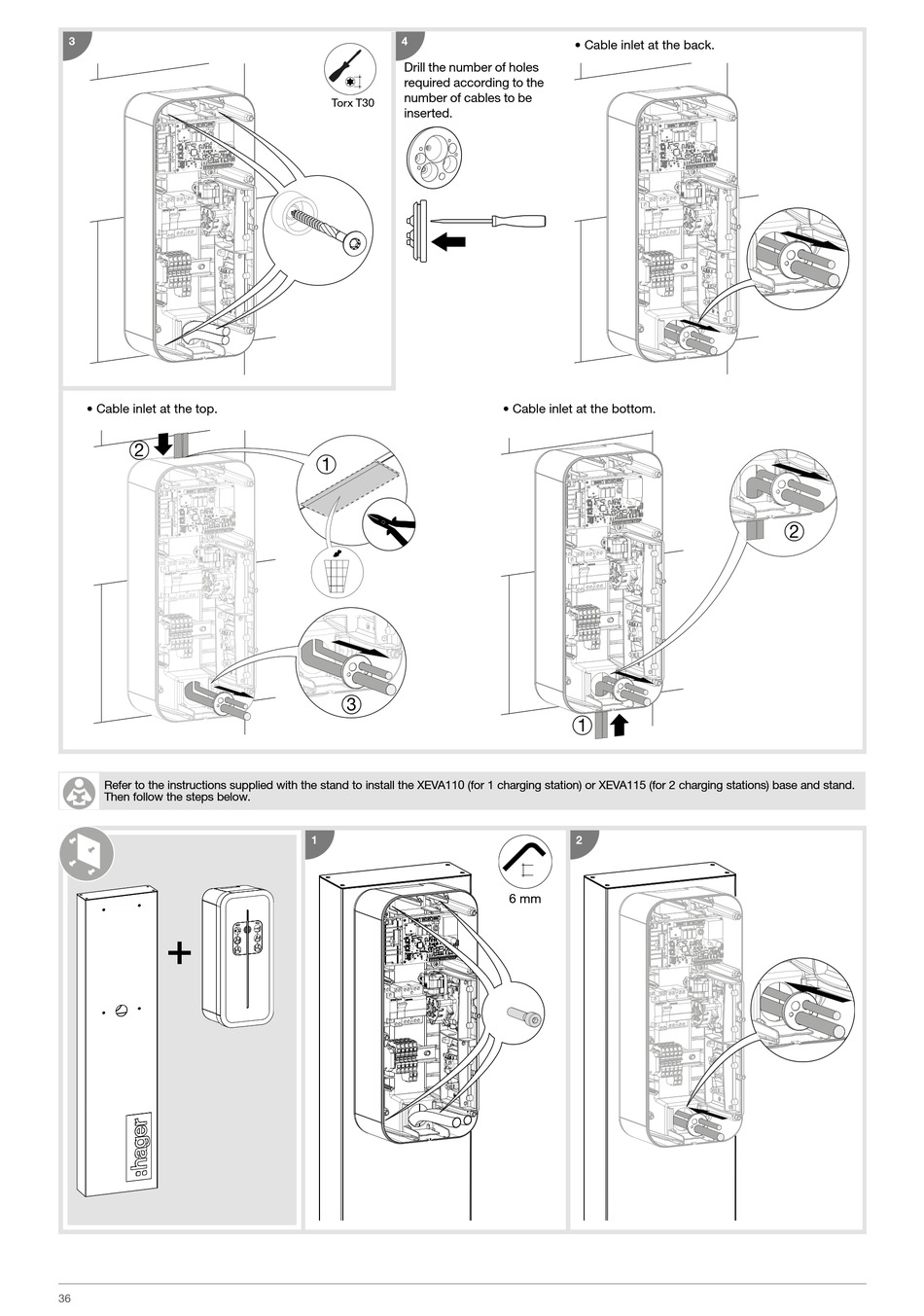

hager Witty Installationsanleitung Seite 36

3
• Cable inlet at the top.
2
Refer to the instructions supplied with the stand to install the XEVA110 (for 1 charging station) or XEVA115 (for 2 charging stations) base and stand.
Then follow the steps below.
+
36
4
Drill the number of holes
required according to the
number of cables to be
Torx T30
inserted.
1
3
1
• Cable inlet at the back.
• Cable inlet at the bottom.
1
2
6 mm
2
