9. Wiring deferred charging

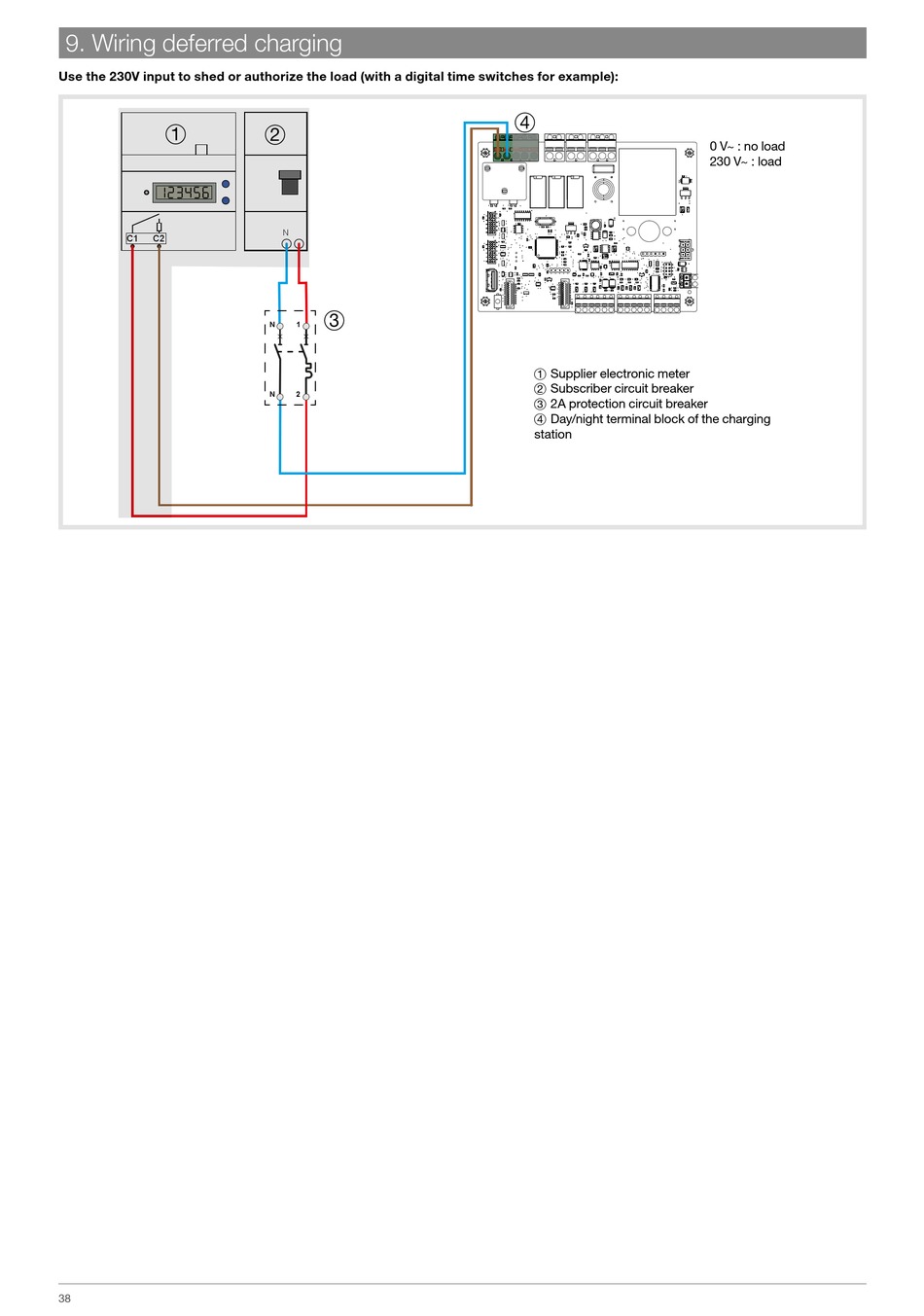

Use the 230V input to shed or authorize the load (with a digital time switches for example):
1
C1 C2
38
2
N
3
N 1
N 2
4
1 Supplier electronic meter
2 Subscriber circuit breaker
3 2A protection circuit breaker
4 Day/night terminal block of the charging
station
0 V~ : no load
230 V~ : load
